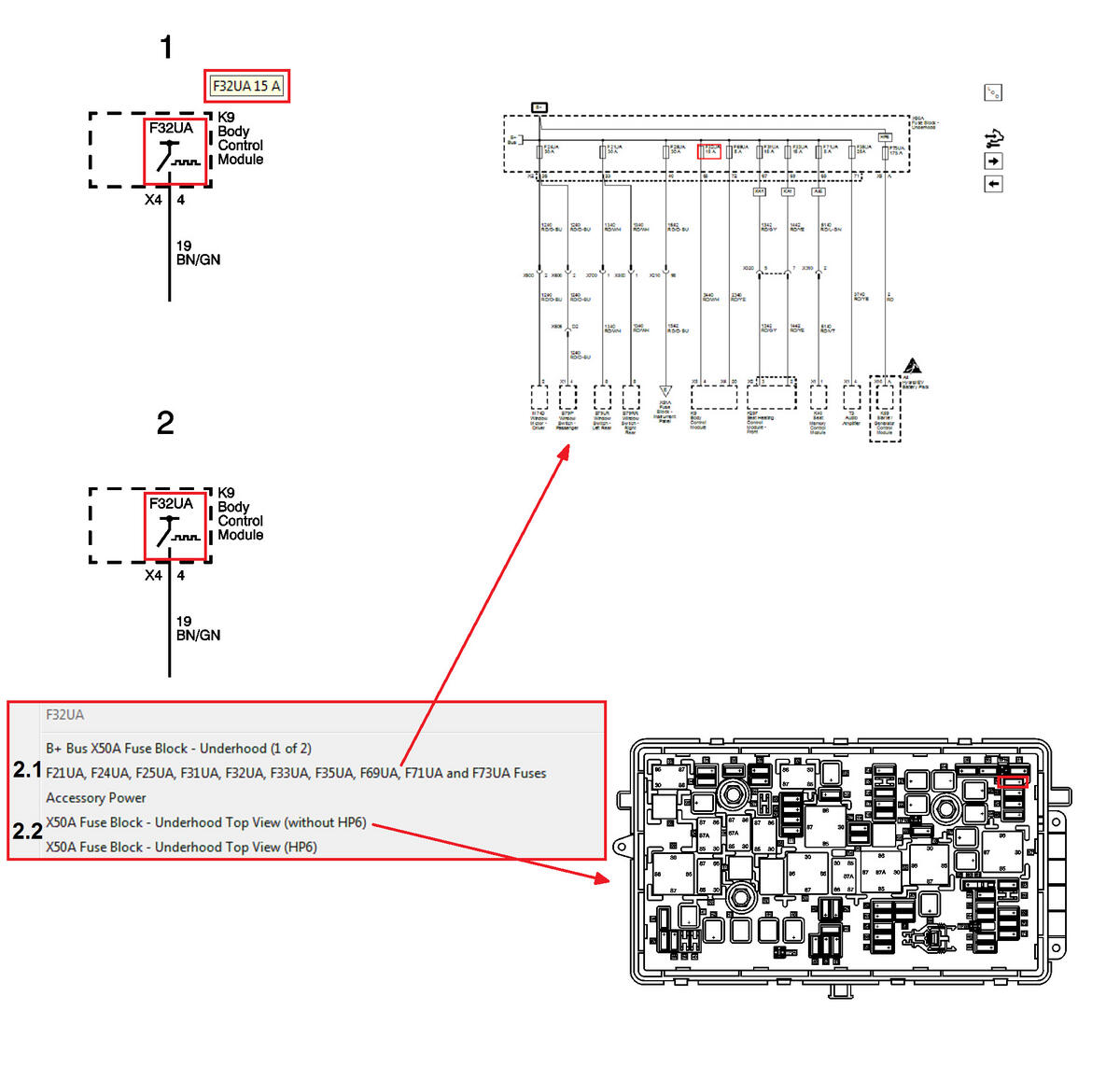

Body Control Module High-Side Driver Output Symbol/Driver Source Fuse Name in Subsystem Schematics

GM3819026Courtesy of GENERAL MOTORS COMPANY
  1. Mouse-over:  Displays the code of the protection device that supplies the high-side driver output circuit.
  2. Hotspot Link to Information:
    • When multiple links are available, a menu will appear when the link is selected. This menu includes all available links in a structured sequence.
    1. Links to the individual schematic page(s) within the Power Distribution Schematics where the circuits are shown in detail. Additionally, when the target schematic is opened, the circuit protection device will be highlighted to draw visual attention.
    2. Links to individual fuse block top or bottom view(s) within the Electrical Center Identification Views and will show where the device is located in the fuse block. Additionally, when the target view is opened, the device outline will be highlighted for visual attention.
