Rear Closure Hands Free Sensor Replacement (Lower)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Underbody Rear Air Rear Deflector Replacement

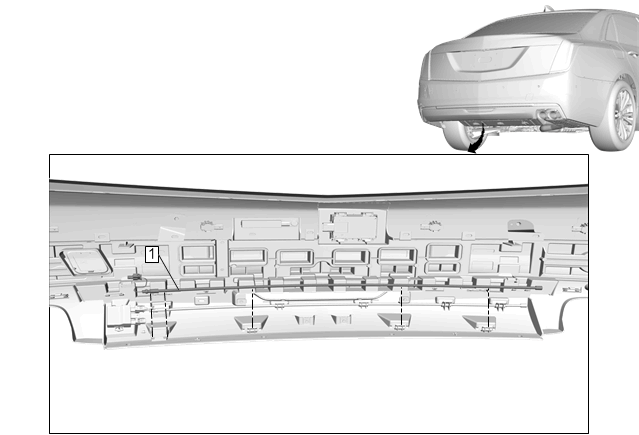

1	Rear Closure Hands Free Sensor Procedure Disconnect the electrical connector. Disengage the wire at the connector, disengage opposite end, then pull back on each tab, and apply slight force on sensor to push the sensor out of the tabs and remove.

Callout

Component Name

Rear Closure Hands Free Sensor

Procedure

Disconnect the electrical connector.
Disengage the wire at the connector, disengage opposite end, then pull back on each tab, and apply slight force on sensor to push the sensor out of the tabs and remove.
