Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

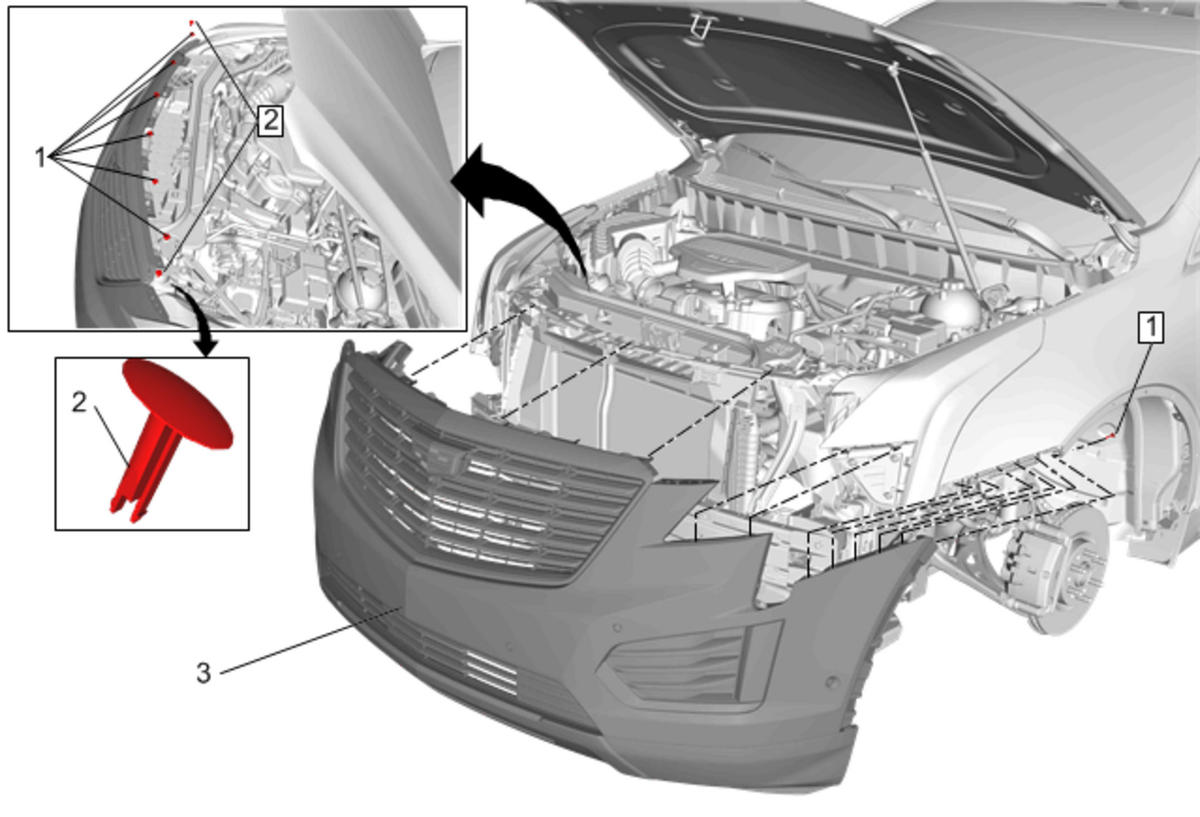

  2. GM4498533Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (3) - Remove - Front Bumper Fascia Replacement

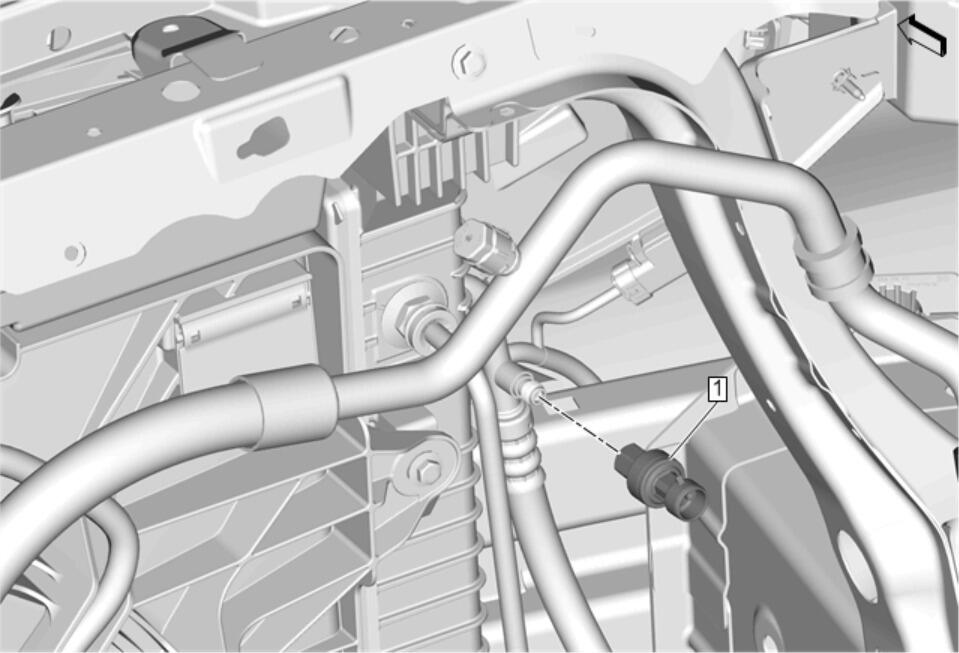

  3. GM4373951Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Refrigerant Pressure Sensor (1) - Remove - Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

  4. GM4283461Courtesy of GENERAL MOTORS COMPANY

    Remove the drive belt from the generator pulley only. (1) - Drive Belt Replacement

  5. GM4288970Courtesy of GENERAL MOTORS COMPANY

    Protective Cap (3) - Remove

  6. Battery Positive Cable Nut (2) @ Generator - Remove
  7. Battery Positive Cable (1) - Remove
  8. Electrical Connector (4) - Disconnect
  9. GM4295383Courtesy of GENERAL MOTORS COMPANY

    Drive Belt Idler Pulley (2) - Remove - Drive Belt Idler Pulley Replacement

  10. GM4310677Courtesy of GENERAL MOTORS COMPANY

    Generator Bolt (1) - Remove [2x]

  11. Generator (2) - Remove
