Inspection Procedure
 Courtesy of GENERAL MOTORS COMPANY
|

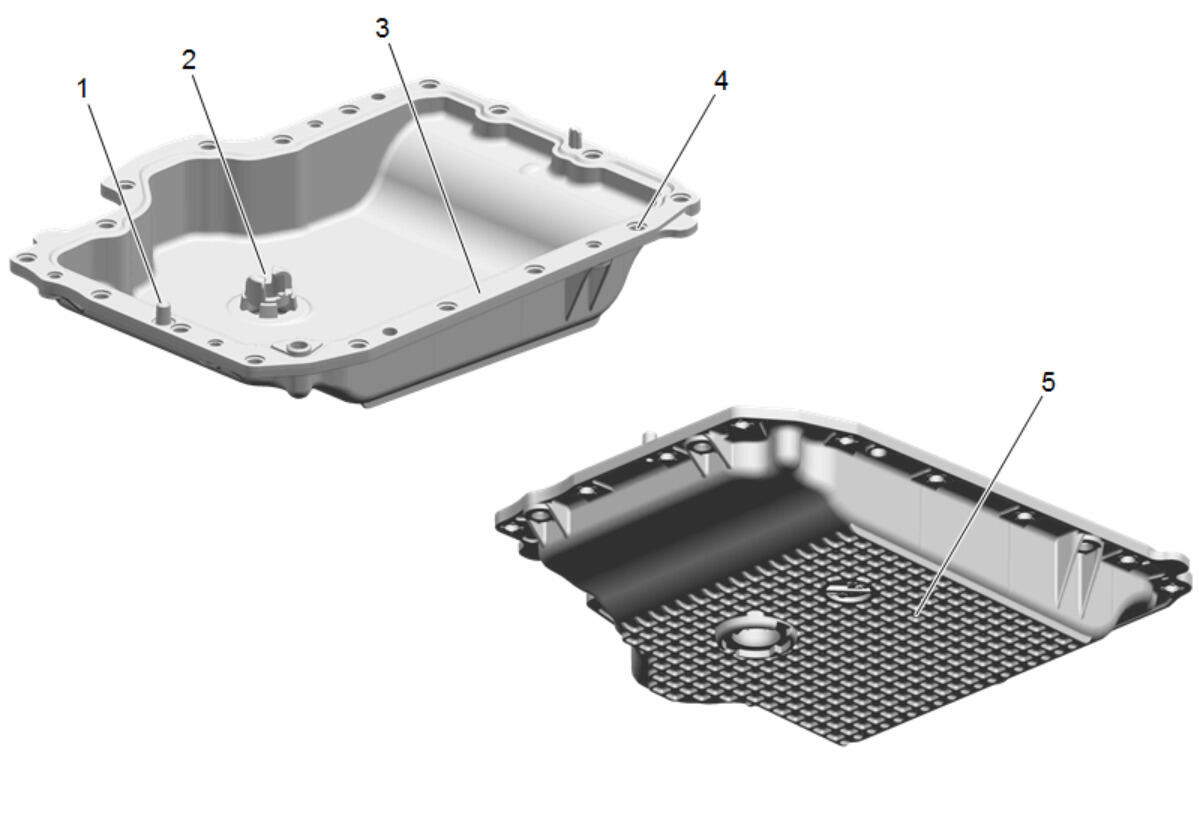

Inspect the oil pan for the following conditions:
- Damage to the brace mounting bosses (1)
- Damage to the oil pan drain plug hole (2)
- Gouges or damage to the oil pan sealing surfaces (3)
- Damage to the oil pan mounting holes (4)
- Repair or replace the oil pan or oil pan components as necessary.
