Removal Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

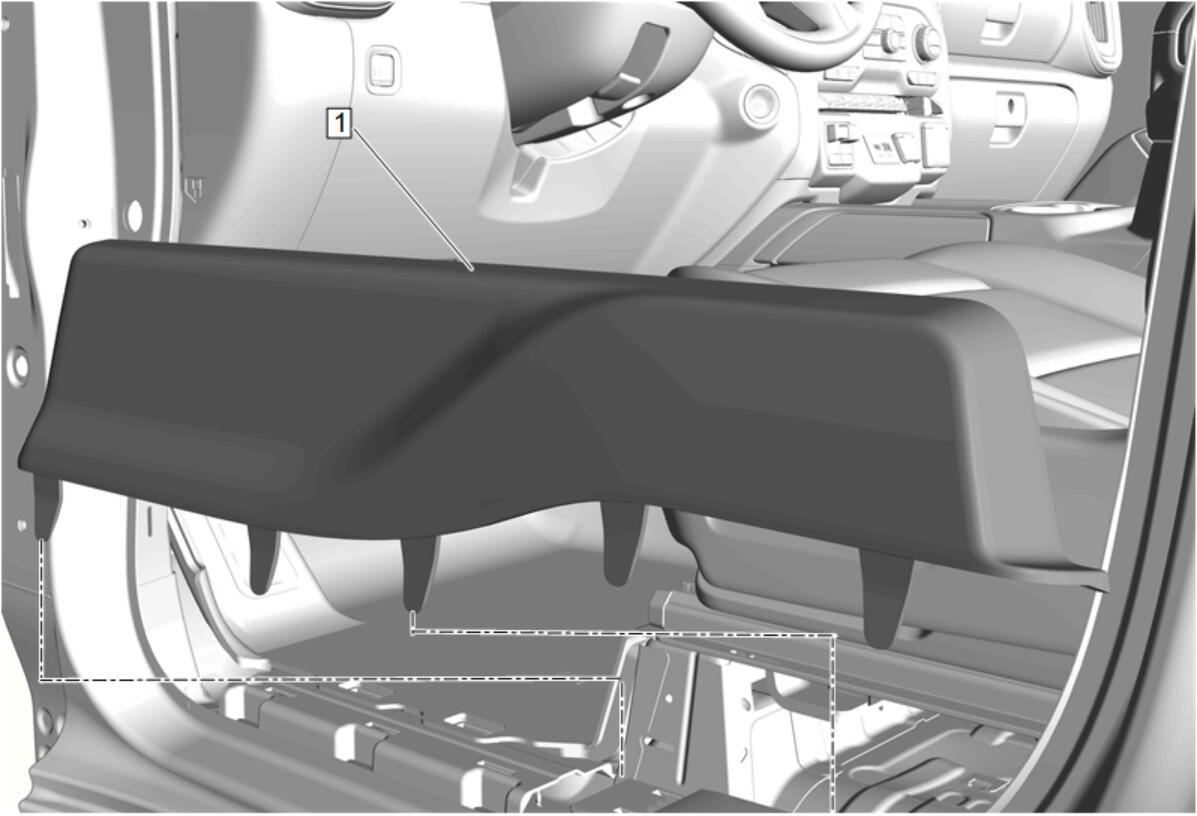

Using a suitable plastic trim tool, gently pry upwards to release the retaining clips.
- Front Seat Adjuster Track Finish Cover (1) - Remove

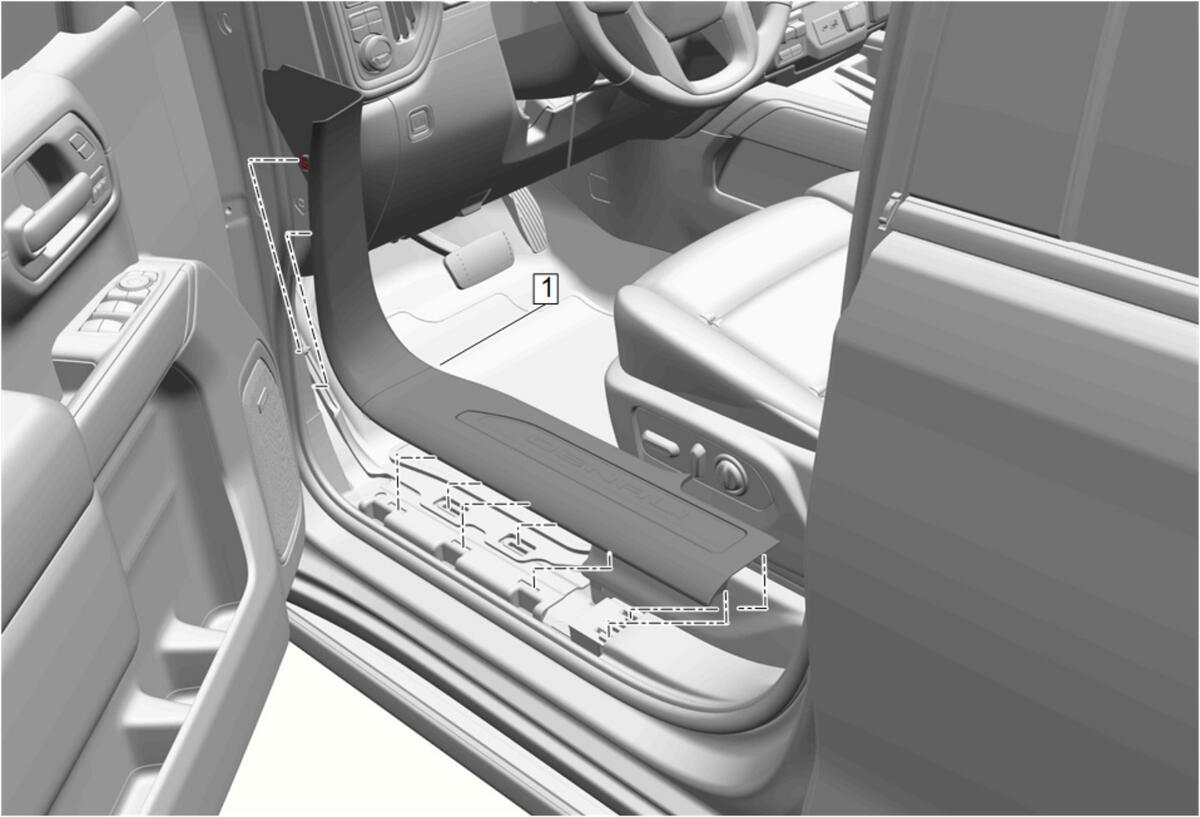

Starting at the rear of the garnish molding (1), pull upward at the B-Pillar joint to release the up/down clips first.
- Rotate the sill garnish molding (1) inboard after releasing up/down clips and pull rearward to disengage the two clips on the forward vertical wall.
- Front Side Door Sill Garnish Molding (1) - Remove

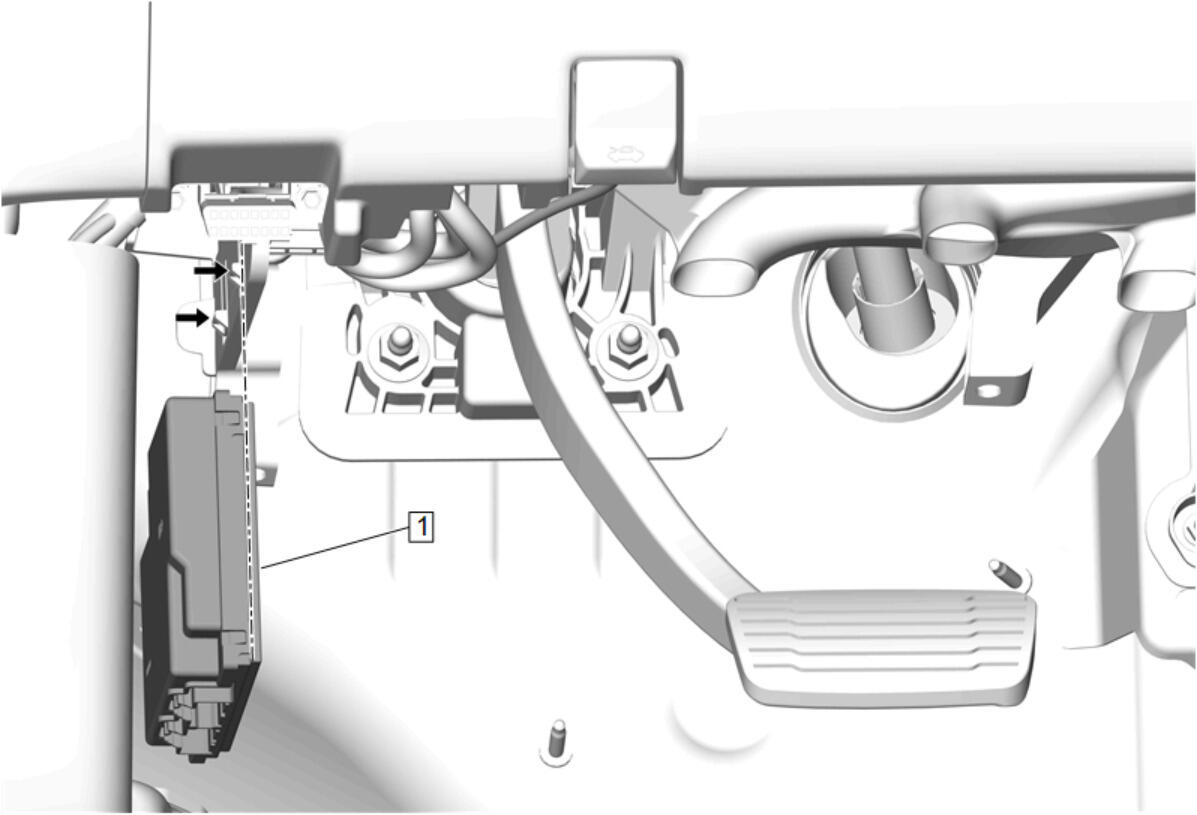

Disconnect the electrical connectors.
- Release the retaining tabs.
- Keyless Entry Control Module (1) - Remove
