Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

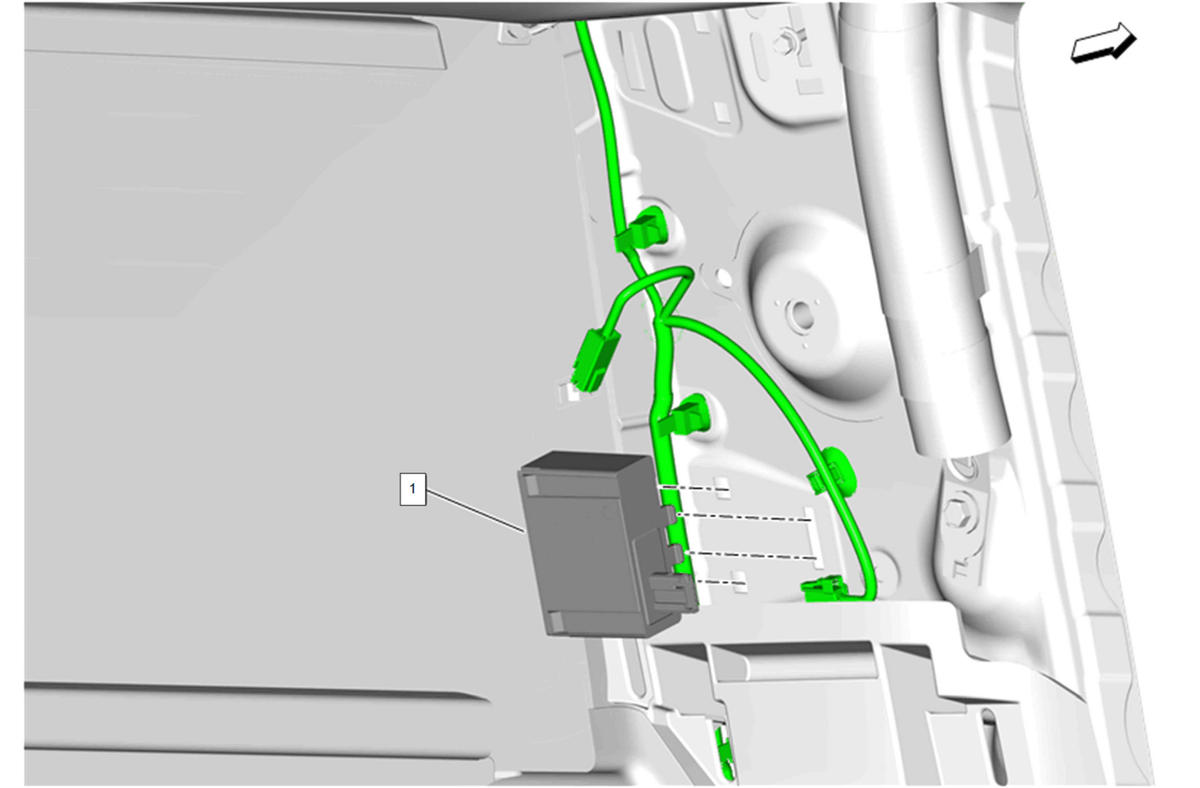

Remote Function Actuator Module (1) - Install
- Secure the retaining tabs.
- Connect the electrical connector.
Ensure the seat belt webbing in not caught by panel clip tower and is in front of it.

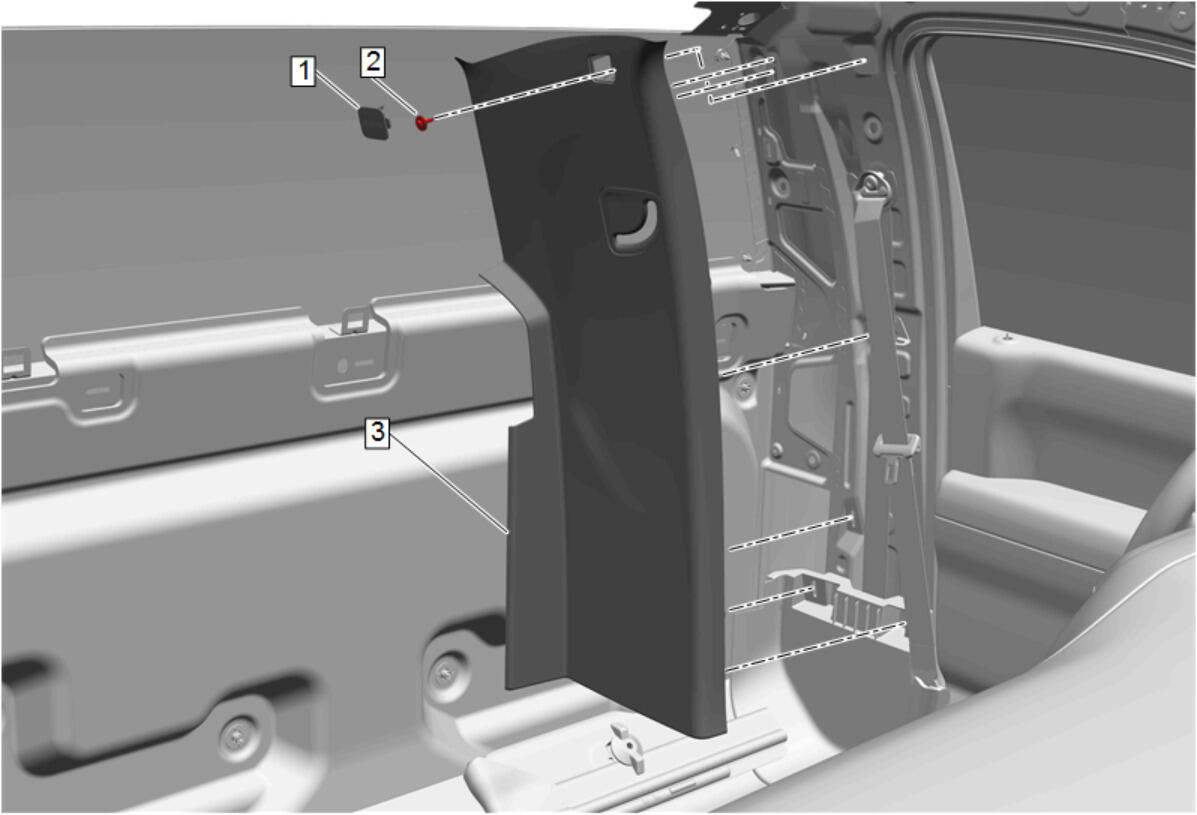

- Body Lock Pillar Garnish Molding (3) - Install
- Body Lock Pillar Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
- Center Pillar Upper Trim Panel Bolt Cap (1) - Install

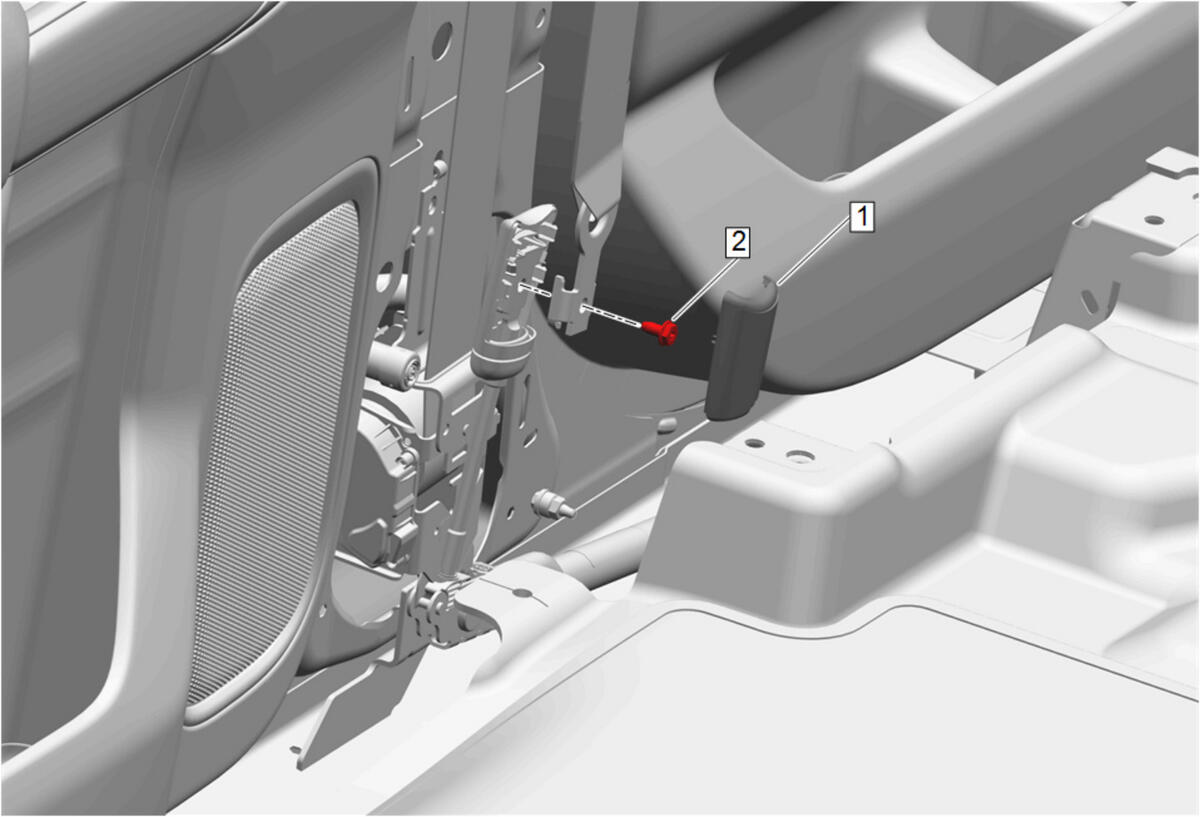

Front Seat Belt Anchor Plate Tensioner Bolt (2) - Install and tighten - Fastener Specifications
- Front Seat Belt Anchor Plate Tensioner Cover (1) - Install

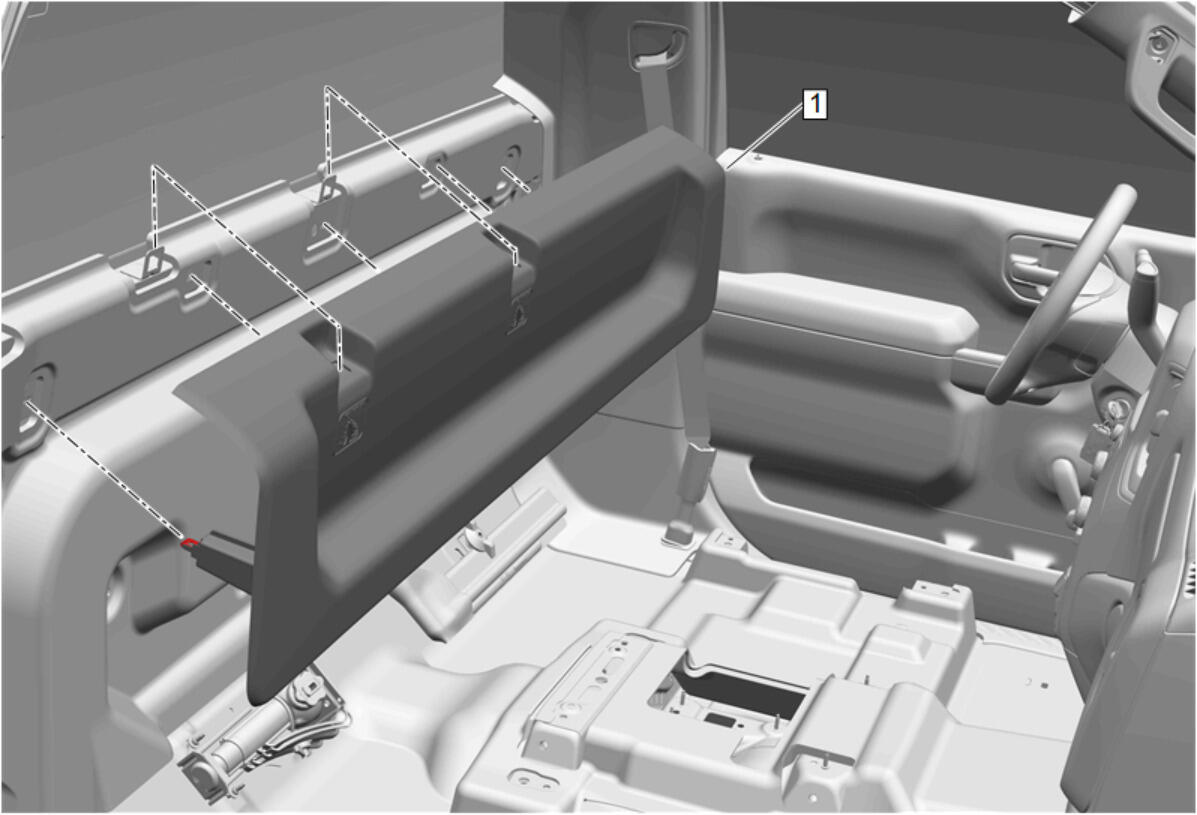

Rear Window Lower Garnish Molding (1) - Install
- Return the seat to its original position.
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
