Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Remove the oil fill cap.

Courtesy of GENERAL MOTORS COMPANY
Lift up on the front of the intake manifold cover. (1)
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using an appropriate tool, rotate the drive belt tensioner (1) counterclockwise and hold tension.
Courtesy of GENERAL MOTORS COMPANY

Accessory Drive Primary Belt (1) - Remove
Slowly release tension on the drive belt tensioner.
Courtesy of GENERAL MOTORS COMPANY

Retainer Spring (1) - Release
Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose Bracket Bolt (1) - Remove
Radiator Inlet Hose Bracket (2) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Intake manifold is shown transparent for graphic clarity.

Battery Positive Cable Nut (1) @ Generator - Remove
Auxiliary Generator Battery Jumper Cable (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Remove the upper generator bolt (1).
Loosen the lower generator bolt (2) until it is disengaged from the generator bracket.
Courtesy of GENERAL MOTORS COMPANY

Remove the generator (1).
Courtesy of GENERAL MOTORS COMPANY

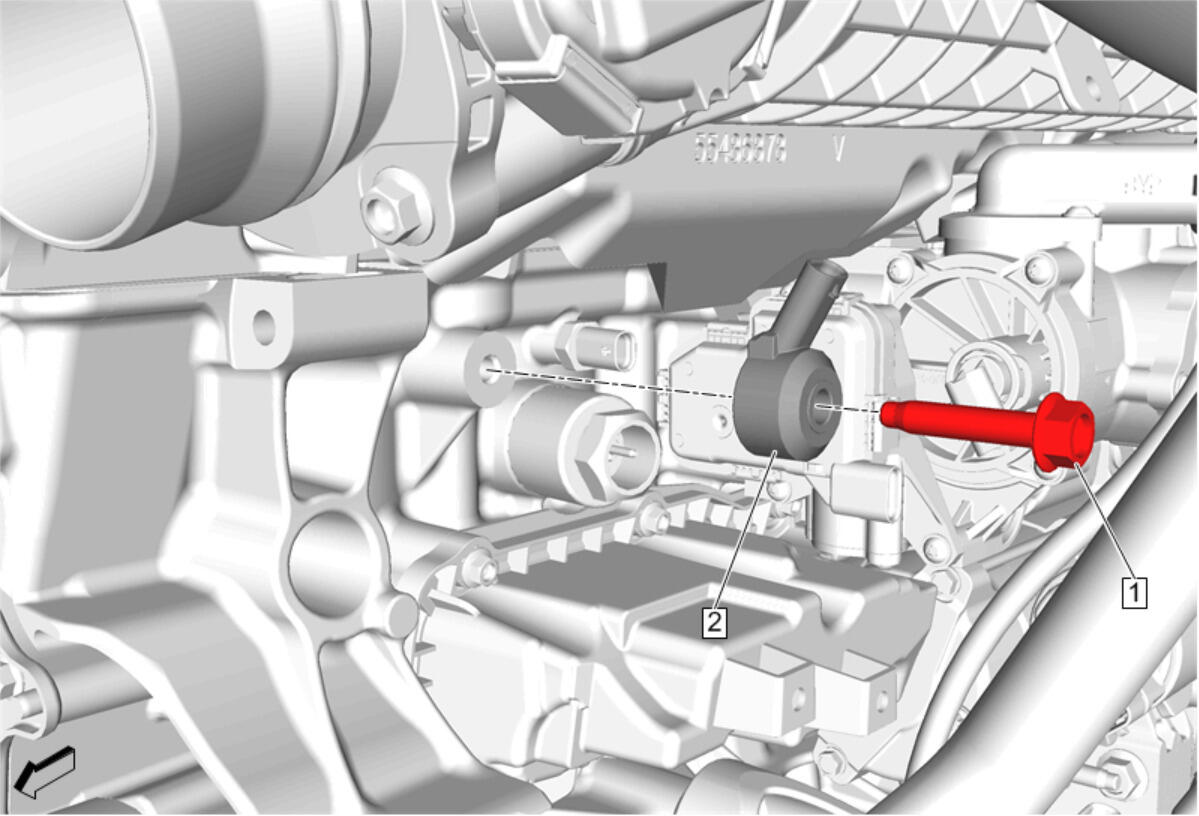

Knock Sensor Bolt (1) - Remove
Disconnect the electrical connector.
Knock Sensor (2) - Remove
