Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

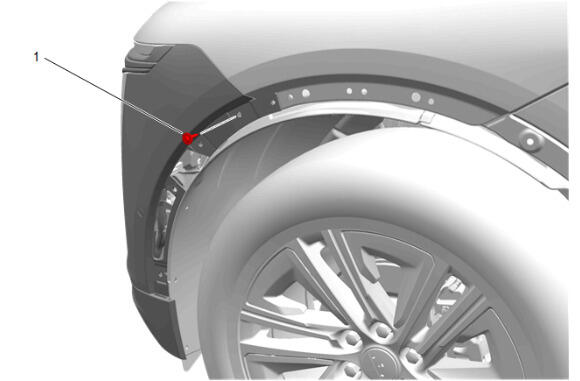

Front Bumper Fascia Bolt (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

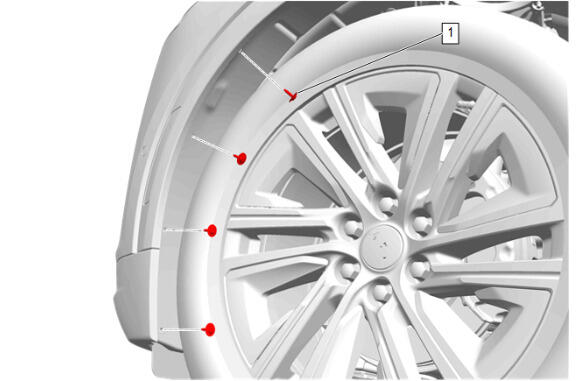

Front Wheelhouse Liner Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

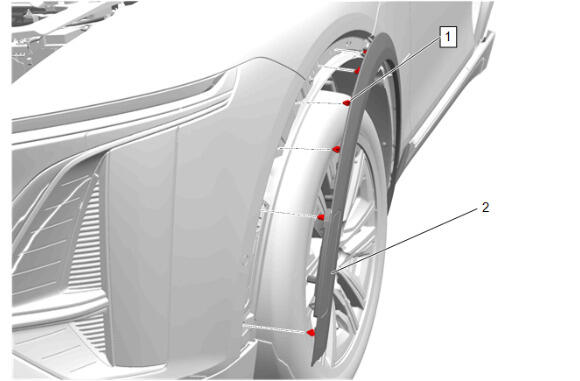

Front Wheel Opening Molding Retainer (1) - Install [6x]
Front Wheel Opening Molding (2) - Install
Remove the double layer of masking tape around the perimeter of the painted surfaces.
With a clean towel, use a 50/50 mixture of isopropyl alcohol and clean drinking water to remove any left over adhesive residue from the masking tape.
