Installation Procedure

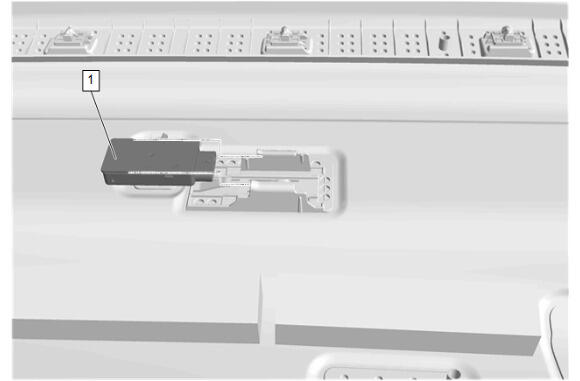

  1. GM5951970Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install

  2. Secure the retaining tab.
  3. Connect the electrical connector.
  4. GM5963630Courtesy of GENERAL MOTORS COMPANY
  5. Headlining Trim Panel (1) - Install
  6. GM5951675Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connectors.

  7. Ensure the seat belt webbing does not become trapped during installation.
  8. Quarter Window Trim Finish Panel - Left Side and Right Side (3) - Install [2x]
    9. CAUTION:

    Refer to Fastener Caution .

  9. Quarter Window Trim Finish Panel Bolt - Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  10. Quarter Window Trim Finish Panel Bolt Cap - Left Side and Right Side (1) - Install [4x]
  11. GM5951832Courtesy of GENERAL MOTORS COMPANY

    Luggage Shade (1) - Install

  12. Fold the rear seat to the full upward position.
  13. GM5950710Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Roof Rail Rear Assist Handle - Left Side and Right Side (1) - Install [2x]

  14. GM5950711Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Roof Rail Rear Assist Handle Bolt (2) - Install and tighten [4x] - Fastener Specifications

  15. Close the assist handle covers (1).

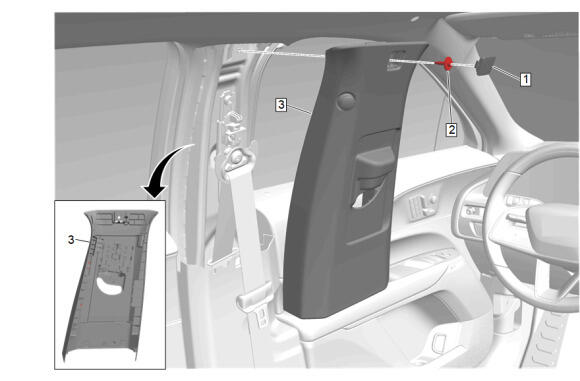

  16. GM5951533Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Center Pillar Upper Trim Panel - Left Side and Right Side (3) - Install [2x]

  17. Center Pillar Upper Garnish Molding Bolt - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  18. Center Pillar Upper Trim Panel Bolt Cap - Left Side and Right Side (1) - Install [2x]

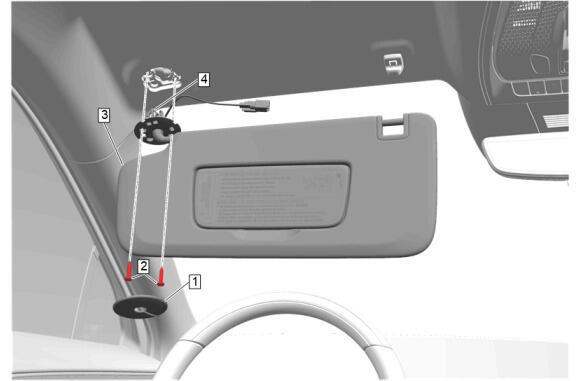

  19. GM5950747Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connectors.

  20. Install the retainer (4) that attaches the sunshade (3) to the headlining trim panel.
  21. Sunshade - Left Side and Right Side (3) - Install [2x]
  22. Sunshade Bolt - Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  23. Sunshade Retainer Bolt Cover - Left Side and Right Side (1) - Install [2x]

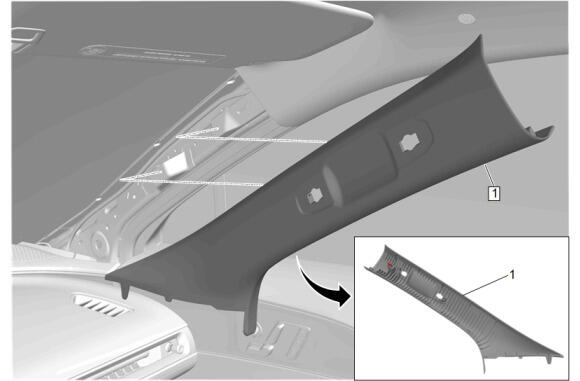

  24. GM5951446Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding - Right Side (1) - Install

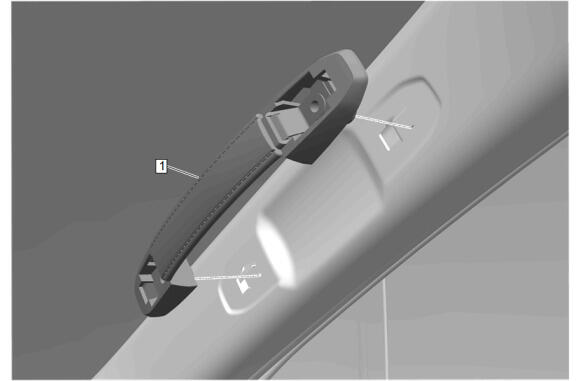

  25. GM5950708Courtesy of GENERAL MOTORS COMPANY

    Windshield Pillar Assist Handle (1) - Install

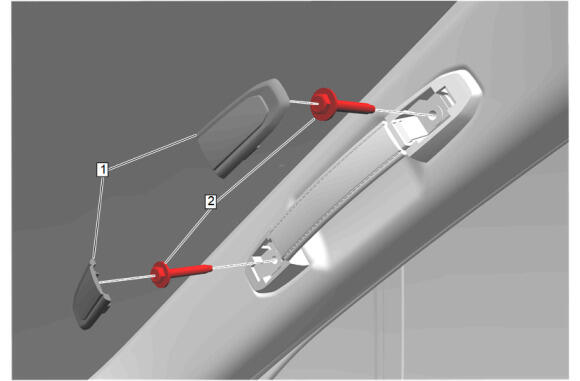

  26. GM5950709Courtesy of GENERAL MOTORS COMPANY

    Windshield Pillar Assist Handle Bolt (2) - Install and tighten [2x] - Fastener Specifications

  27. Windshield Pillar Assist Handle Cover (1) - Install [2x]

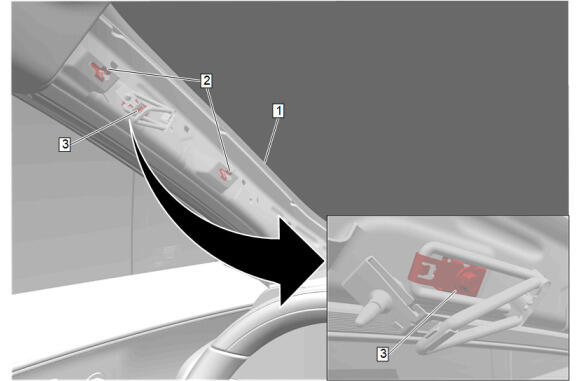

  28. GM5951192Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Bolt - Left Side (3) - Install and tighten - Fastener Specifications

  29. Align the retaining clips (2) with the slots in the A pillar and press the windshield garnish molding (1) into place.

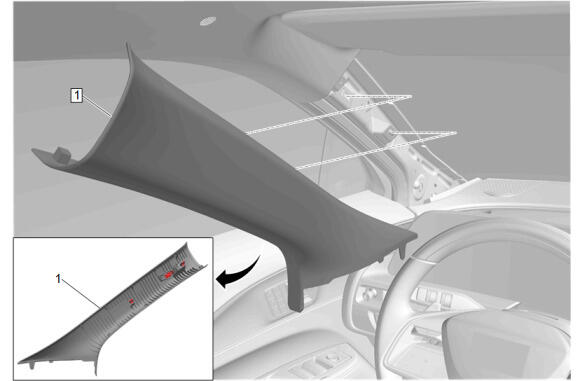

  30. GM5951193Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding - Left Side (1) - Install

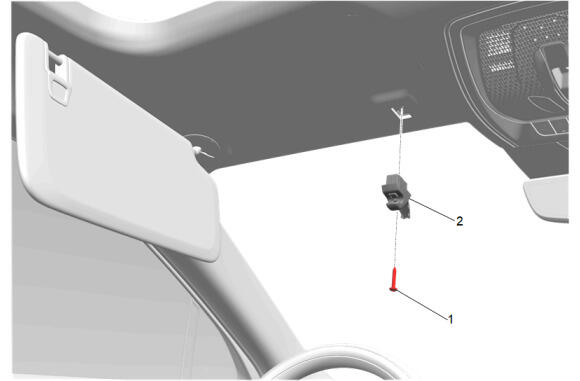

  31. GM5950972Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Sunshade Support - Left Side and Right Side (2) - Install [2x]

  32. Sunshade Support Bolt - Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications

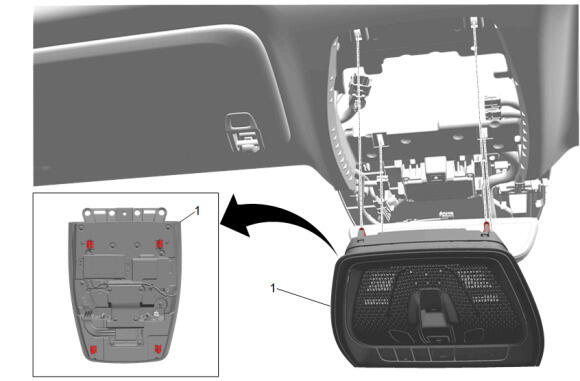

  33. GM5948807Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  34. Roof Console (1) - Install

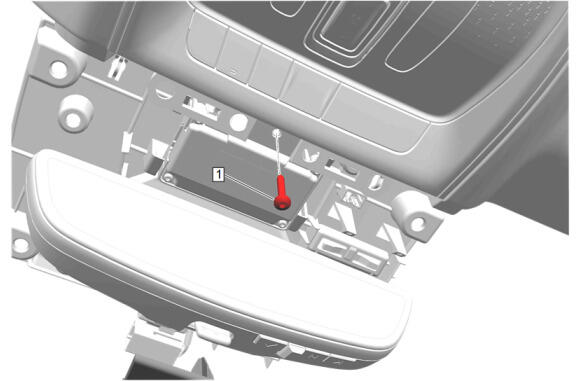

  35. GM5948808Courtesy of GENERAL MOTORS COMPANY

    Sunshade Support Bolt (1) - Install and tighten - Fastener Specifications

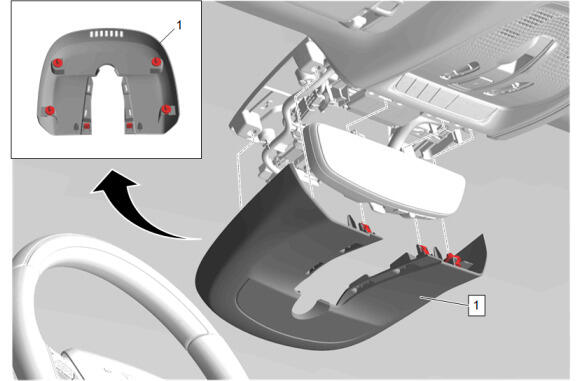

  36. GM5948810Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

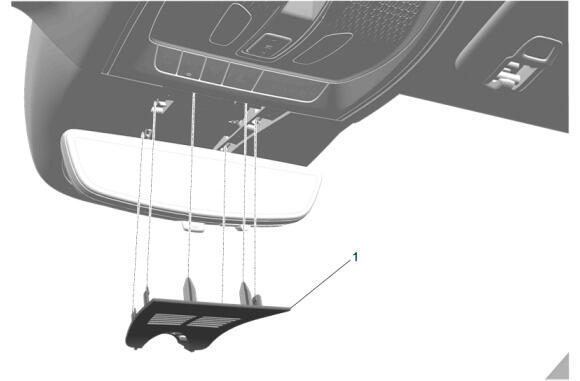

  37. GM5948809Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  38. Enable the SIR System. SIR Disabling and Enabling
