Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

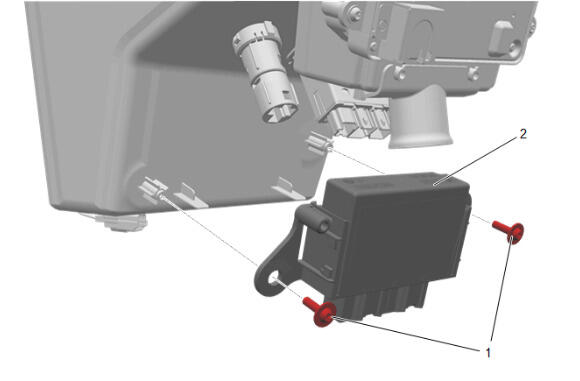

UHF Short Range Low Energy Remote Control Access Transceiver (2) - Install

CAUTION:

Refer to Fastener Caution .

UHF Short Range Low Energy Remote Control Access Transceiver Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Connect the electrical connectors.
Set the front floor console compartment (1) into front floor console carrier.
Courtesy of GENERAL MOTORS COMPANY

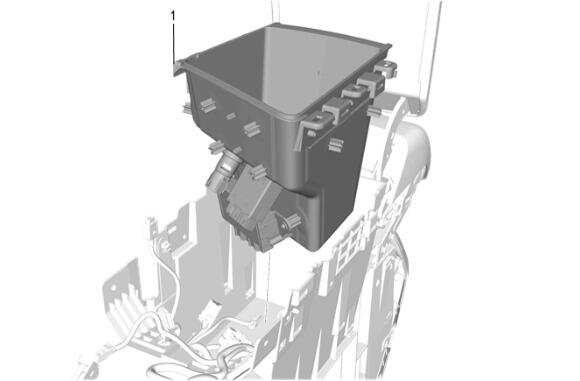

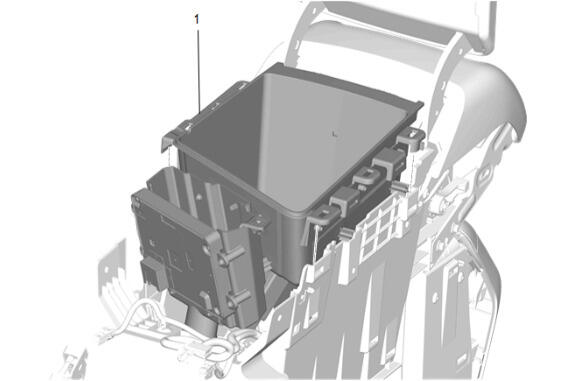

Front Floor Console Compartment (1) - Install
Courtesy of GENERAL MOTORS COMPANY

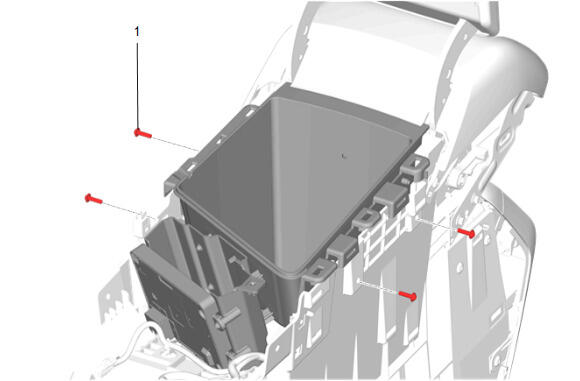

Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

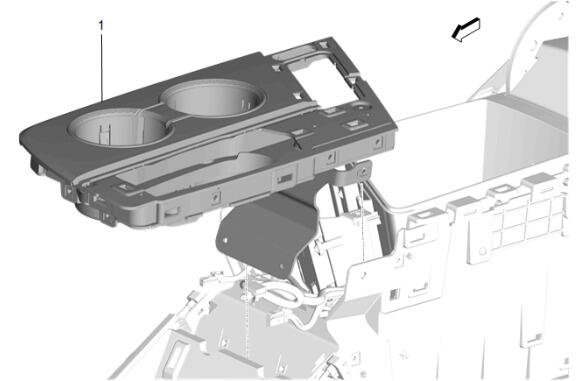

Front Floor Console Cup Holder (1) - Install
Courtesy of GENERAL MOTORS COMPANY

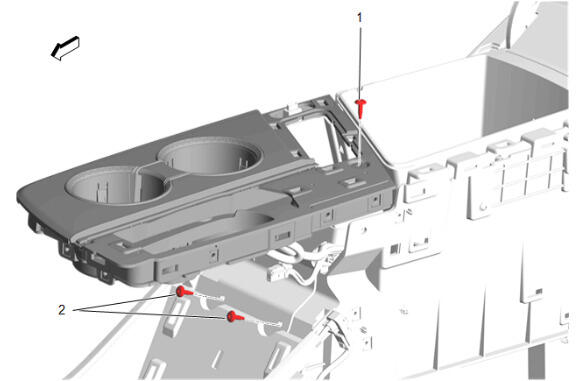

Front Floor Console Cup Holder Bolt (1) - Install and tighten - Fastener Specifications
Front Floor Console Intermediate Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Connect the audio player and USB receptacle tabs (1) to the front floor console accessory switch mount plate.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Accessory Switch Mount Plate (2) - Install
Front Floor Console Variable 1 Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

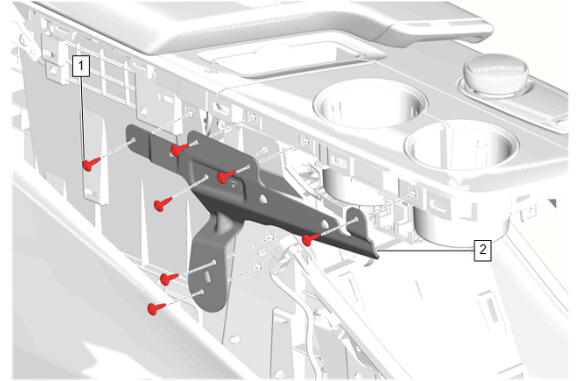

Front Floor Console Intermediate Bracket - Right Side (2) - Install
Front Floor Console Front Bracket Bolt (1) - Install and tighten [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Front Floor Console Upper Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

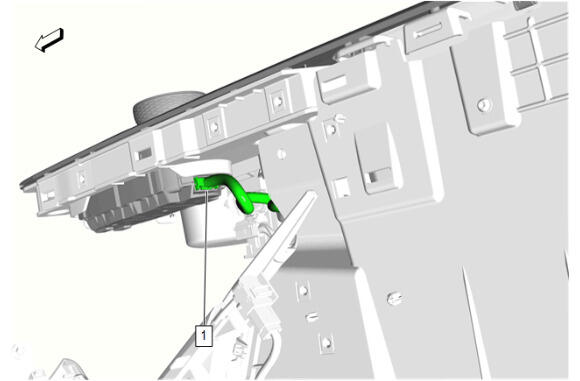

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

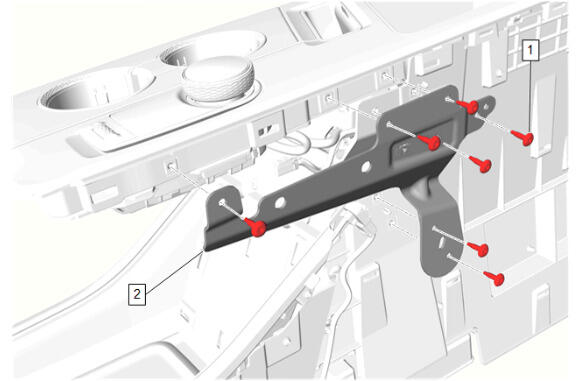

Front Floor Console Intermediate Bracket - Left Side (2) - Install
Front Floor Console Front Bracket Bolt (1) - Install and tighten [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Upper Panel Closeout (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

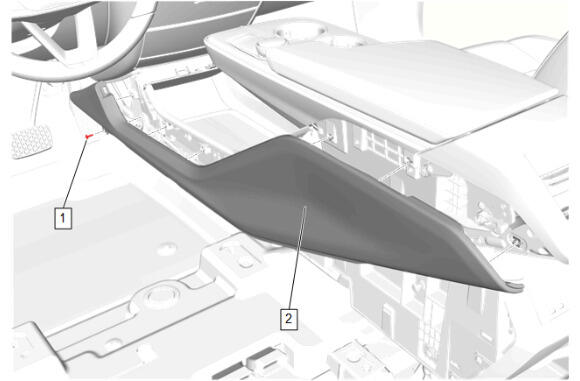

Front Floor Console Upper Panel (2) - Install
Front Floor Console Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

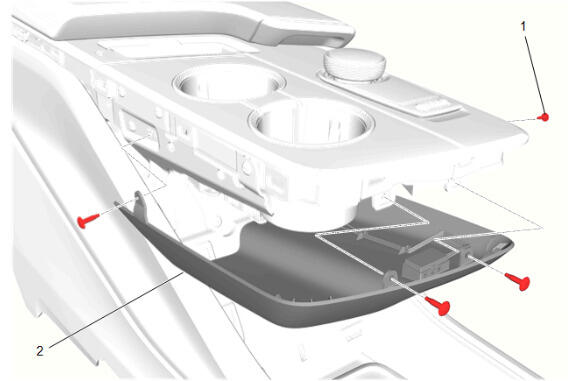

Front Floor Console Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

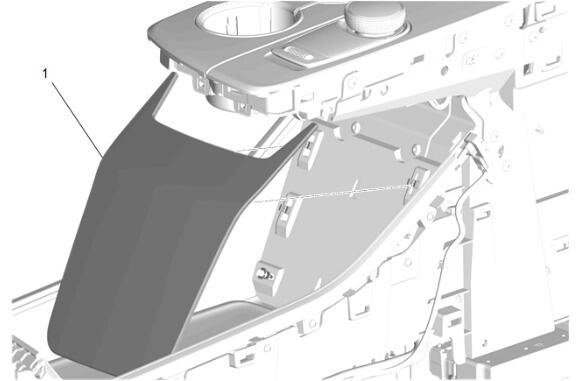

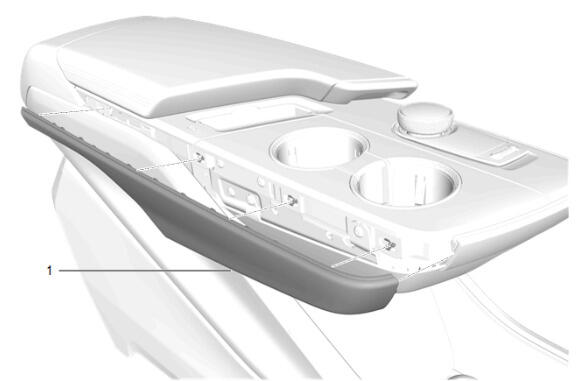

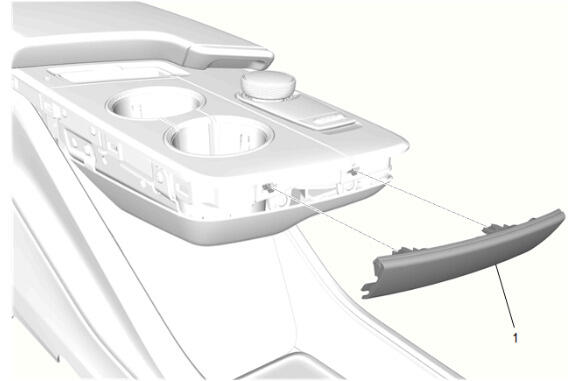

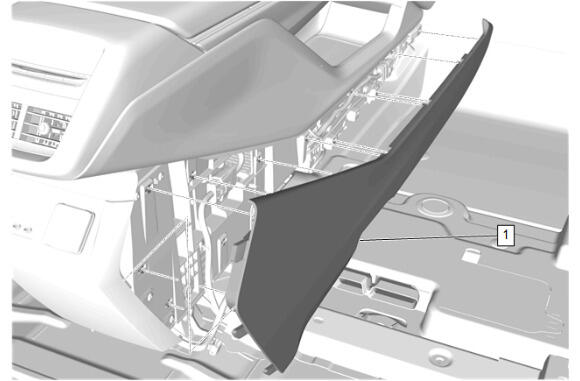

Front Floor Console Lower Applique - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

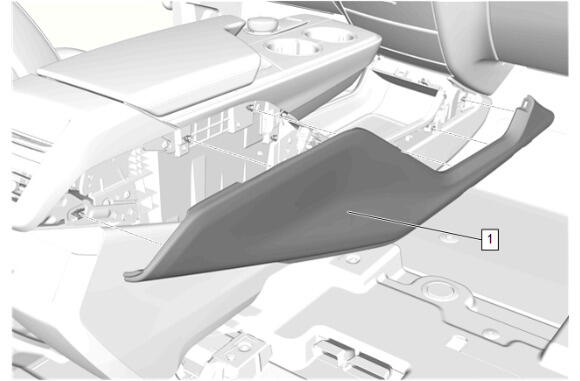

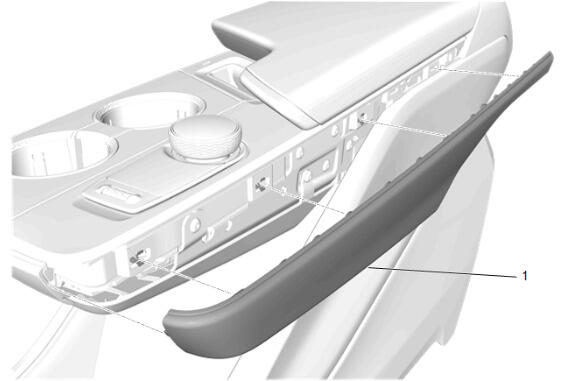

Front Floor Console Lower Applique - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

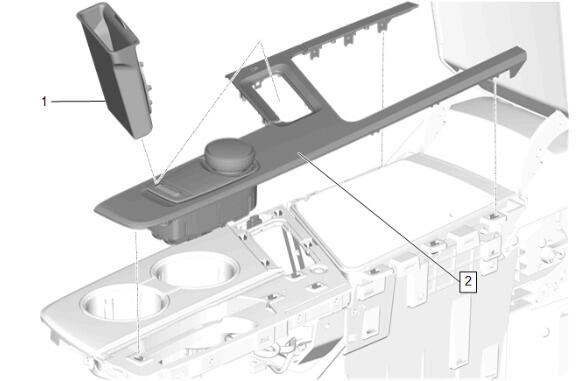

Front Floor Console Upper Panel - Left Side (2) - Install
Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Connect the multimedia receptacle to the front floor console accessory trim plate (1).
Front Floor Console Accessory Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

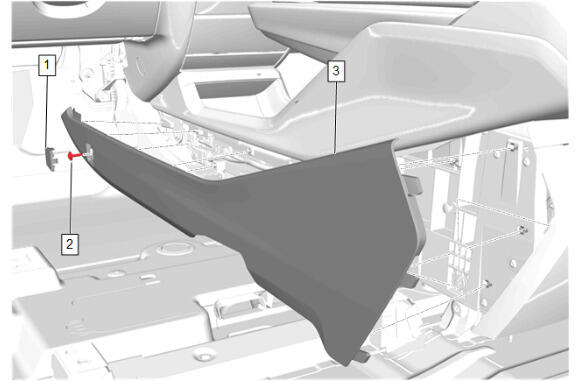

Front Floor Console Extension Panel - Left Side (3) - Install
Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

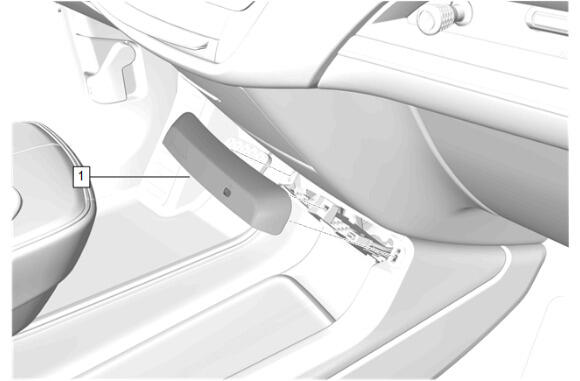

Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
