Installation Procedure
- NOTE:
Drive motor control module cooling outlet hose fitting seal is not serviceable separately.

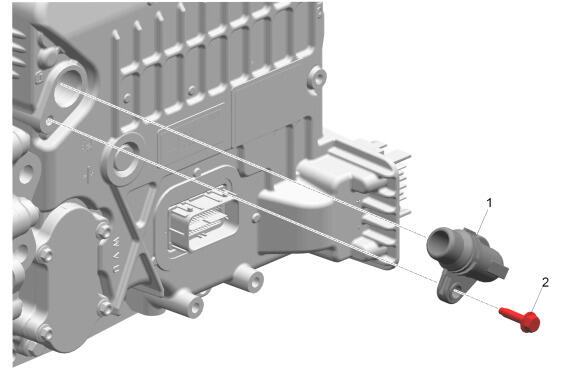

Drive Motor Control Module Cooling Inlet Hose Fitting (1) - Install
- Transmission Fluid Cooler Pipe Bolt (2) - Install and tighten - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

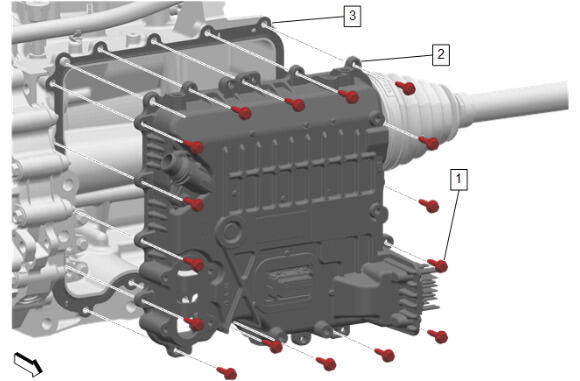

Drive Motor Power Inverter Module (2) - Install
- Drive Motor Power Inverter Module Bolt (1) - Install and tighten in sequence [16x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

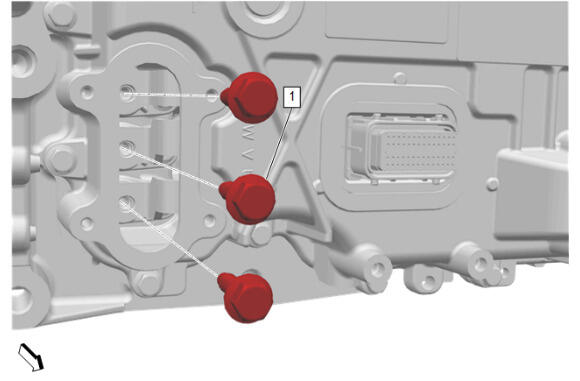

Drive Motor Power Inverter Module Connector Bolt (1) - Install and tighten [3x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

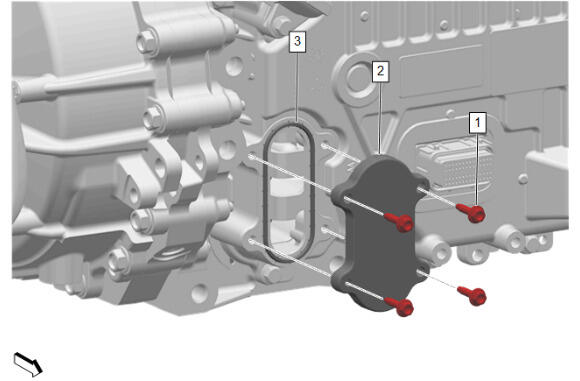

Drive Motor Power Inverter Module Cover (2) - Install
- Drive Motor Power Inverter Module Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.
Retainer (2) - Engage [2x]

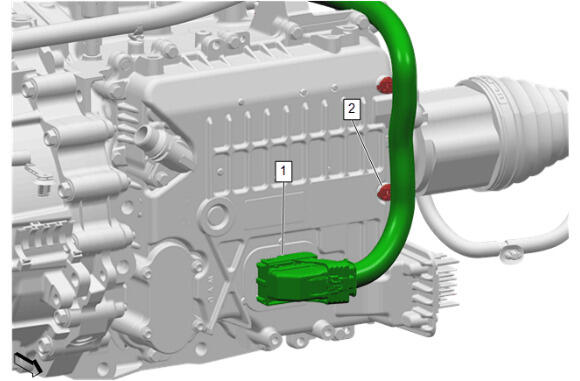

- Electrical Connector (1) - Connect
- NOTE:
Some components not shown for graphic clarity.

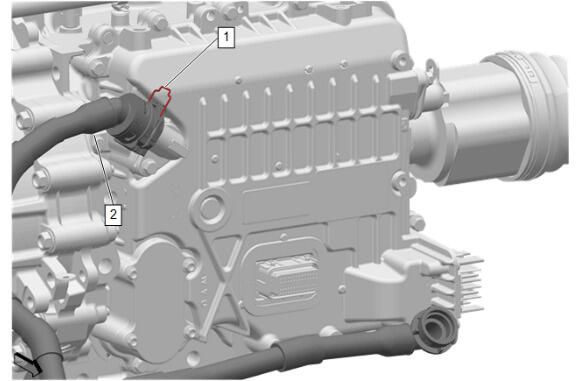

Rear Electric Drive Transmission Module Coolant Hose (2) - Install
- Retainer (1) @ Rear Electric Drive Transmission Module Coolant Hose (2) - Engage
- NOTE:
Transmission fluid cooler pipe seals are not serviceable separately.

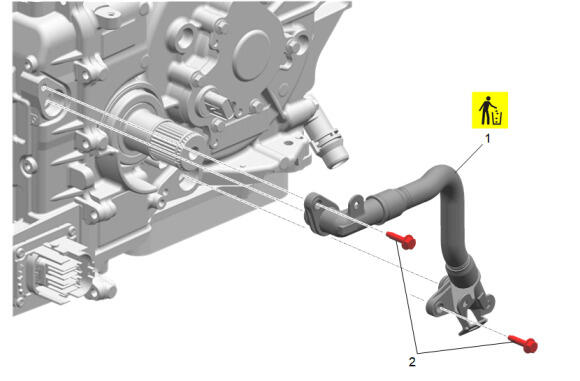

Transmission Fluid Cooler Pipe (1) - Install NEW
- Transmission Fluid Cooler Pipe Bolt (2) - Install and tighten [2x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

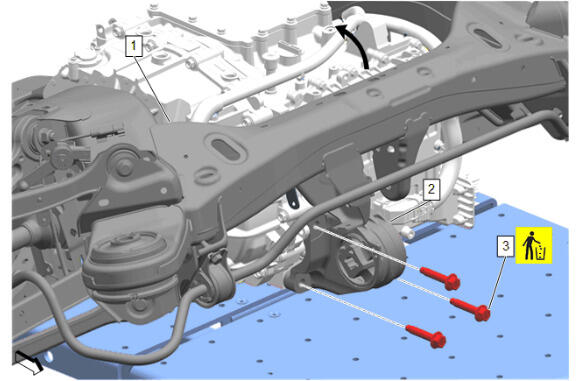

Rear Drive Motor Mount (2) Install
- Rear Drive Motor Mount Bolt (3) - Install NEW and tighten [3x] - Fastener Specifications
- Lower the overhead hoist, and rotate the rear suspension cradle (1) back into position.
- NOTE:
Some components not shown for graphic clarity.

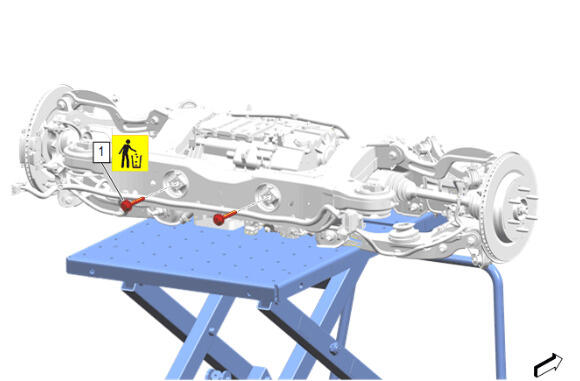

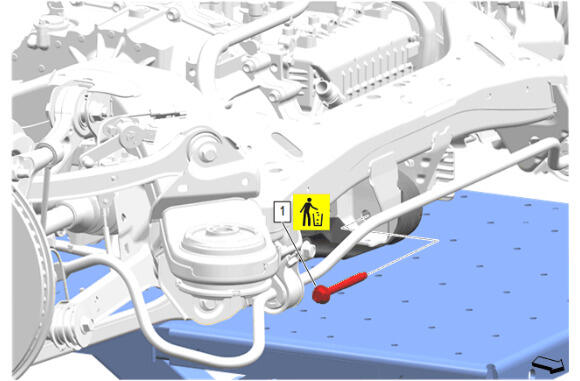

- Rear Drive Motor Mount Bolt (1) - Install NEW and tighten - Fastener Specifications
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
NOTE:Some components not shown for graphic clarity.
Rear Drive Motor Rear Mount Bolt (1) - Install NEW and tighten [2x] - Fastener Specifications

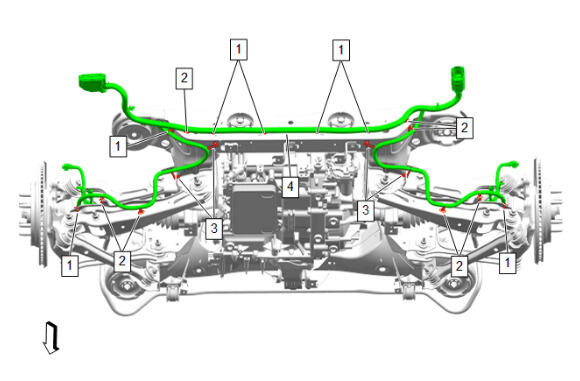

Position the rear chassis wiring harness (4) into place at the rear suspension cradle.

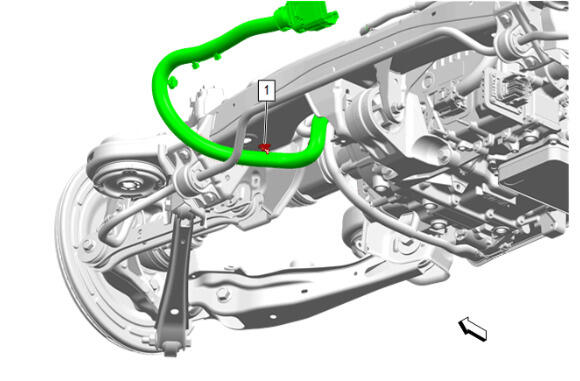

- Wiring Harness Retainer (1 - 3) @ Rear Suspension Cradle - Install

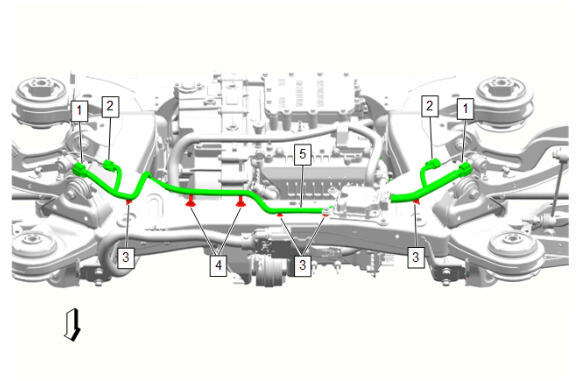

Position the front chassis wiring harness (5) into place at the rear suspension cradle.
- Connect the wiring harness retainers as necessary. (3, 4)
- Connect the electrical connectors. (1, 2)
Wiring Harness Retainer (1) @ Rear Suspension Cradle - Install

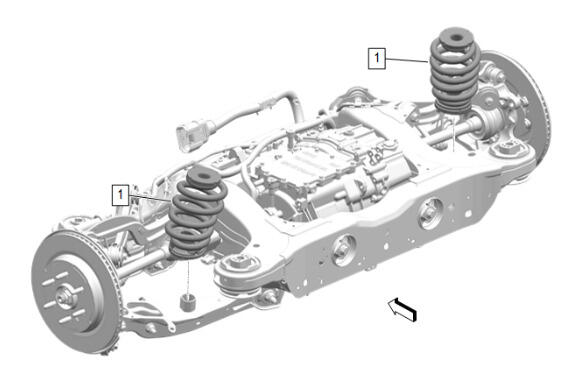

Install the 2 left and right side coil springs and insulators (1).

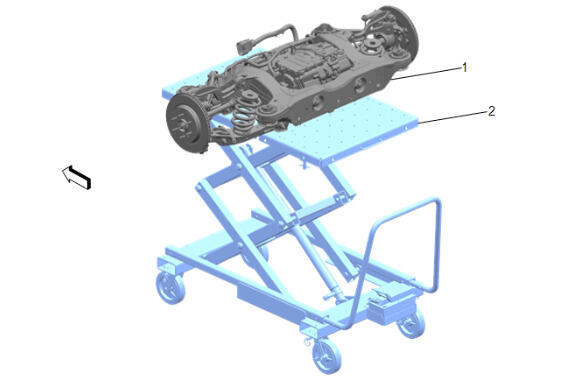

Rear Suspension Cradle (1) - Install - Rear Suspension Cradle Removal and Installation
- Run all necessary programming and setup procedures. Control Module References
Refer to Fastener Caution .
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
Quantity of retainers may vary based on option content.
Quantity of retainers may vary based on option content.
Quantity of connectors may vary based on option content.
