Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Rear Suspension Cradle (1) - Remove - Rear Suspension Cradle Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Remove the 2 left and right side coil springs and insulators (1).
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness Retainer (1) @ Rear Suspension Cradle - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of connectors may vary based on option content.

Disconnect the electrical connectors. (1, 2)

NOTE:

Quantity of retainers may vary based on option content.

Disconnect the wiring harness retainers as necessary. (3, 4)
Reposition the front chassis wiring harness (5) away from the rear suspension cradle.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of retainers may vary based on option content.

Wiring Harness Retainer (1 - 3) @ Rear Suspension Cradle - Remove
Reposition the rear chassis wiring harness (4).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Rear Drive Motor Rear Mount Bolt (1) - Remove and DISCARD [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Rear Drive Motor Mount Bolt (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Using an overhead hoist, rotate the rear suspension cradle (1) up and back.
Rear Drive Motor Mount Bolt (3) - Remove and DISCARD [3x]
Rear Drive Motor Mount (2) Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the wiring harness retainers and reposition the harness as necessary.

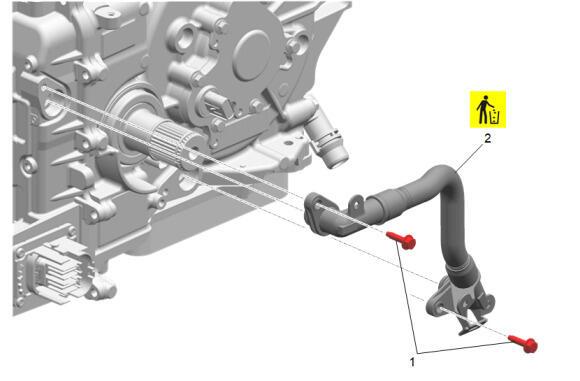

Transmission Fluid Cooler Pipe Bolt (1) - Remove [2x]

NOTE:

Transmission fluid cooler pipe seals are not serviceable separately.

Transmission Fluid Cooler Pipe (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Retainer (1) @ Rear Electric Drive Transmission Module Coolant Hose (2) - Disengage
Rear Electric Drive Transmission Module Coolant Hose (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Electrical Connector (1) - Disconnect
Retainer (2) - Disengage [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Drive Motor Power Inverter Module Cover Bolt (1) - Remove [4x]
Drive Motor Power Inverter Module Cover (2) - Remove
Inspect the drive motor power inverter module cover gasket (3) and replace if necessary.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Drive Motor Power Inverter Module Connector Bolt (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Drive Motor Power Inverter Module Bolt (1) - Remove [16x]
Drive Motor Power Inverter Module (2) - Remove
Inspect the drive motor power inverter module cover gasket (3) and replace if necessary.
Courtesy of GENERAL MOTORS COMPANY

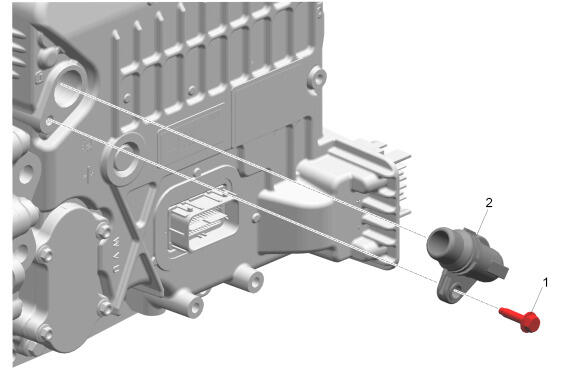

Transmission Fluid Cooler Pipe Bolt (1) - Remove

NOTE:

Drive motor control module cooling inlet hose fitting seal is not serviceable separately.
