Fastener Specifications

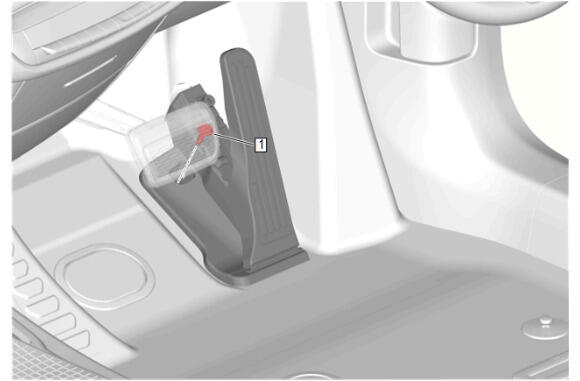

GM6473899Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal Bolt (RHD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Accelerator Pedal Bracket Bolt - - 9 N.m (80 lb in) Accelerator Pedal Replacement (RHD)

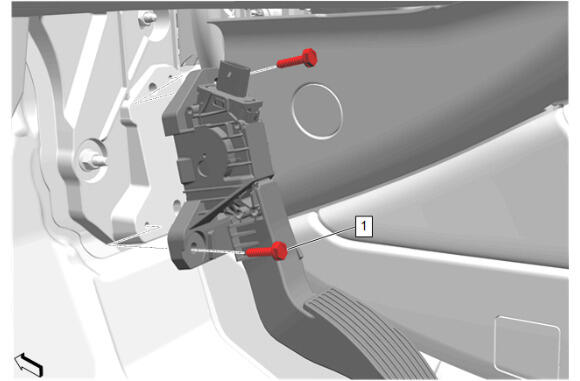

GM5969894Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal Bolts (LHD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Accelerator Pedal Lever Bolt [2x] - - 6 N.m (53 lb in) Accelerator Pedal Replacement (LHD)

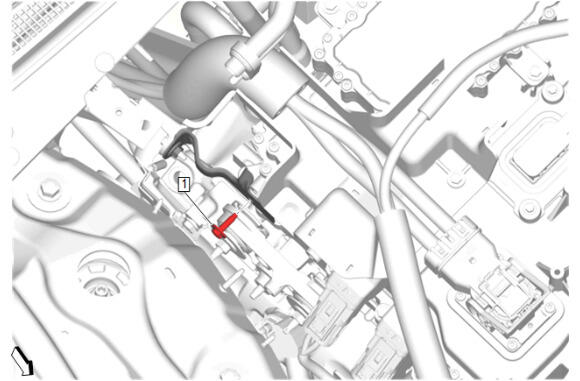

GM6740109Courtesy of GENERAL MOTORS COMPANY
Drive Motor Power Distribution Control Module Bracket Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Drive Motor Power Distribution Control Module Replacement (XFD / K28) , or Drive Motor Power Distribution Control Module Replacement (XFD / K2O / K2W)

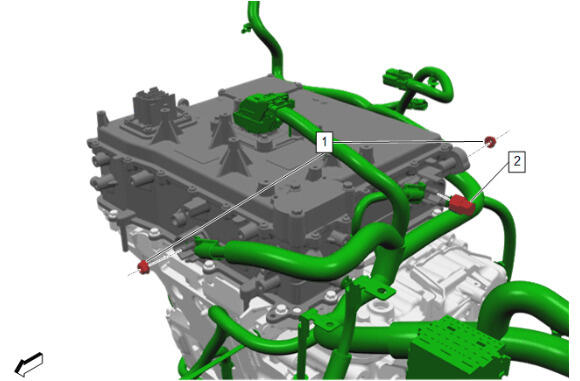

GM6271572Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Nuts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Ground Nut [2x] - - 22 N.m (16 lb ft) Drive Motor Power Distribution Control Module Replacement (XFD / K28) , or Drive Motor Power Distribution Control Module Replacement (XFD / K2O / K2W)
2 Engine Wiring Harness Battery Lead Nut - - 22 N.m (16 lb ft) Drive Motor Power Distribution Control Module Replacement (XFD / K28) , or Drive Motor Power Distribution Control Module Replacement (XFD / K2O / K2W)

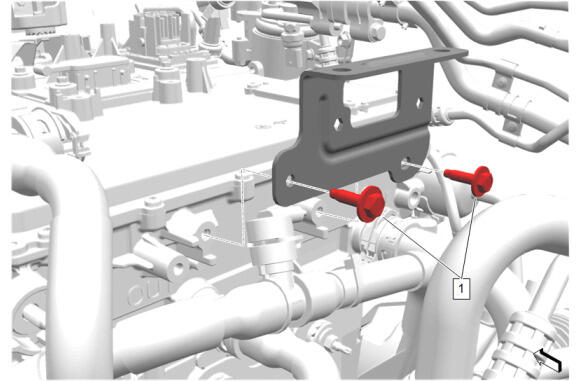

GM6596062Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Heater Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Heater Bracket Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Power Distribution Control Module Replacement (XFD / K28) , or Drive Motor Power Distribution Control Module Replacement (XFD / K2O / K2W)

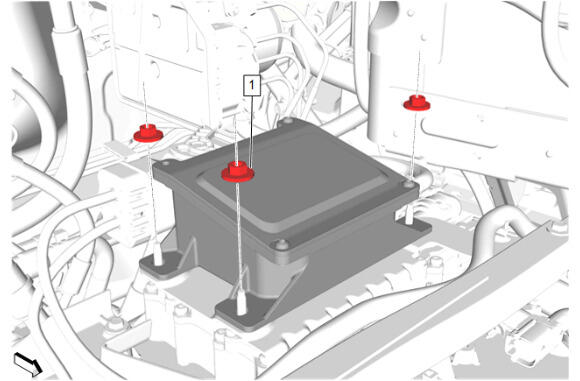

GM6074054Courtesy of GENERAL MOTORS COMPANY
Hybrid/Electric Vehicle Battery Cut-Off Actuator Nuts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module Pyro Switch Nut [3x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Battery Cut-Off Actuator Replacement
