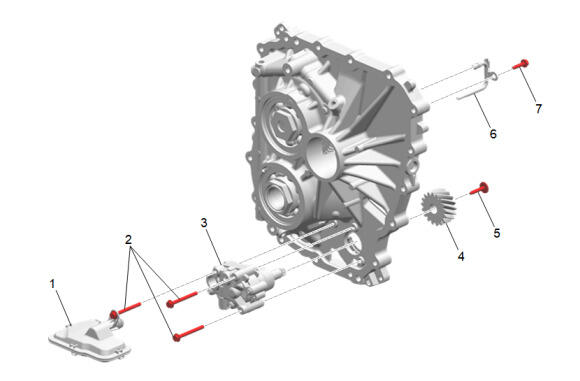

Center Support Components
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Fluid Filter |
| 2 | Automatic Transmission Fluid Pump Bolt [3x] |
| 3 | Automatic Transmission Fluid Pump |
| 4 | Automatic Transmission Fluid Pump Drive Gear |
| 5 | Automatic Transmission Fluid Pump Drive Gear Bolt |
| 6 | Drive Motor Rotor Cooling Tube |
| 7 | Drive Motor Rotor Cooling Tube Bolt |
