Fastener Specifications

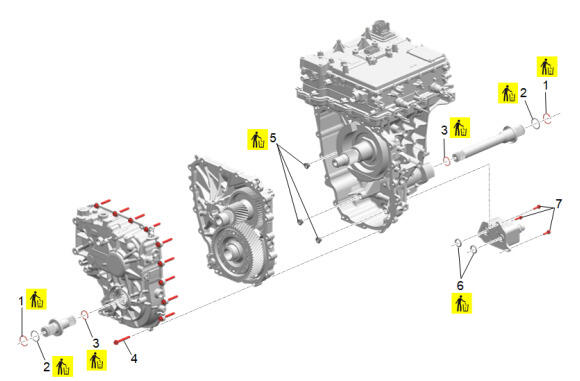

Fig 1: Exploded View Of Automatic Transmission Case And Associated Parts With Fasteners
GM5988896Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Case and Associated Parts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Output Shaft Retaining Ring-Large [2x] Yes - - Front Electric Drive Transmission Module Overhaul
2 Output Shaft Seal [2x] Yes - -
3 Output Shaft Retaining Ring-Small [2x] Yes - -
4 Automatic Transmission Case Bolt-M8 x 62.9 [17x] - - Automatic Transmission Case Bolt Sequence
5 Drive Motor Housing Seal [3x] Yes - -
6 Automatic Transmission Fluid Cooling Exchanger Seal [2x] Yes - -
7 Automatic Transmission Fluid Cooling Exchanger Bolt-M6 x 25.65 [3x] - - 9 N.m (80 lb in)

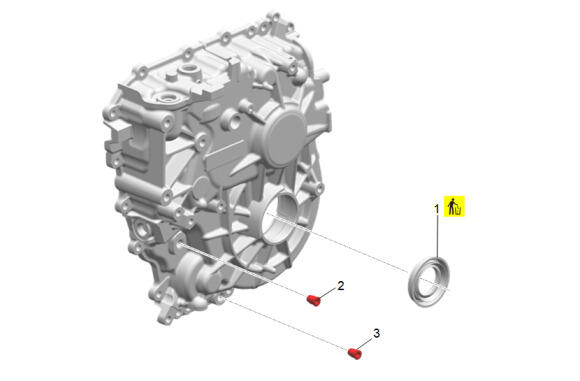

GM5988897Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Case Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Front Wheel Drive Shaft Oil Seal Yes - - Front Electric Drive Transmission Module Overhaul
2 Automatic Transmission Fluid Level Hole Plug-M12 x 16.25 - - 25 N.m (18 lb ft)
3 Transmission Fluid Drain Plug-M12 x 16.25 - - 25 N.m (18 lb ft)

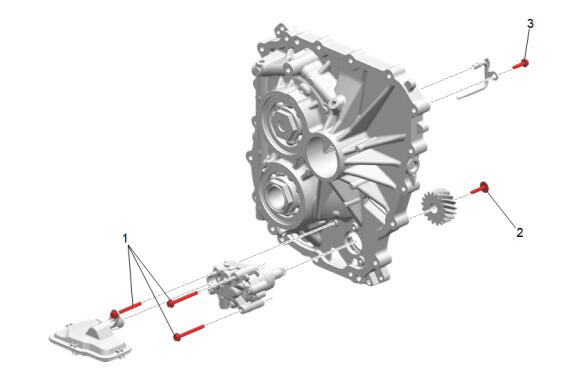

GM5988898Courtesy of GENERAL MOTORS COMPANY
Center Support Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pump Bolt-M6 x 60.6 [3x] - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Overhaul
2 Automatic Transmission Fluid Pump Drive Gear Bolt-M6 x 33 - - 9 N.m (80 lb in)
3 Drive Motor Rotor Cooling Tube Bolt-M6 x 25.65 - - 9 N.m (80 lb in)

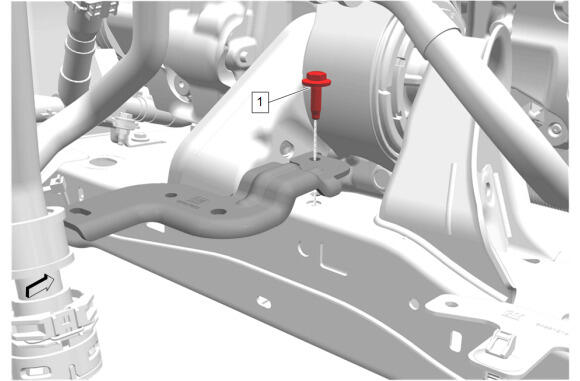

GM6327085Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Control Module Bracket Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Control Module Bracket Bolt - - 9 N.m (80 lb in) Drive Motor Rear Mount Replacement

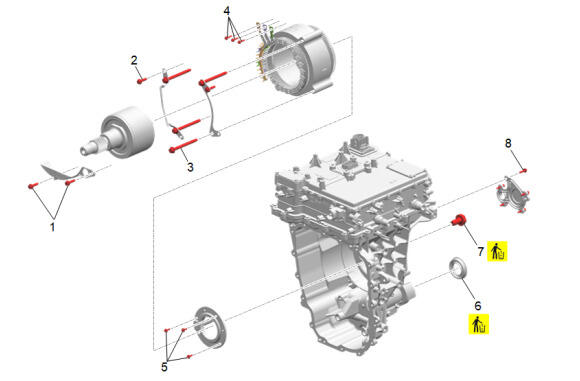

Fig 2: Exploded View Of Drive Motor Housing Component Fasteners (1 Of 2)
GM5988901Courtesy of GENERAL MOTORS COMPANY
Drive Motor Housing Components 1 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Stator Bracket Bolt-M8 x 31.7 [2x] - - 22 N.m (16 lb ft) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Stator Bracket Bolt-M8 x 30.7 [2x] - - 22 N.m (16 lb ft)
3 Drive Motor Stator Bolt-M10 x 110.8 [4x] - - 58 N.m (43 lb ft)
4 Drive Motor Power Inverter Module Connector Terminal Bolt-M5 x 23.9 [3x] - - 8.5 N.m (75 lb in)
5 Drive Motor Position Sensor Bolt-M5 x 17.6 [3x] - - 4.7 N.m (42 lb in)
6 Front Wheel Drive Shaft Oil Seal Yes - -
7 Drive Motor Rotor Bearing Bolt-M18 x 31.9 Yes Yes 100 N.m (74 lb ft)
8 Drive Motor Housing Cover Bolt-M6 x 25.65 [5x] - - Drive Motor Housing Cover Bolt Sequence

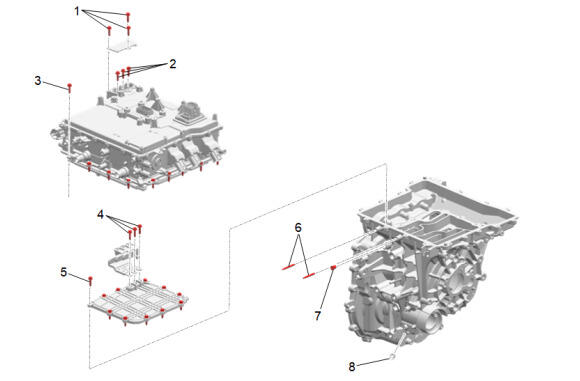

Fig 3: Exploded View Of Drive Motor Housing Component Fasteners (2 Of 2)
GM5988903Courtesy of GENERAL MOTORS COMPANY
Drive Motor Housing Components 2 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module High Voltage Connector Cover Bolt-M5 x 22.65 [3x] - - 8.5 N.m (75 lb in) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Power Inverter Module Connector Bolt-M6 x 25.65 [3x] - - 9 N.m (80 lb in)
3 Drive Motor Power Inverter Module Bolt-M6 x 25.65 [17x] - - Drive Motor Power Inverter Module Bolt Sequence
4 Drive Motor Power Inverter Module Connector Terminal Bolt-M6 x 25.65 [3x] - - 9 N.m (80 lb in)
5 Drive Motor Housing Cover Bolt-M6 x 25.65 [11x] - - Drive Motor Housing Cover Bolt Sequence
6 Transmission Stud [2x] - - 6 N.m (53 lb in)
7 Automatic Transmission Fluid Pressure Test Hole Plug-M12 x 16.25 - - 25 N.m (18 lb ft)
8 Automatic Transmission Fluid Temperature Sensor - - 9 N.m (80 lb in)

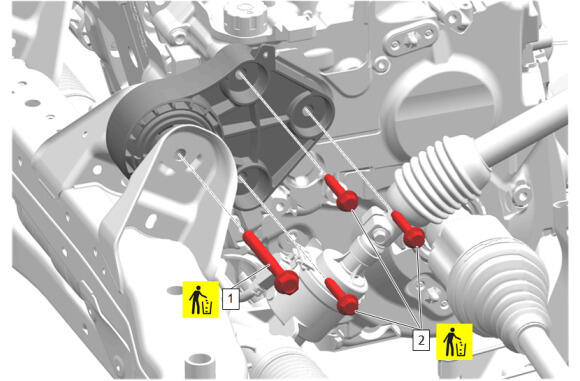

GM6017685Courtesy of GENERAL MOTORS COMPANY
Drive Motor Mount Bolts - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Mount Bolt-M12 x 110 Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 75 degrees		 Drive Motor Mount Replacement - Left Side
2 Drive Motor Mount Bolt-M10 x 55.75 [3x] Yes - First Pass: 58 N.m (43 lb ft)
Final Pass: 75 degrees

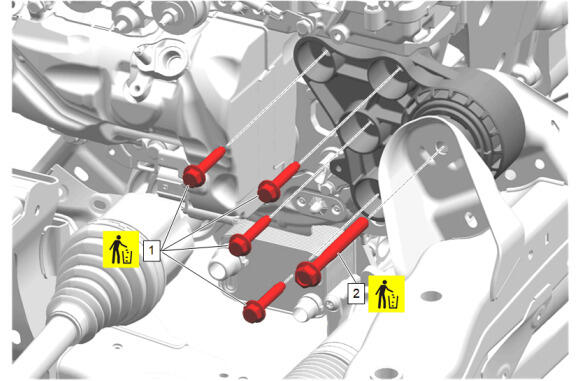

GM6017688Courtesy of GENERAL MOTORS COMPANY
Drive Motor Mount Bolts - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Mount Bolt-M10 x 55.75 [4x] Yes - First Pass: 58 N.m (43 lb ft)
Final Pass: 75 degrees		 Drive Motor Mount Replacement - Right Side
2 Drive Motor Mount Bolt-M12 x 110 Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 75 degrees

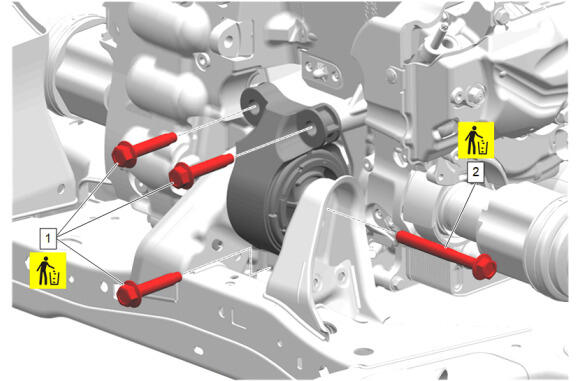

GM6017689Courtesy of GENERAL MOTORS COMPANY
Drive Motor Rear Mount Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bolt-M12 x 60.90 [3x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 75 degrees		 Drive Motor Rear Mount Replacement
2 Drive Motor Rear Mount Bolt-M12 x 110 Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 105 degrees

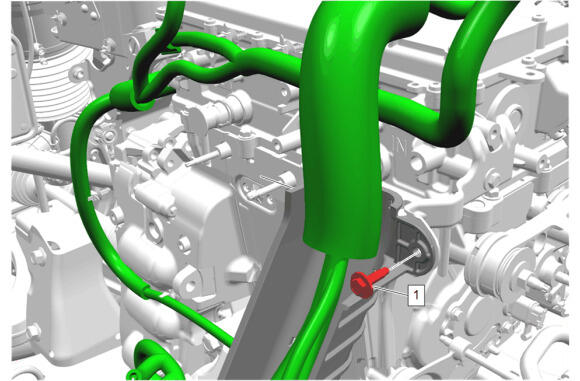

GM6328148Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Conduit Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Conduit Bolt Yes - 9 N.m (80 lb in) Front Electric Drive Transmission Module Replacement (JSW) , or Front Electric Drive Transmission Module Replacement (JFW)

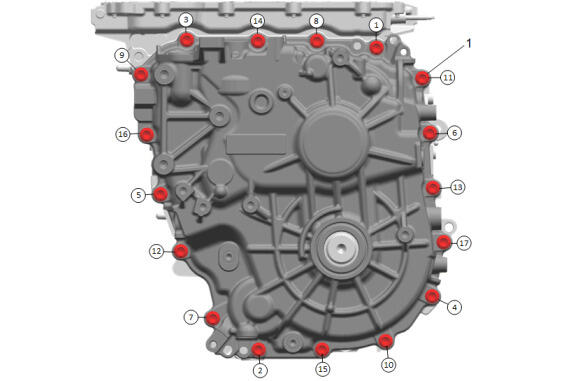

Automatic Transmission Case Bolt Sequence
GM6014737Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Case Bolt-M8 x 62.9 [17x] - - 36 N.m (27 lb ft) Front Electric Drive Transmission Module Overhaul

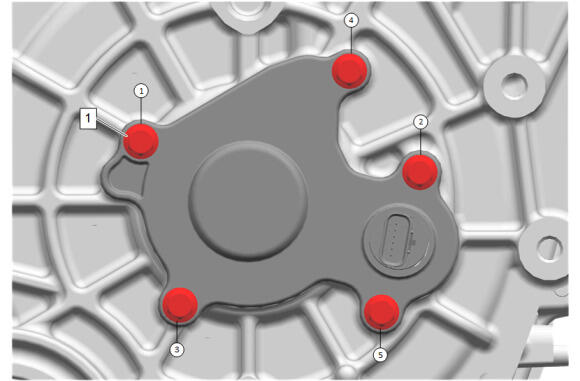

Drive Motor Housing Cover Bolt Sequence
GM6014740Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Housing Cover Bolt-M6 x 25.65 [5x] - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Overhaul

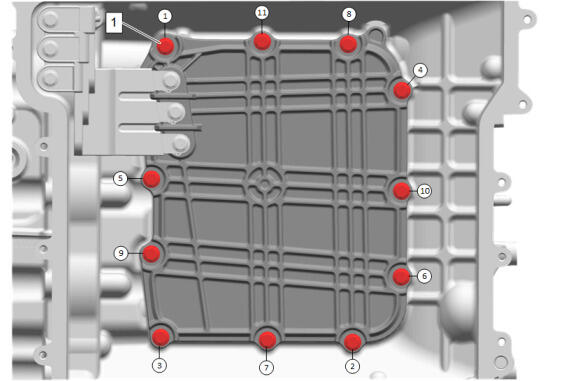

Drive Motor Housing Cover Bolt Sequence
GM6014742Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Housing Cover Bolt-M6 x 25.65 [11x] - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Overhaul

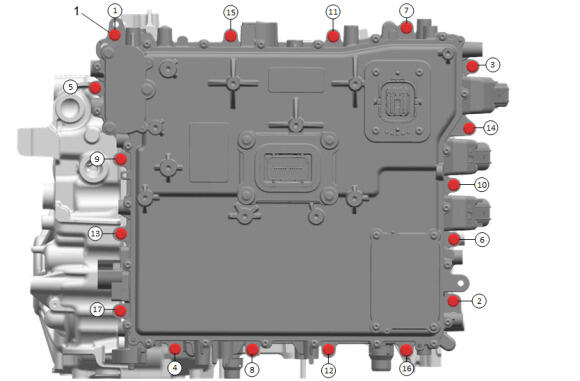

Drive Motor Power Inverter Module Bolt Sequence
GM6014746Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Inverter Module Bolt-M6 x 25.65 [17x] - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Overhaul
