Spark Timing: Notes

Spark timing is controlled by 1 of 3 different systems: Electronic Spark Timing (EST), Electronic Spark Timing with Electronic Spark Control (EST/ESC) and Electronic Module Retard (EMR). Operation and application of each system is as follows:

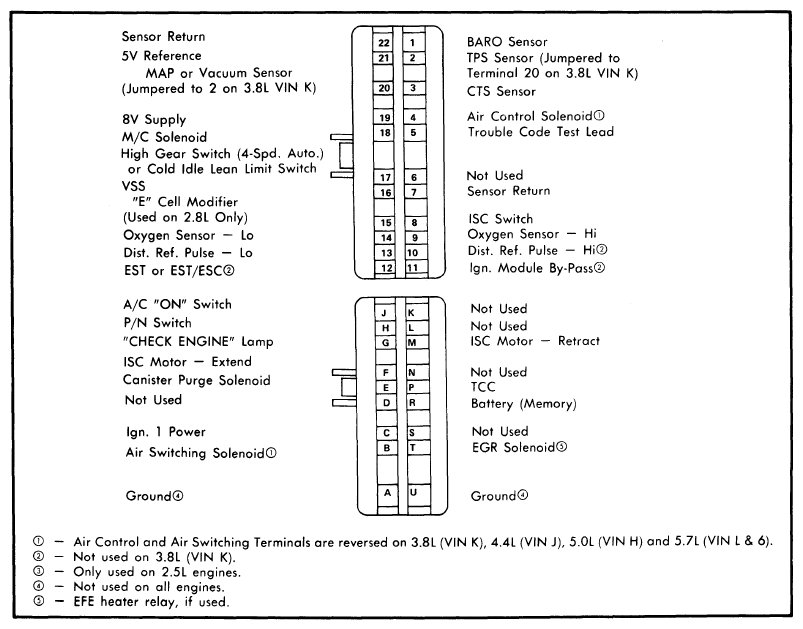

Fig 1: Electronic Control Module Terminal Identification

Courtesy of GENERAL MOTORS COMPANY
