All Models: Replacement

When removing high pressure switch, system must be discharged. All other switches are on Schrader-type valves and do not require system discharge.

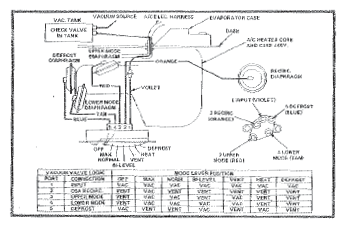

Fig 1: Air Conditioning Vacuum Diagram (Chevette)

Courtesy of GENERAL MOTORS COMPANY

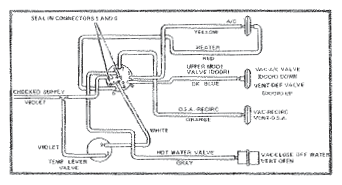

Fig 2: Air Conditioning Vacuum Diagram (Corvette)

Courtesy of GENERAL MOTORS COMPANY

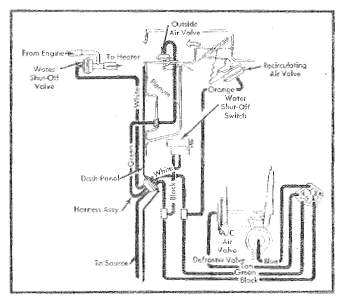

Fig 3: Air Conditioning Vacuum Diagram (All "B" & "C" Bodies.)

Courtesy of GENERAL MOTORS COMPANY

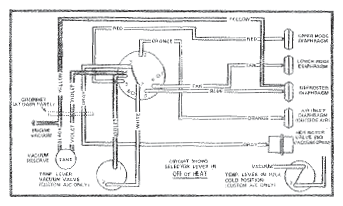

Fig 4: Air Conditioning Vacuum Diagram (Firebird & Camaro)

Courtesy of GENERAL MOTORS COMPANY

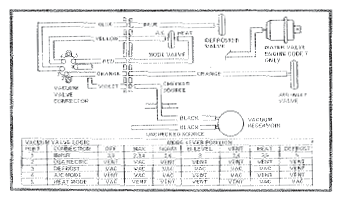

Fig 5: Air Conditioning Vacuum Diagram (Riviera Toronado)

Courtesy of GENERAL MOTORS COMPANY

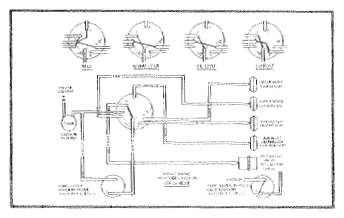

Fig 6: Air Conditioning Vacuum Diagram (All "G" Bodies)

Courtesy of GENERAL MOTORS COMPANY

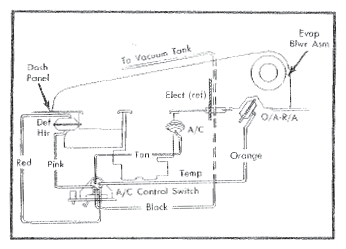

Fig 7: Air Conditioning Vacuum Diagram (All "A" & "X" Bodies)

Courtesy of GENERAL MOTORS COMPANY

Fig 8: Air Conditioning Vacuum Diagram (All "J" Bodies)

Courtesy of GENERAL MOTORS COMPANY
