Code 12 - No Reference Signal

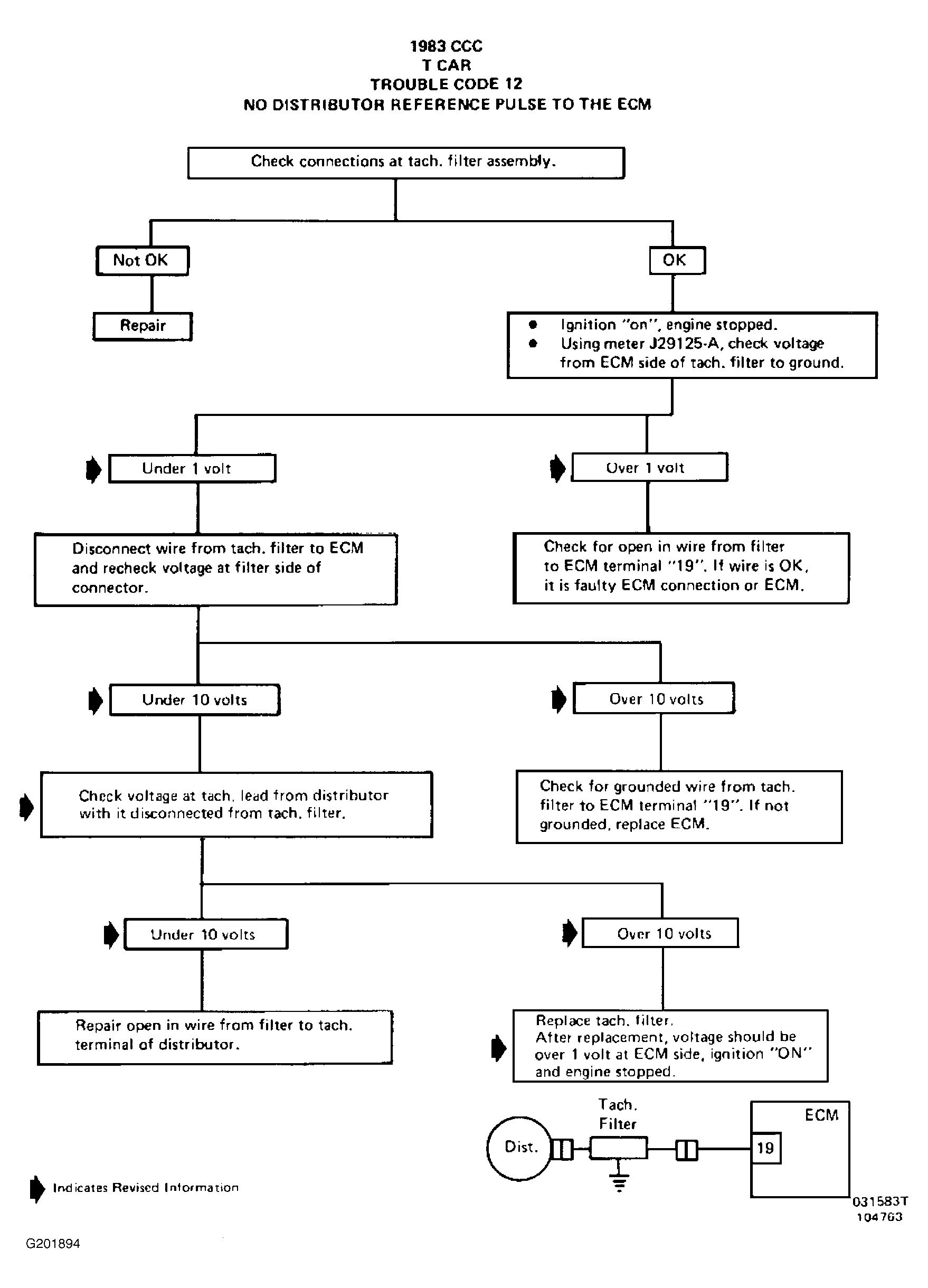

Fig 1: Flow Chart, Code 12 - No Distributor Reference Pulse To ECM
G201894
Fig 2: Flow Chart, Code 12 - No Distributor Reference Pulse To ECM
GB0045534
