Idle Speed Control (ISC) "Throttle Kicker" (2.8L Only)

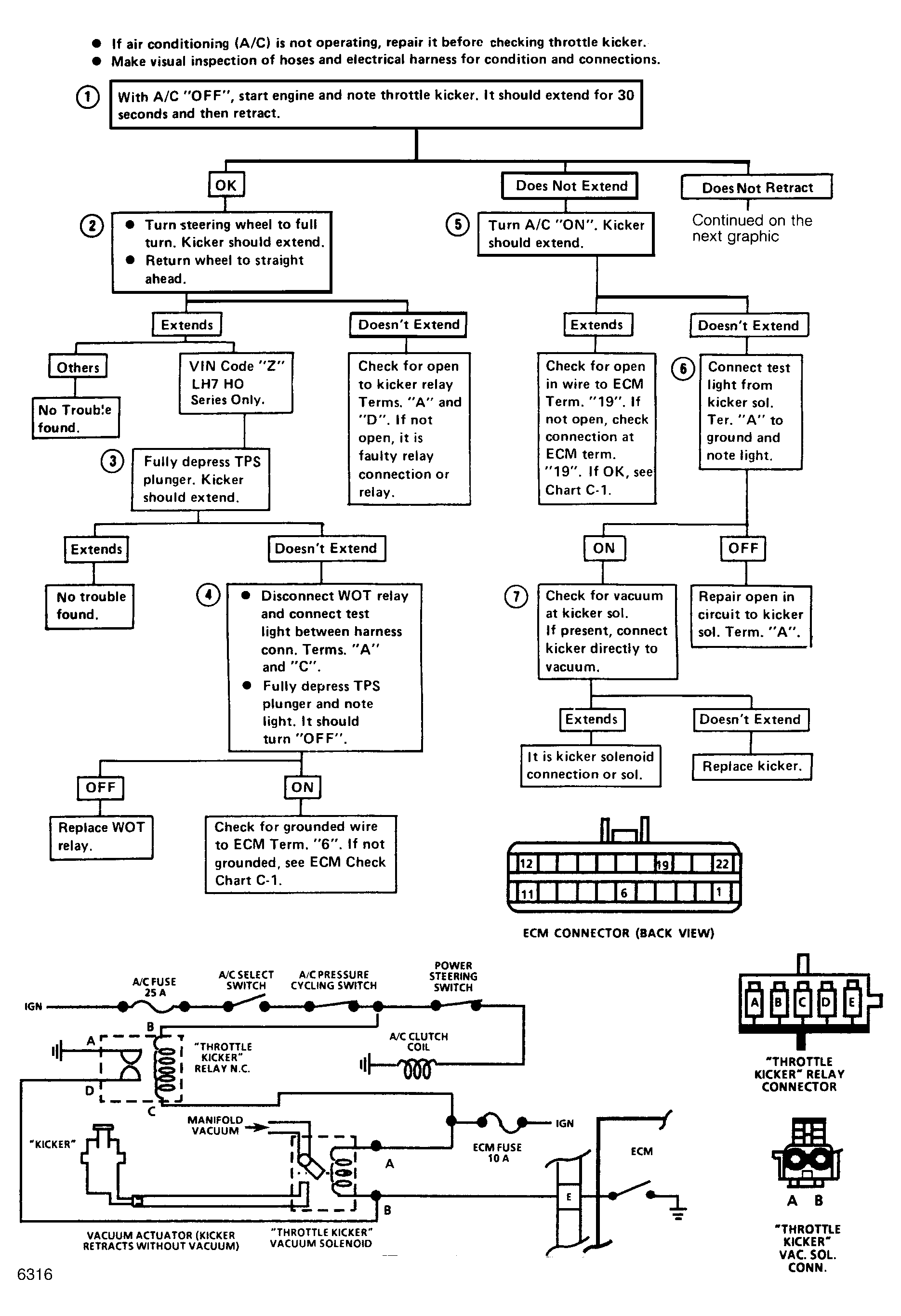

Fig 1: Flow Chart C2E1 (1 of 2) - Idle Speed Control (ISC) "Throttle Kicker" (2.8L Only)
G6316

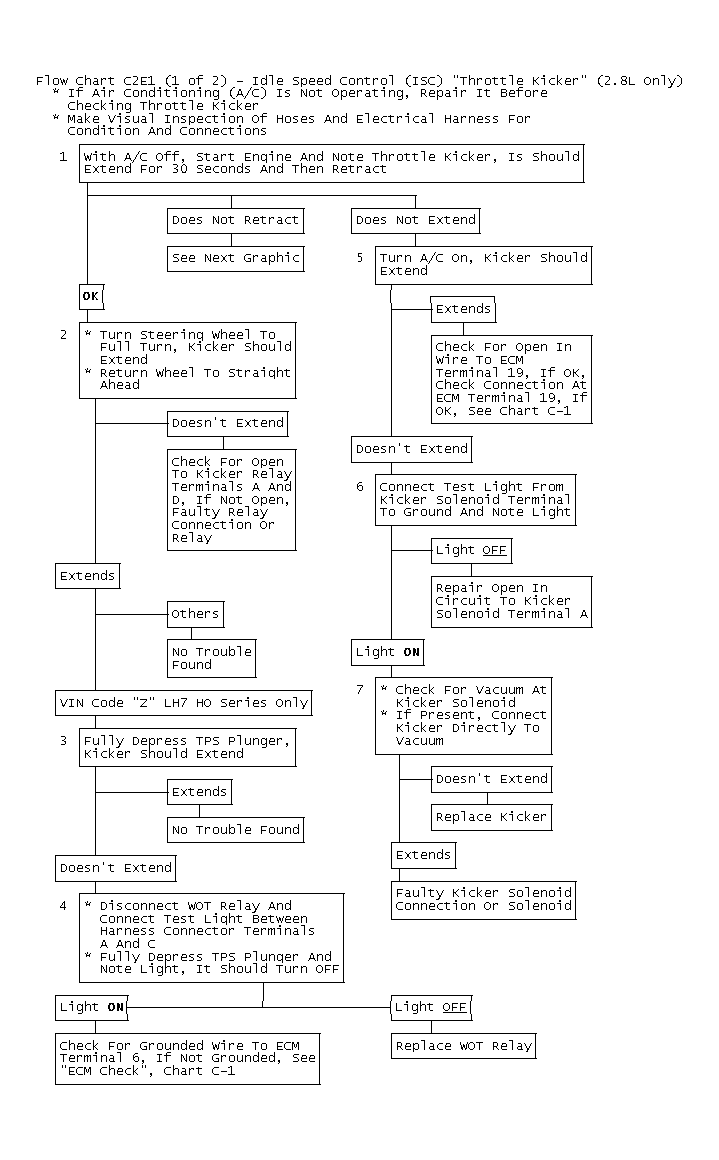

Fig 2: Flow Chart C2E1 (1 of 2) - Idle Speed Control (ISC) "Throttle Kicker" (2.8L Only)
GB0046366

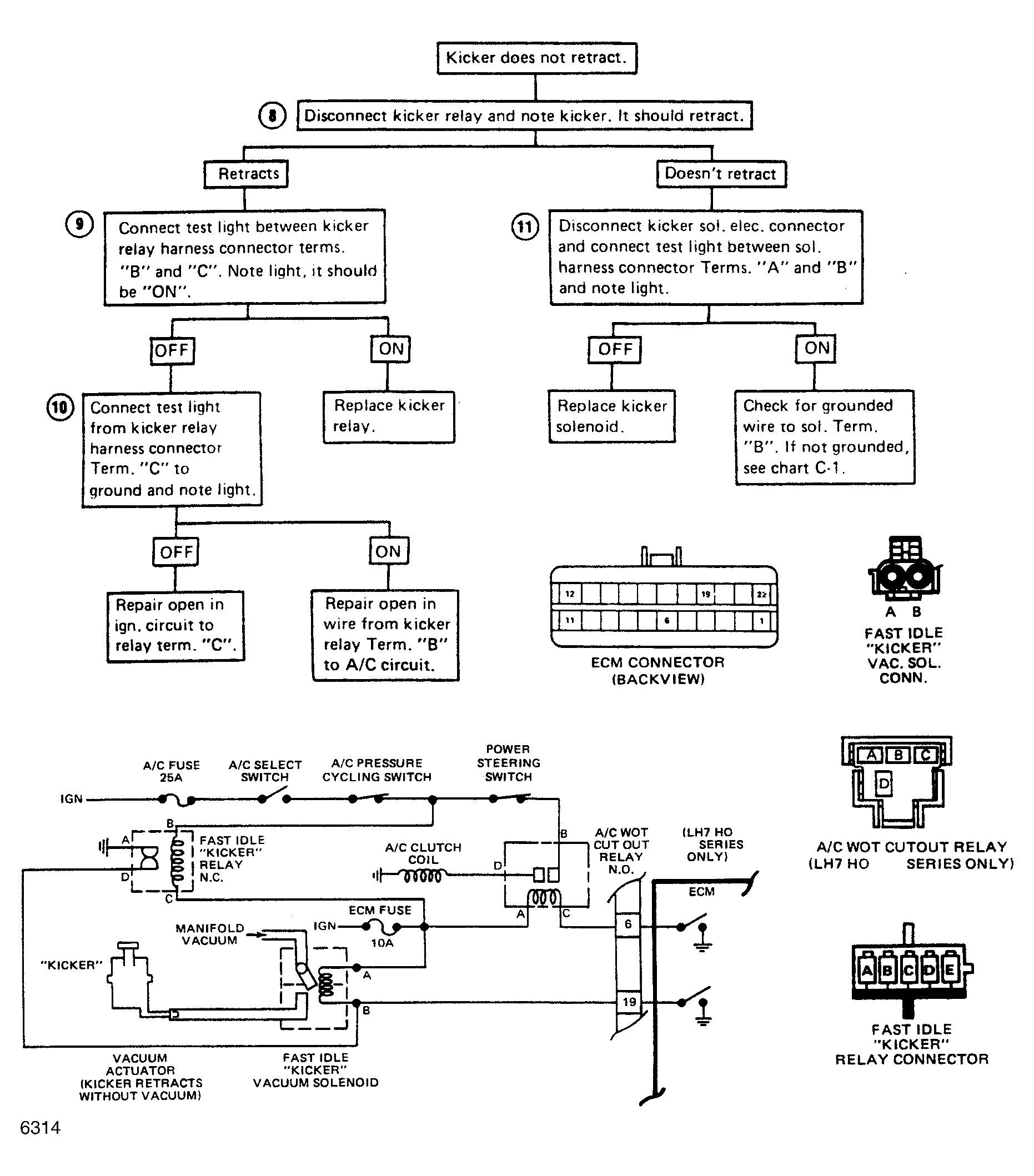

Fig 3: Flow Chart C2E2 (2 of 2) - Idle Speed Control (ISC) "Throttle Kicker" (2.8L Only Cont.)
G6314

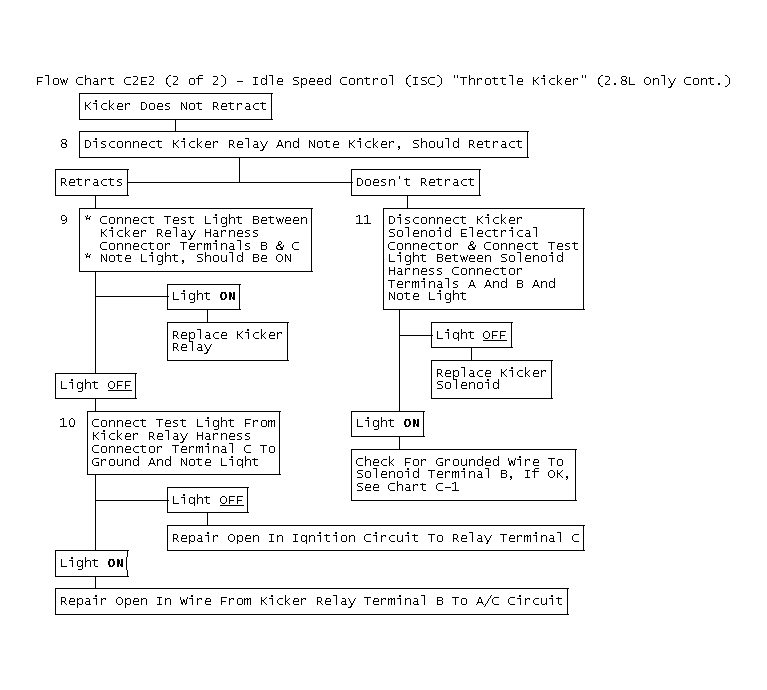

Fig 4: Flow Chart C2E2 (2 of 2) - Idle Speed Control (ISC) "Throttle Kicker" (2.8L Only Cont.)
GB0046367
