System Specifications

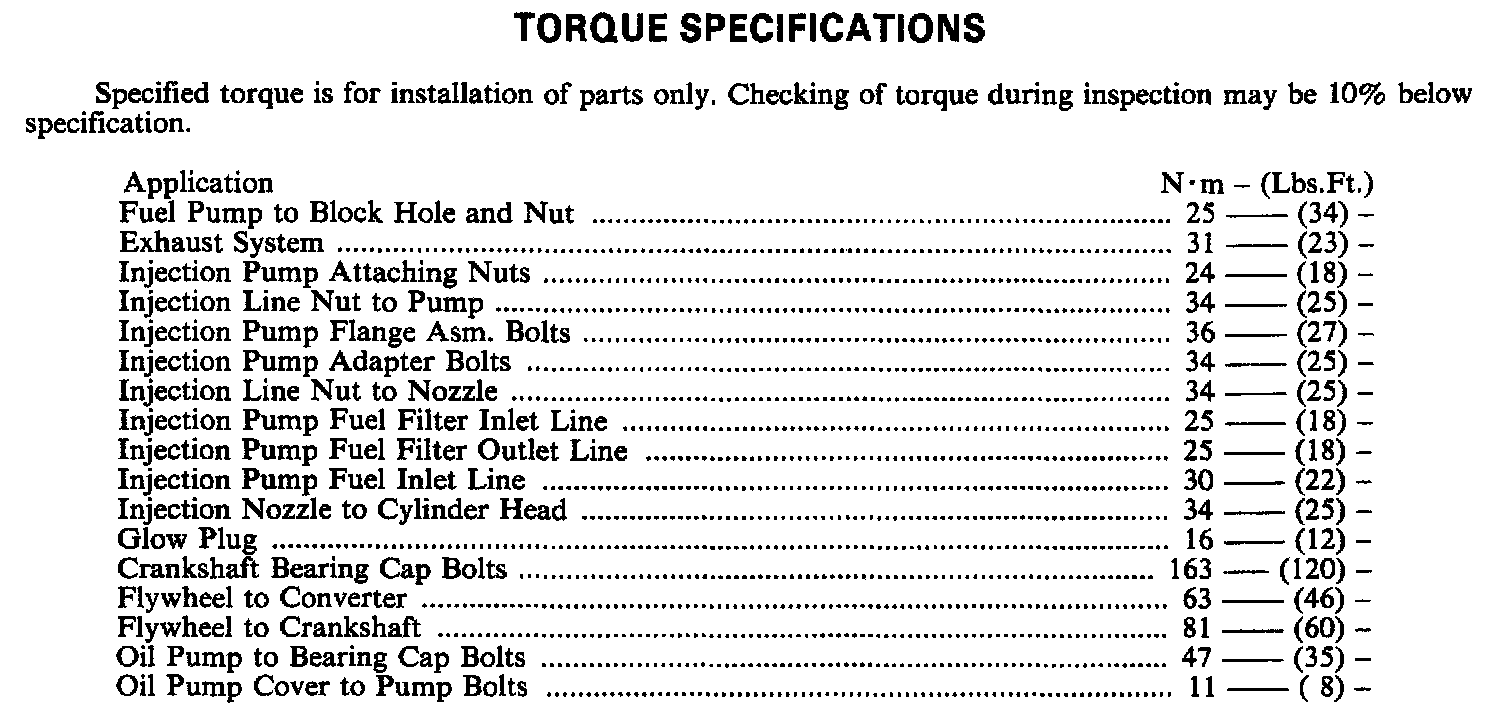

Torque Specifications:

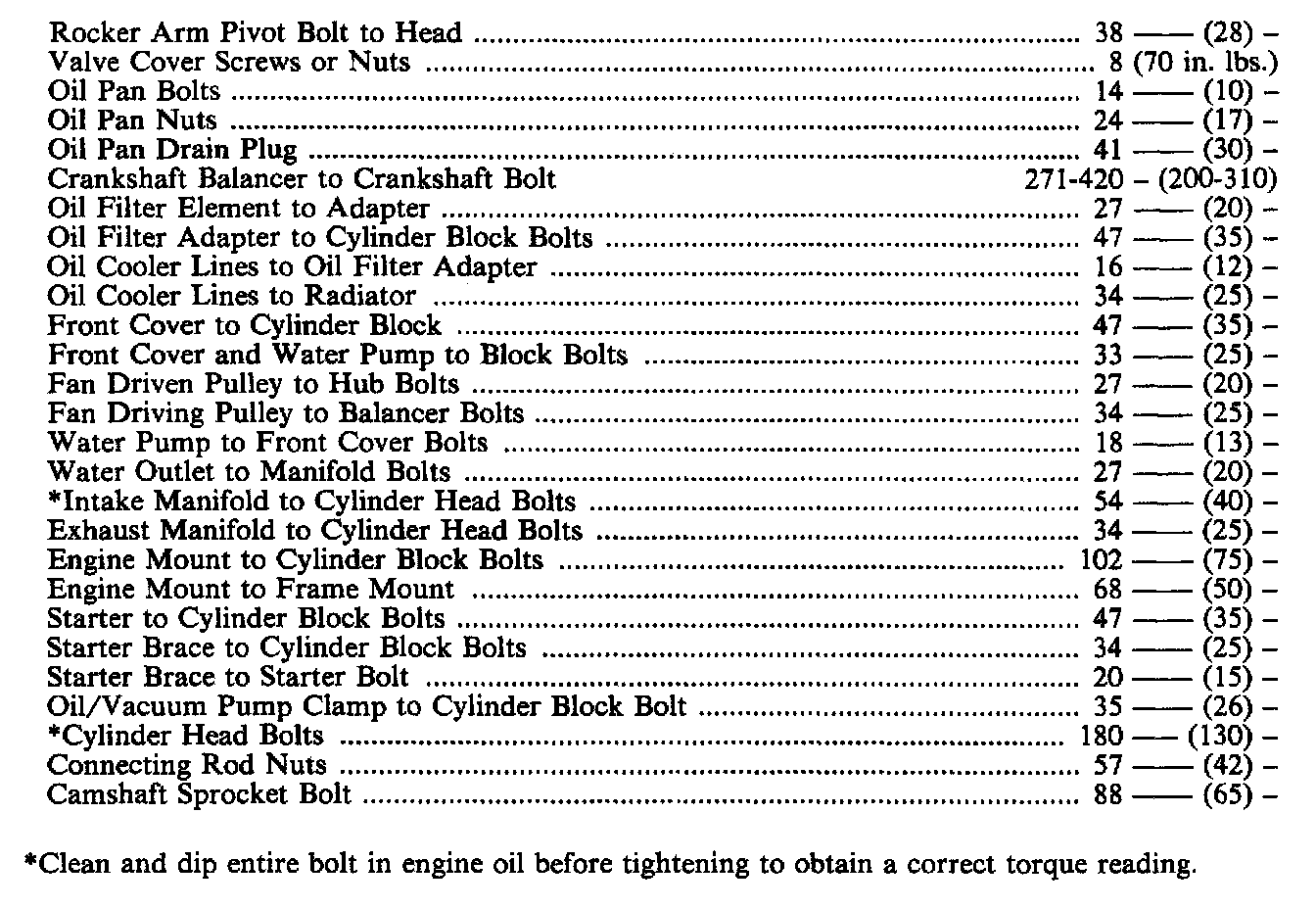

Continued Torque Specifications:

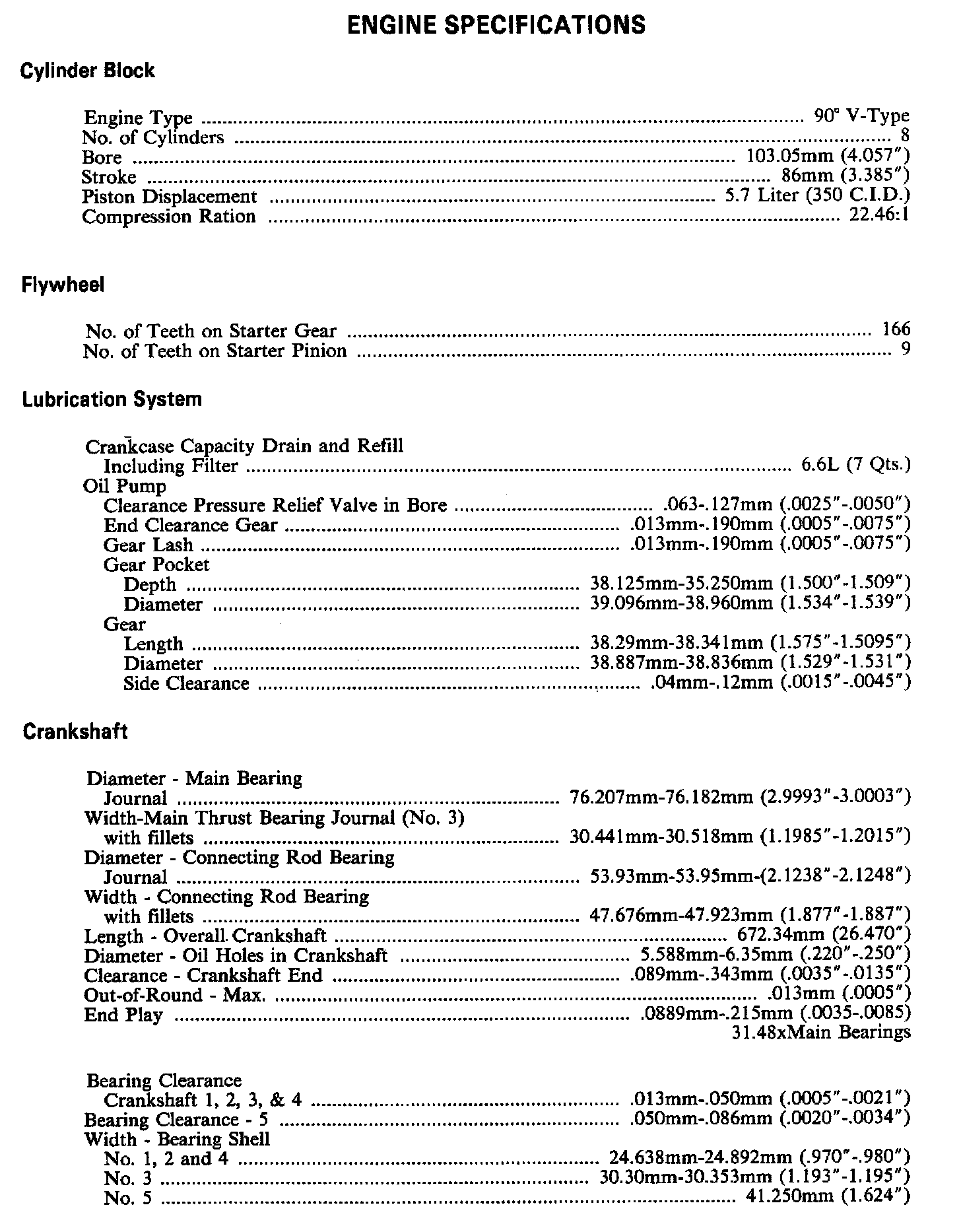

Engine Specifications:

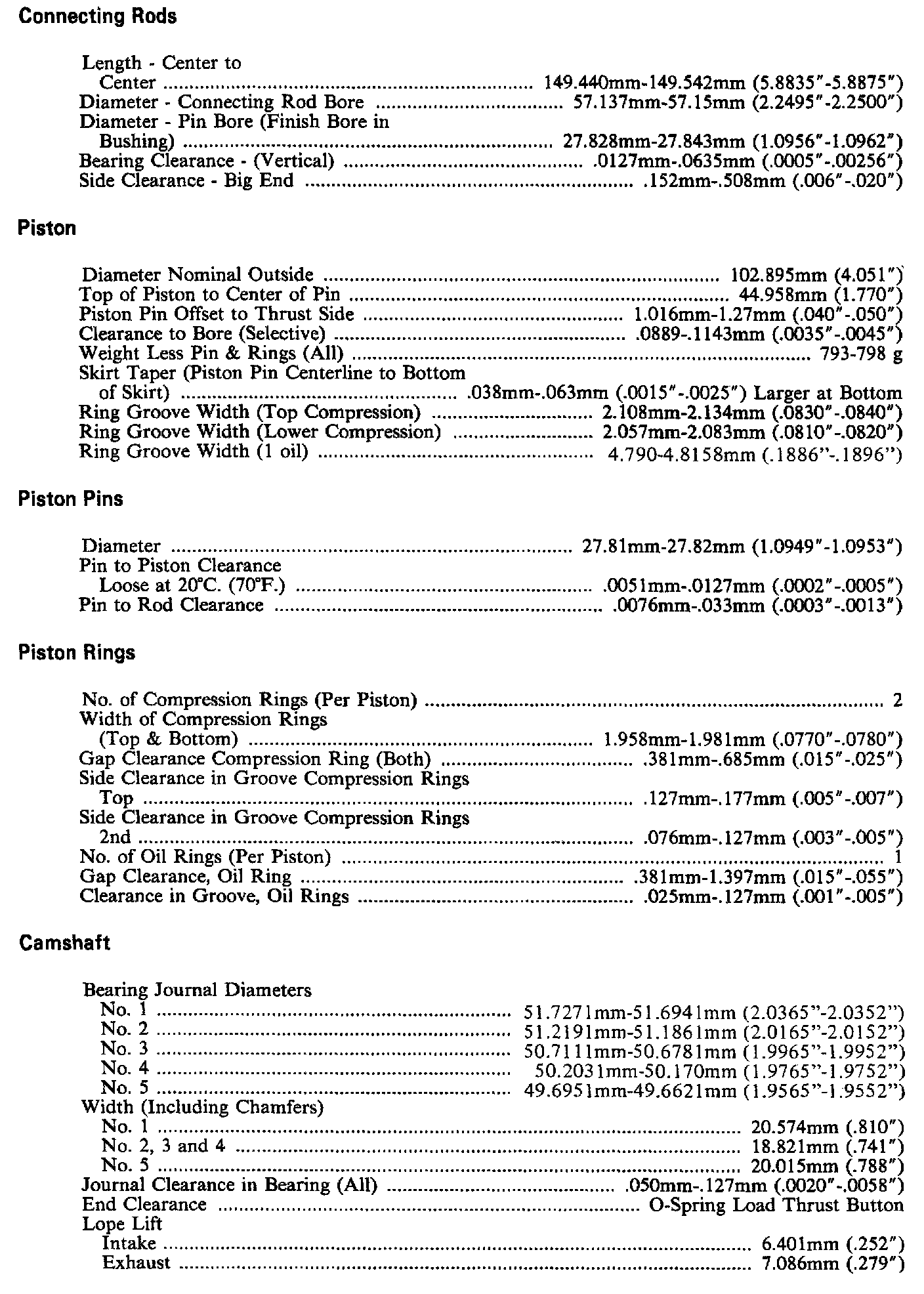

Continued Engine Specifications:

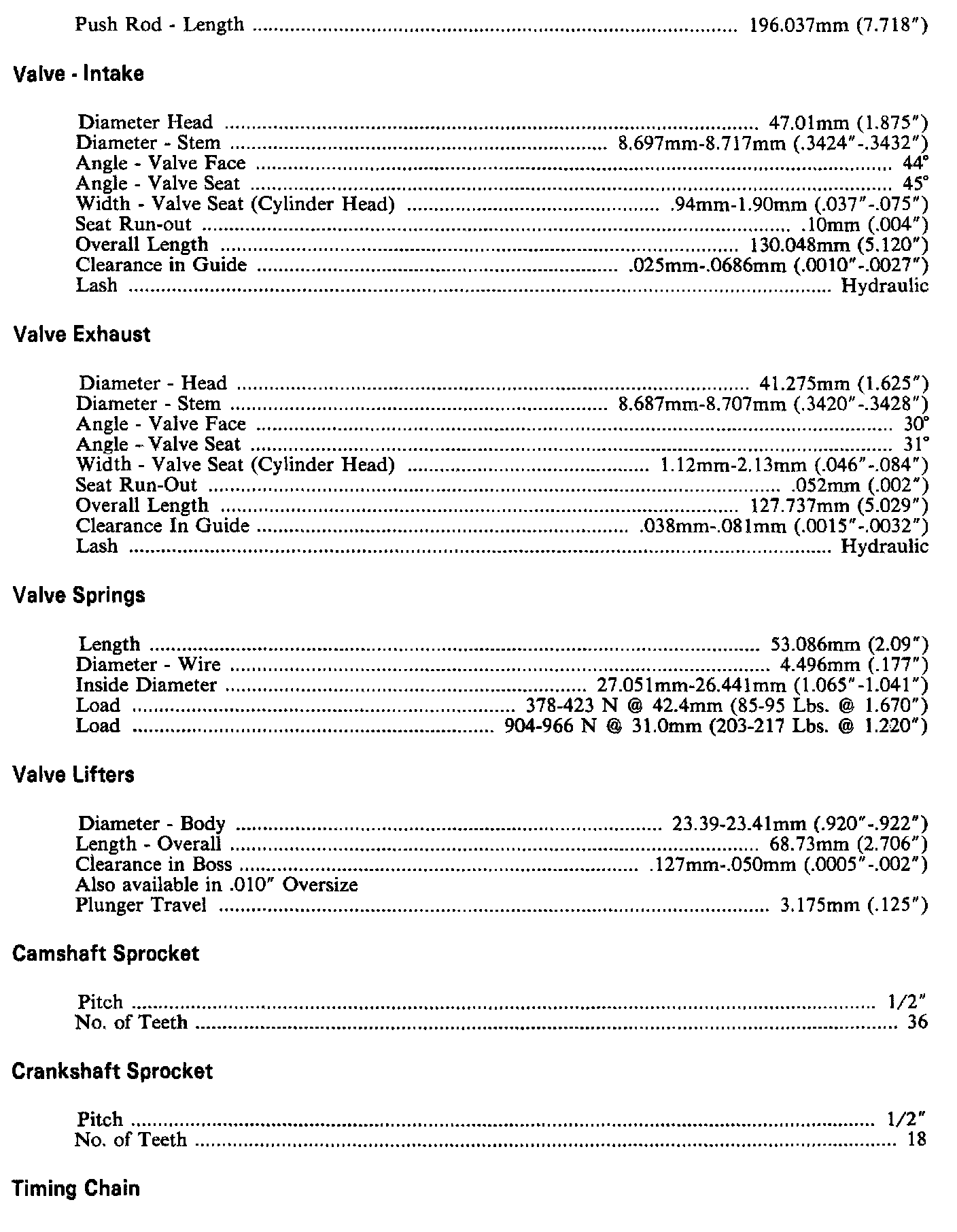

Continued Engine Specifications:






Intake Manifold Sequence:





Cylinder Head Sequence:
