System Specifications

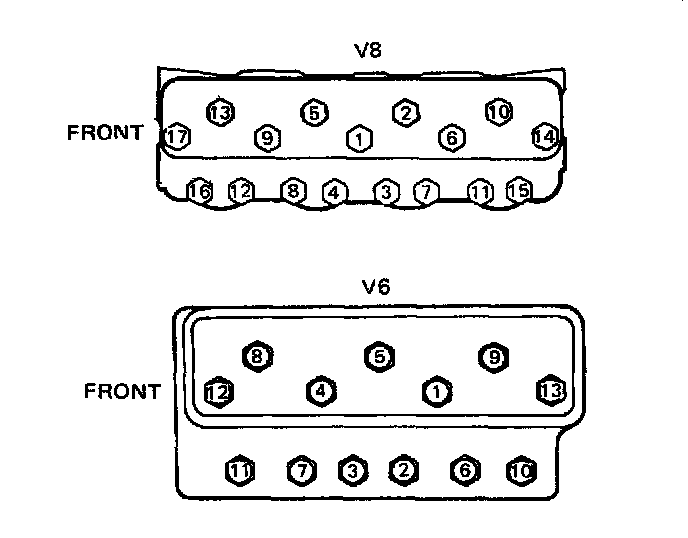

Cylinder Head Sequence:

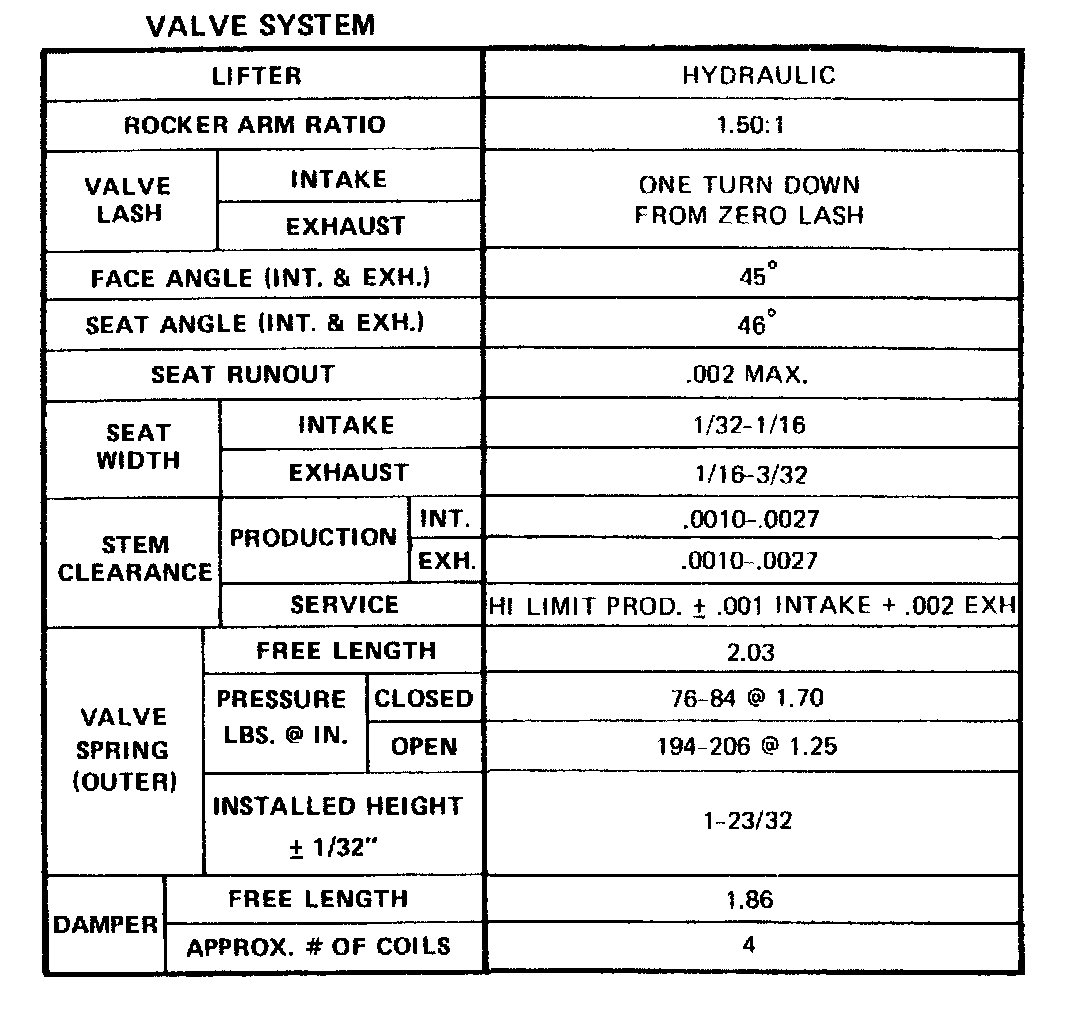

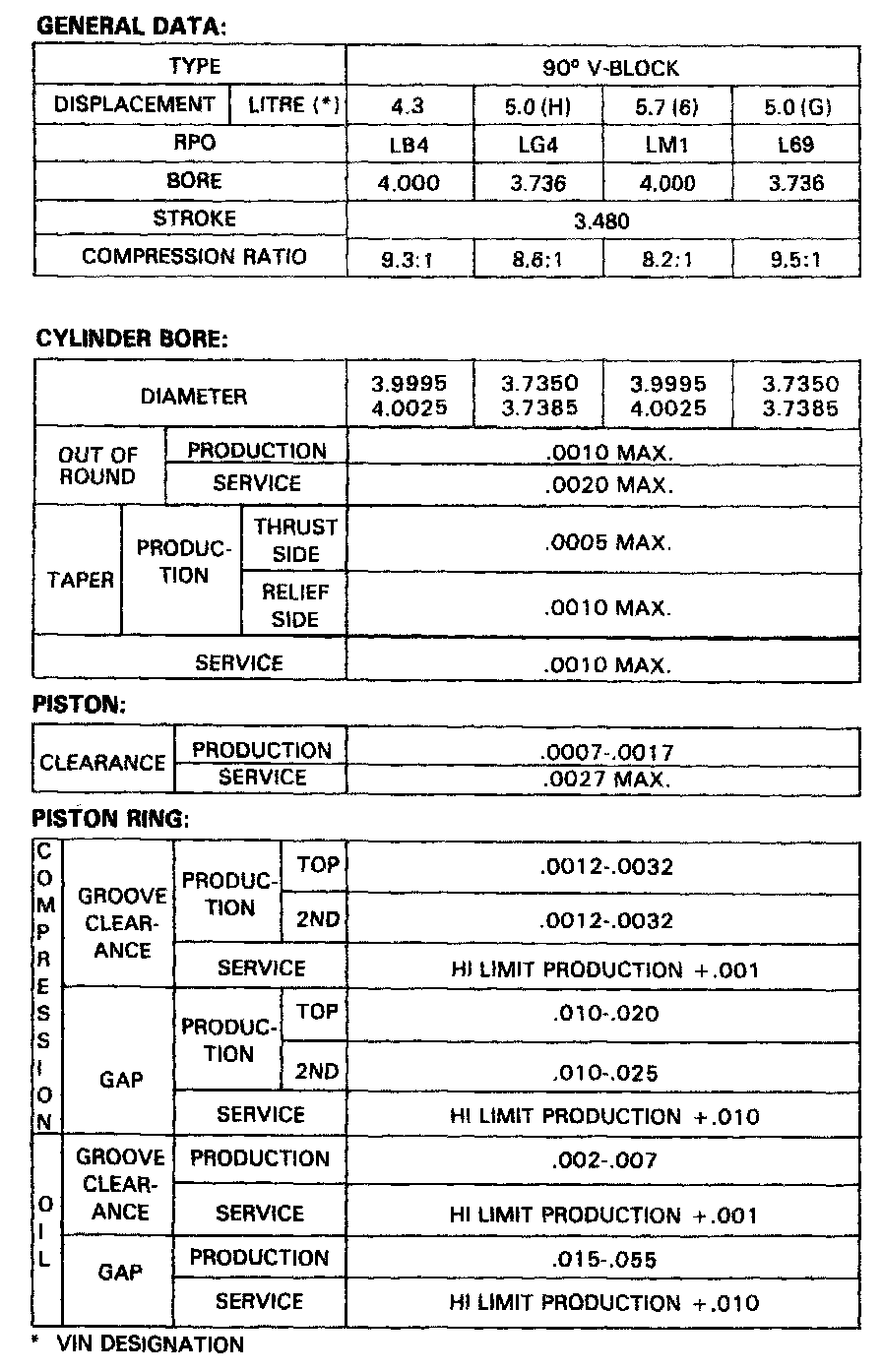

Engine Sequence:





Engine Sequence:

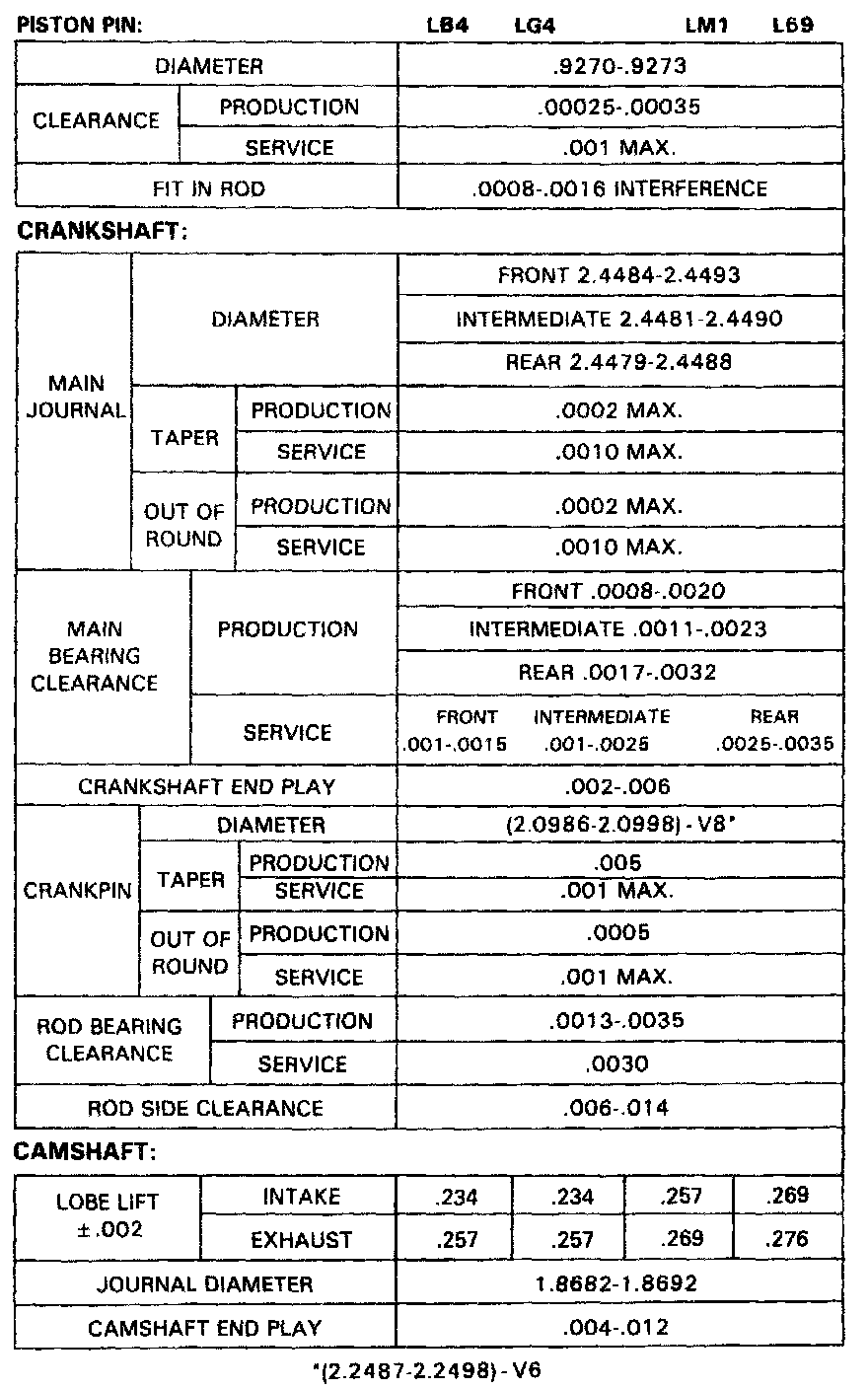

Continued Engine Specifications:





Continued Engine Specifications:

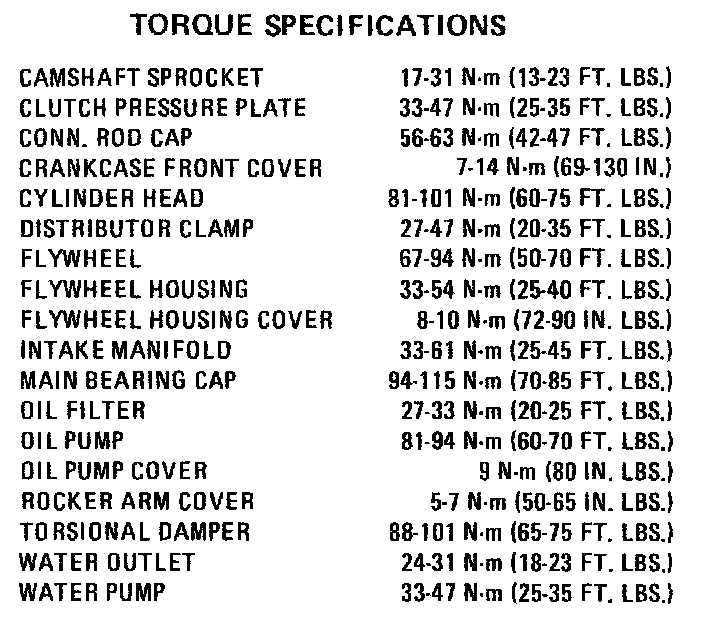

Torque Specifications:

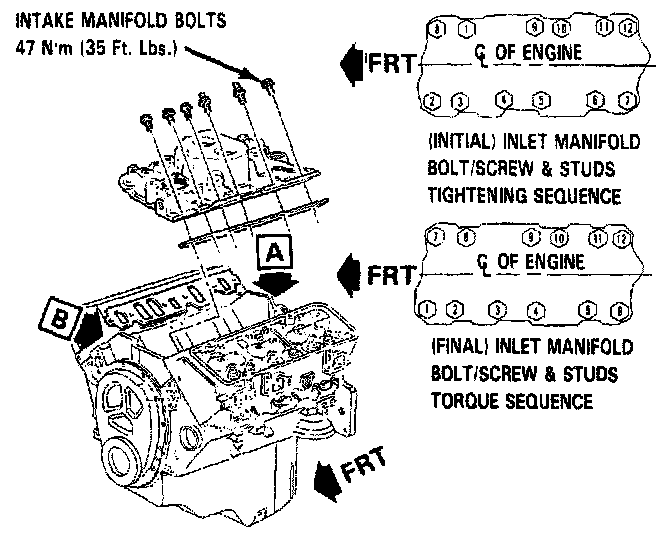

Intake Manifold Sequence V8:

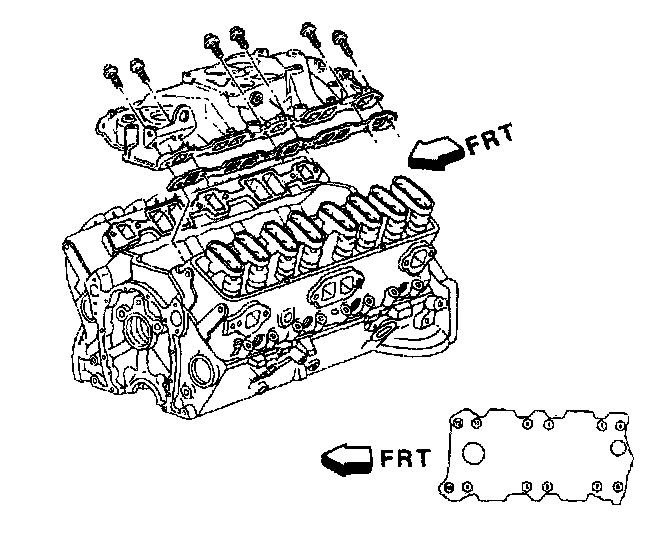

Intake Manifold Sequence V6:
