Front Caster Adjustment

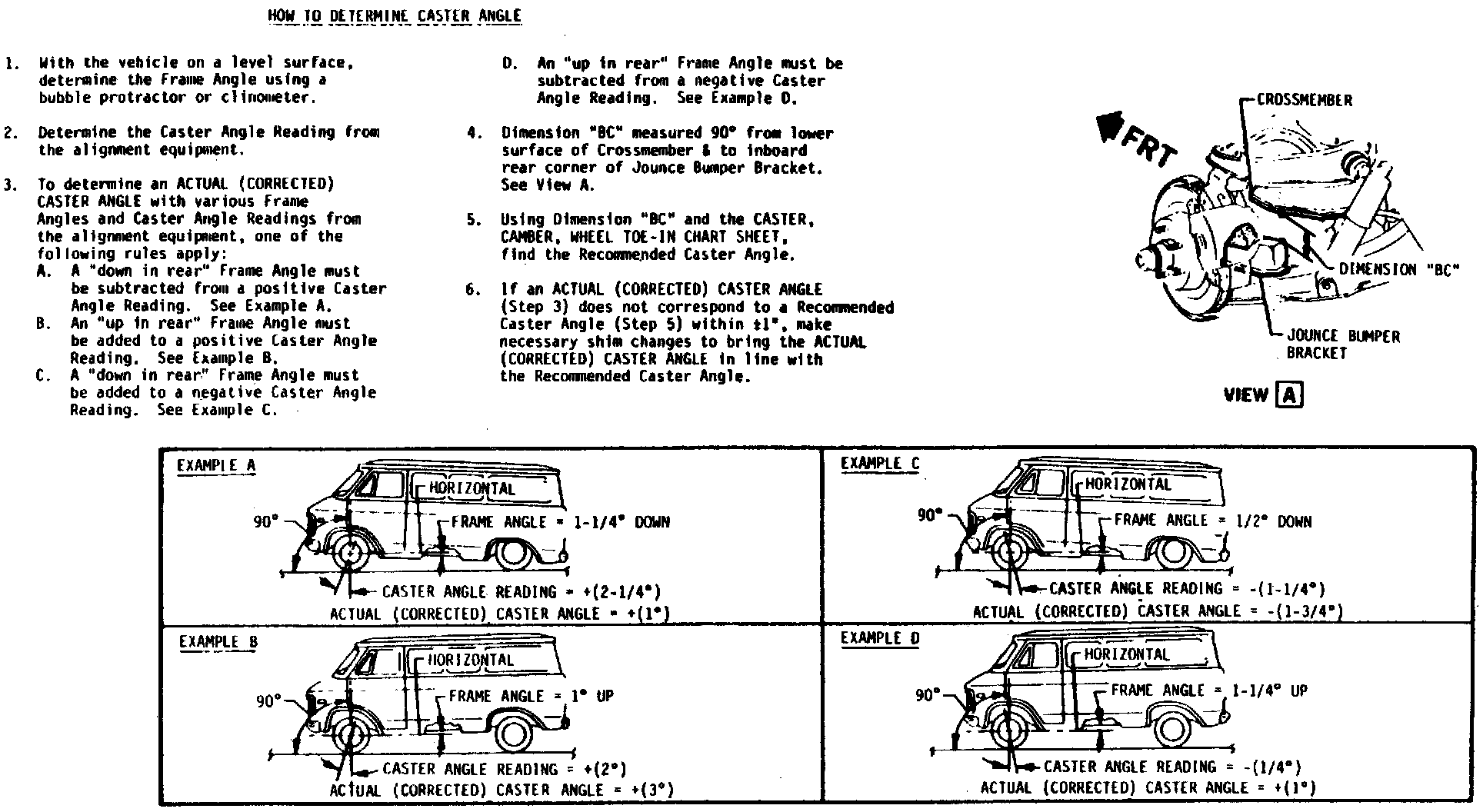

(Figure 1) Caster Angle:

Caster/Camber Adjustment:

PROCEDURE
All caster specifications are given with a frame angle of zero. Therefore, it will be necessary to know the angle of the frame (whether "up" in rear or "down" in rear) before a corrected caster reading can be determined (Figure 1).
