Air Flow Meter/Sensor: Testing and Inspection

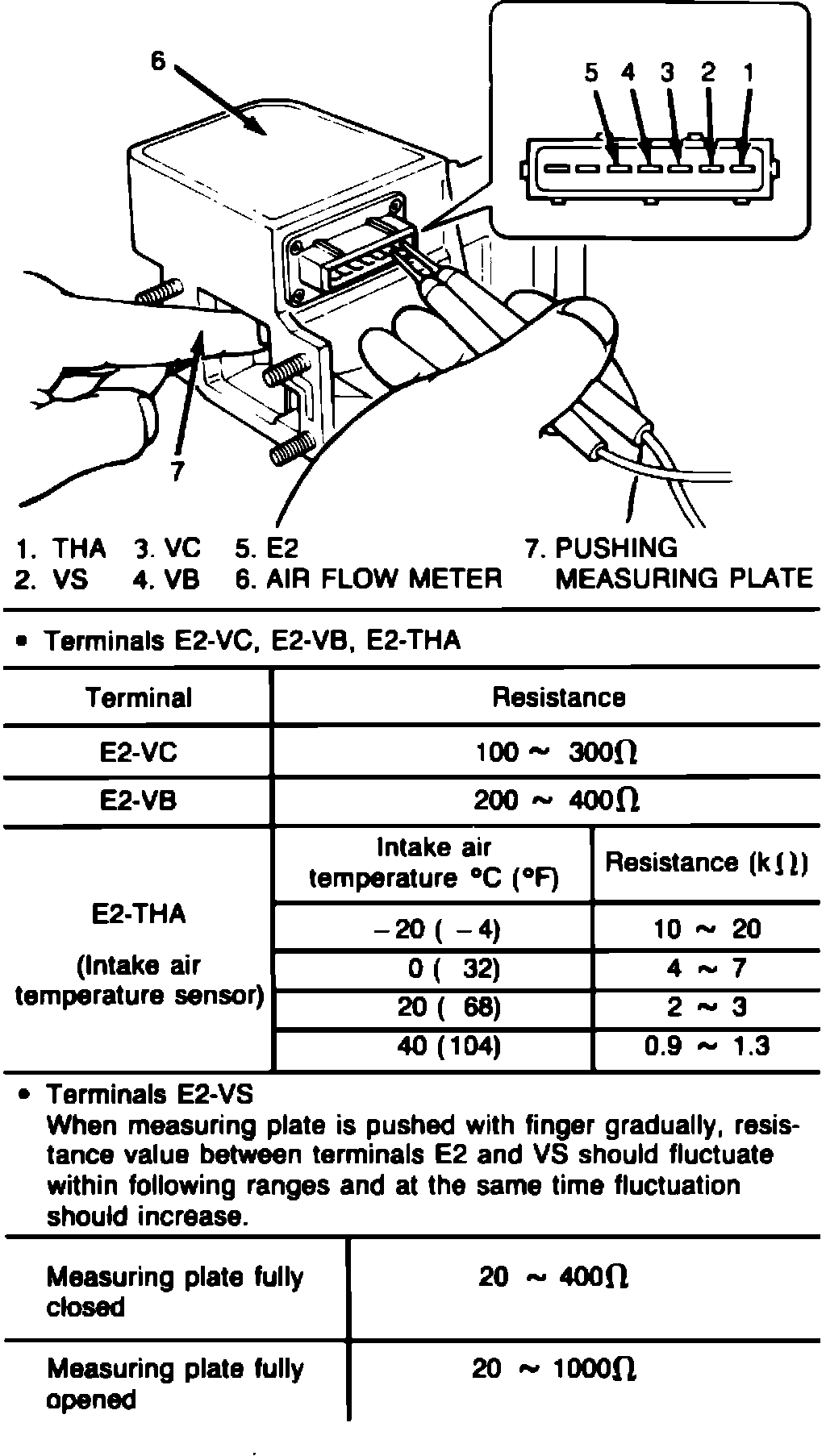

Fig. 10 Checking air flow meter:





1. Check resistance between terminals of air flow meter as shown, Fig. 10.
