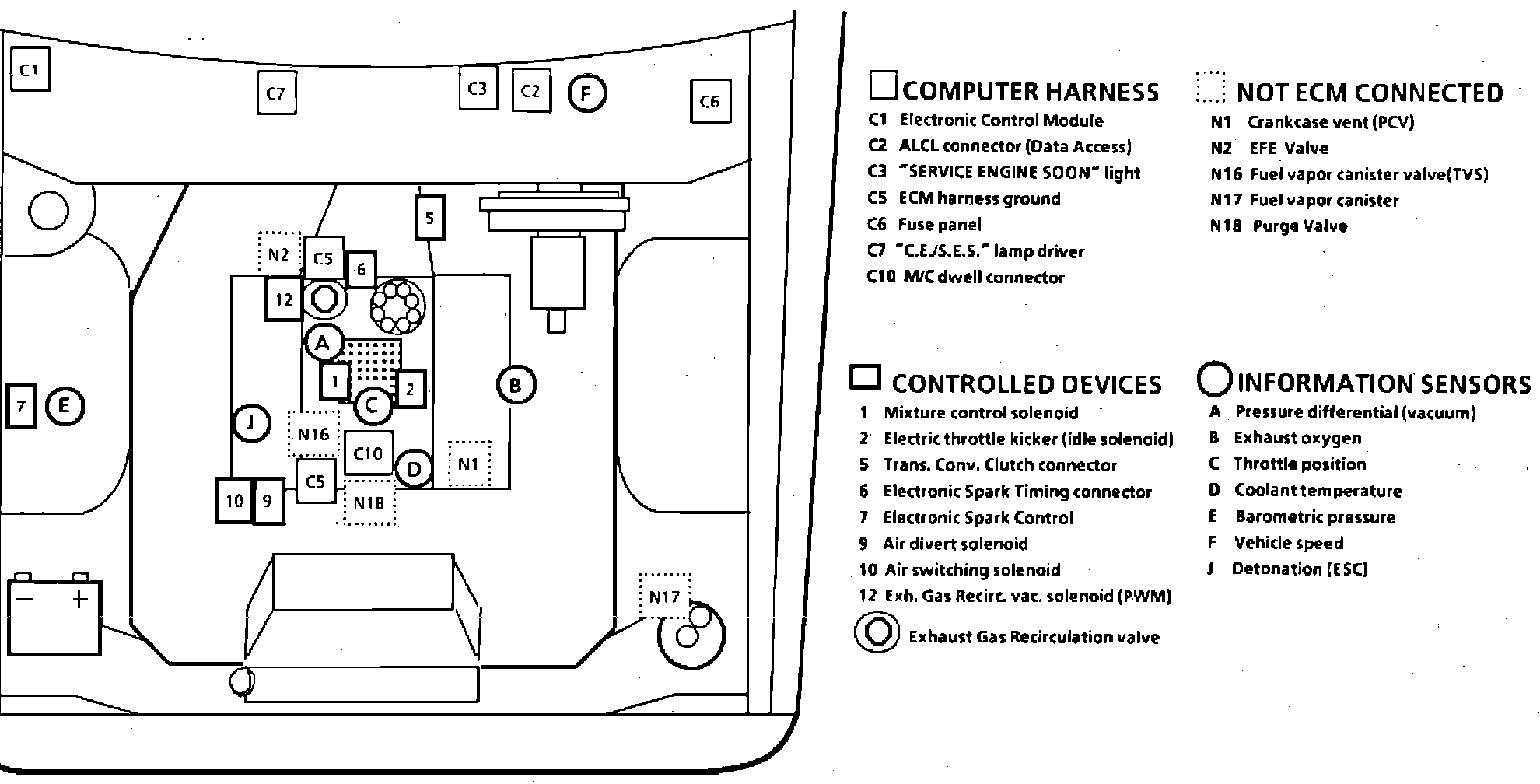

Underhood Block View

Engine & Underhood Components:




Under RH Corner Of Engine Compartment

Applicable to: Models With V8-305/5.0L, VIN H
