Modules

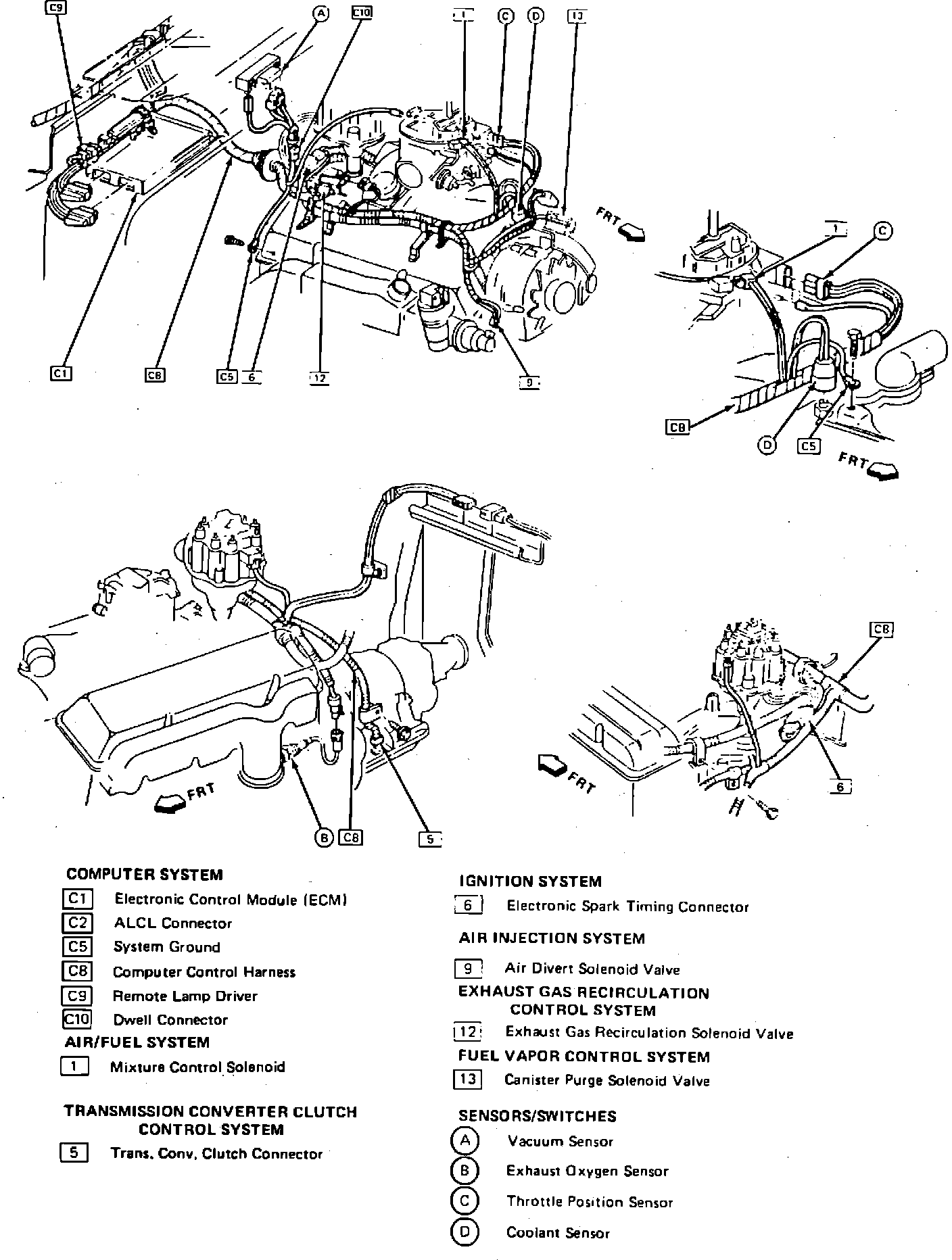

Firewall & top of V8 engine.:
Firewall Components & Top Of Engine
Applicable to: 1986 G series
