Mixture Control Solenoid: Testing and Inspection

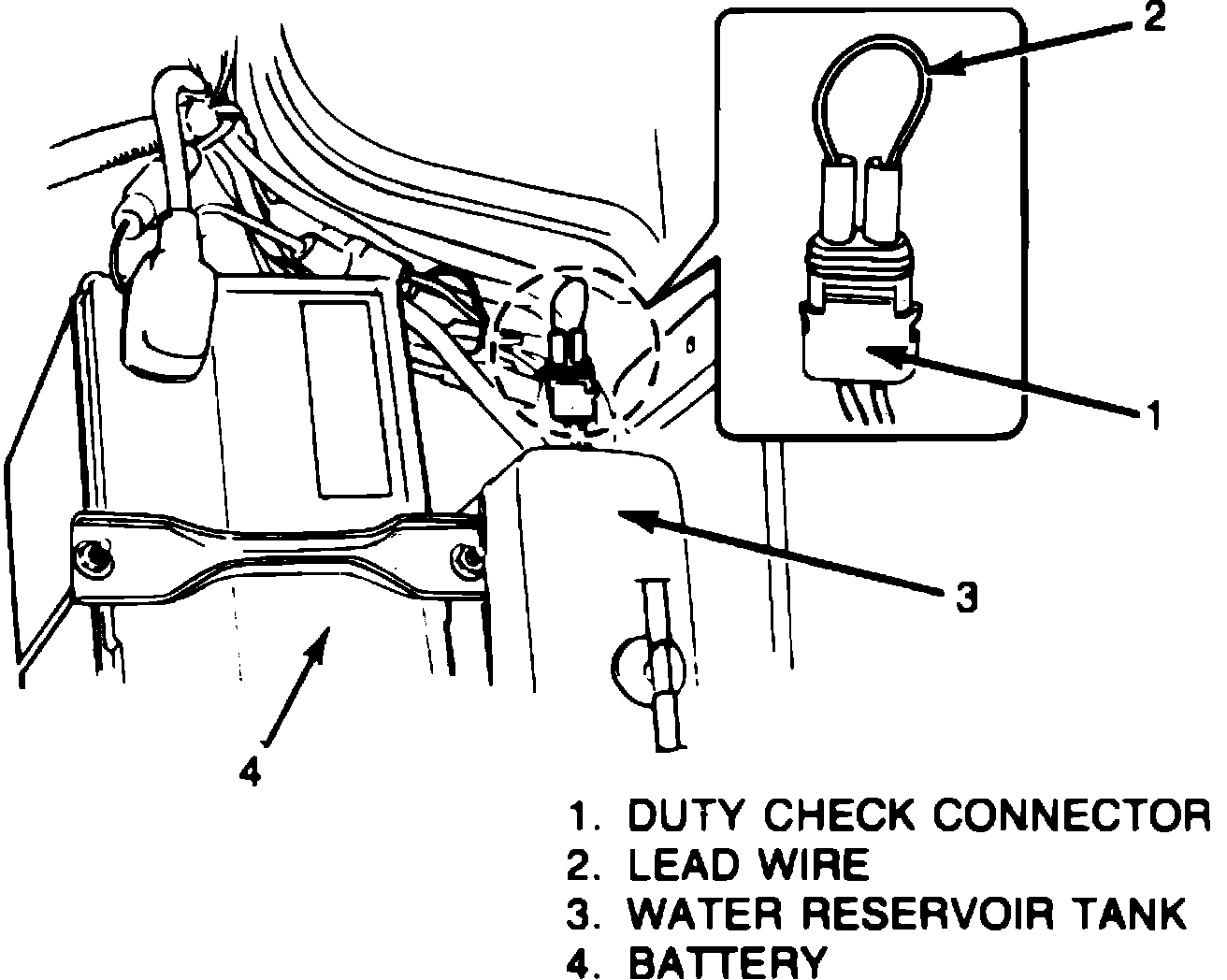

Fig. 15 Duty cycle test connector:

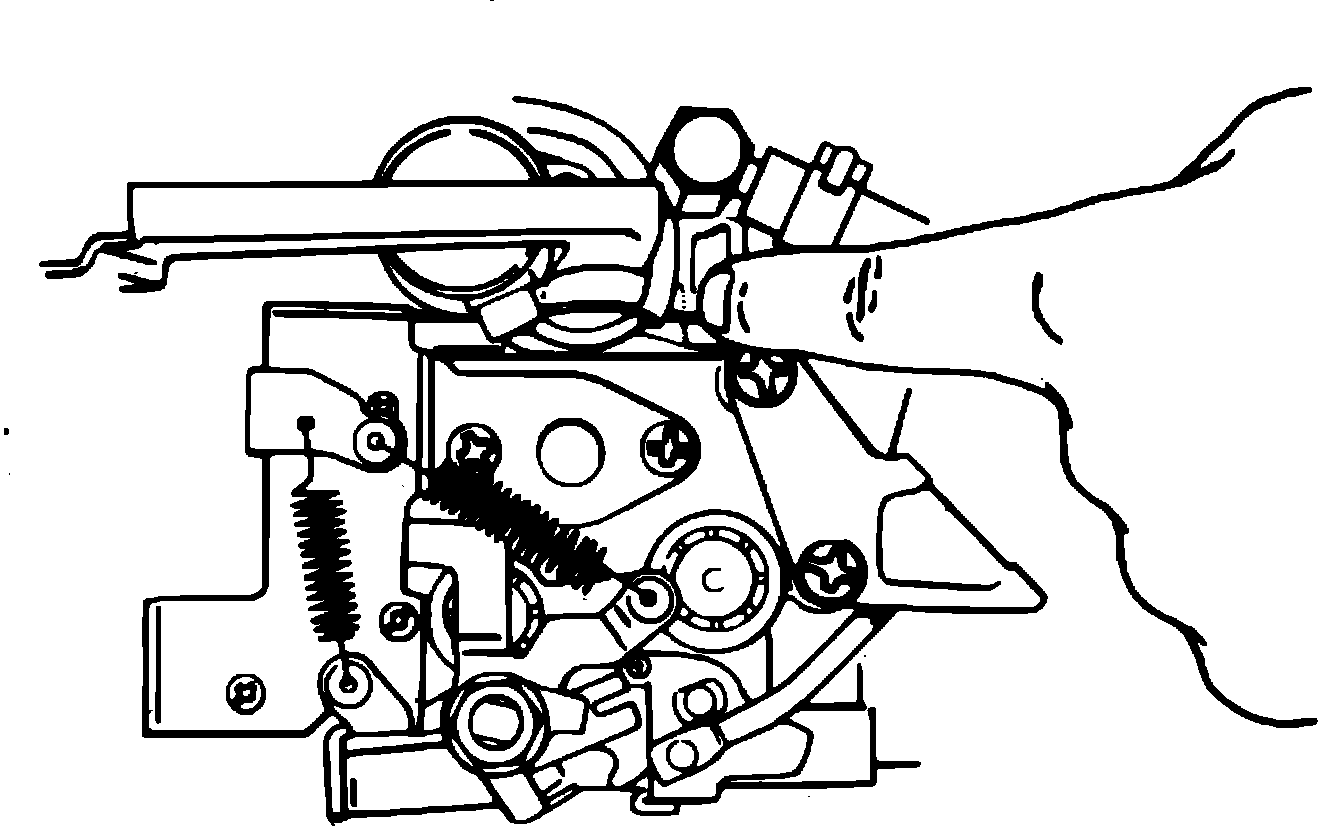

Fig. 16 Mixture Control (MC) solenoid check:

1. Remove duty check connector cap and connect terminals with lead (jumper) wire, Fig. 15.
2. Without starting engine, switch ignition on and off repeatedly and feel for mixture control solenoid vibrations, Fig. 16.
