System Specifications

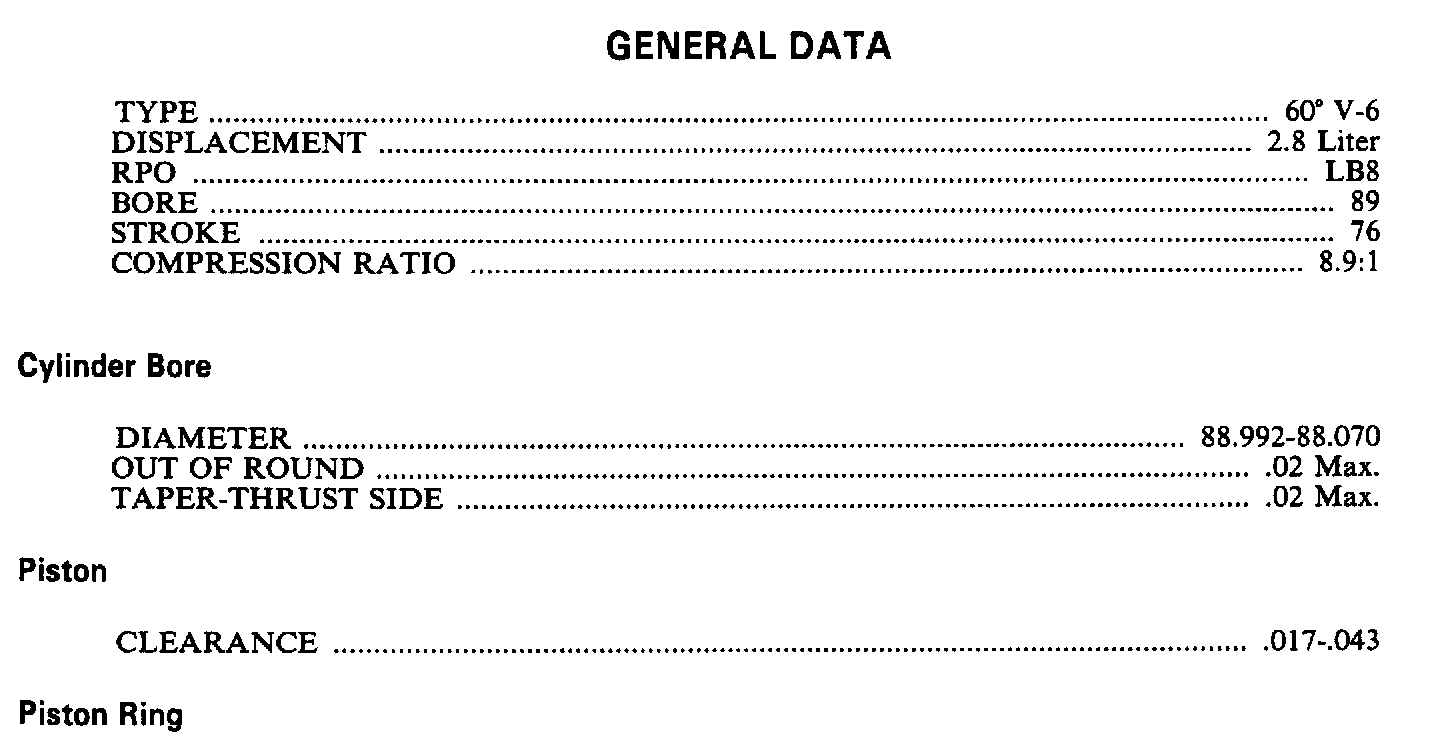

Engine Specifications:

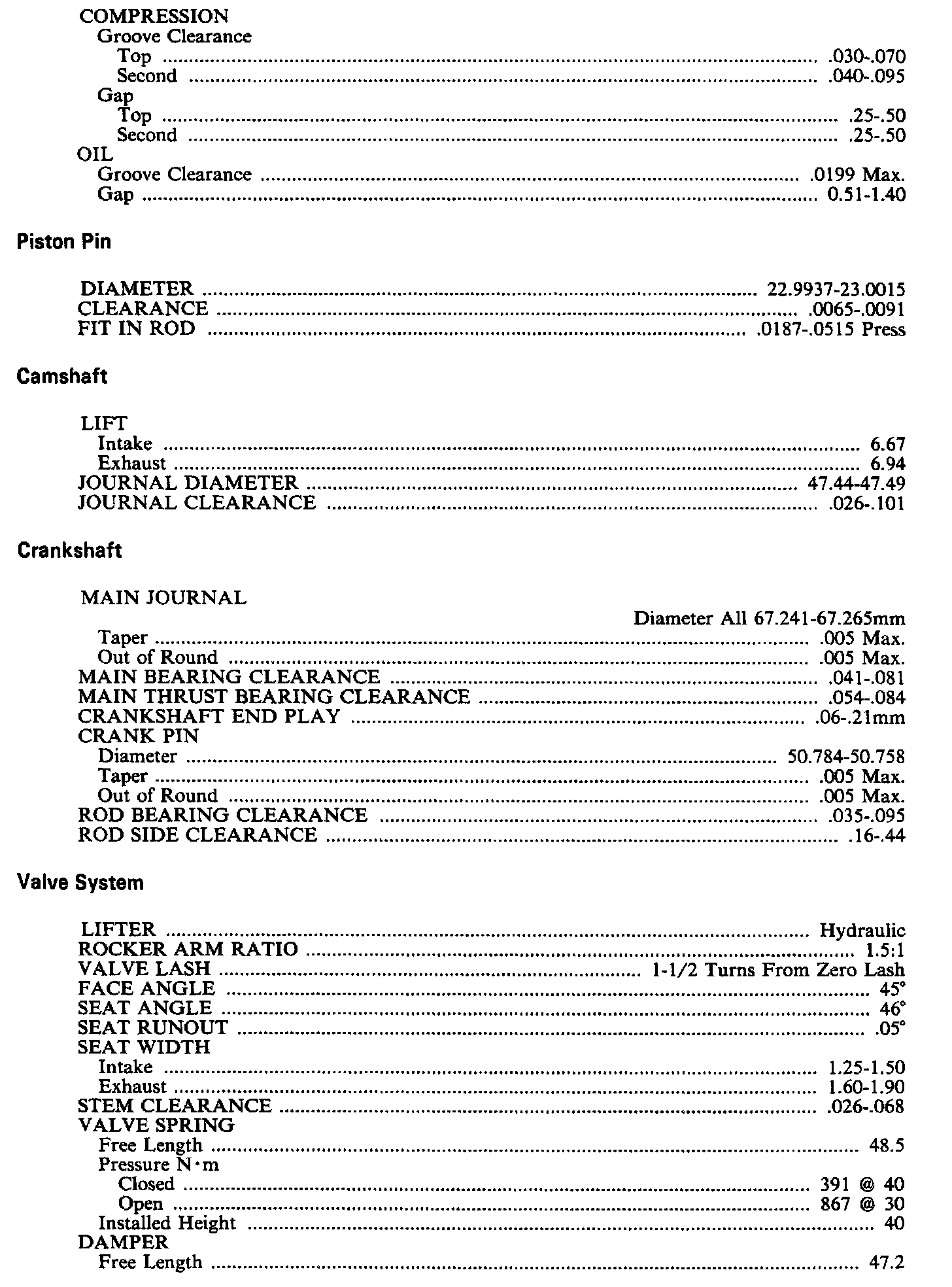

Continued Engine Specifications:




Continued Engine Specification:

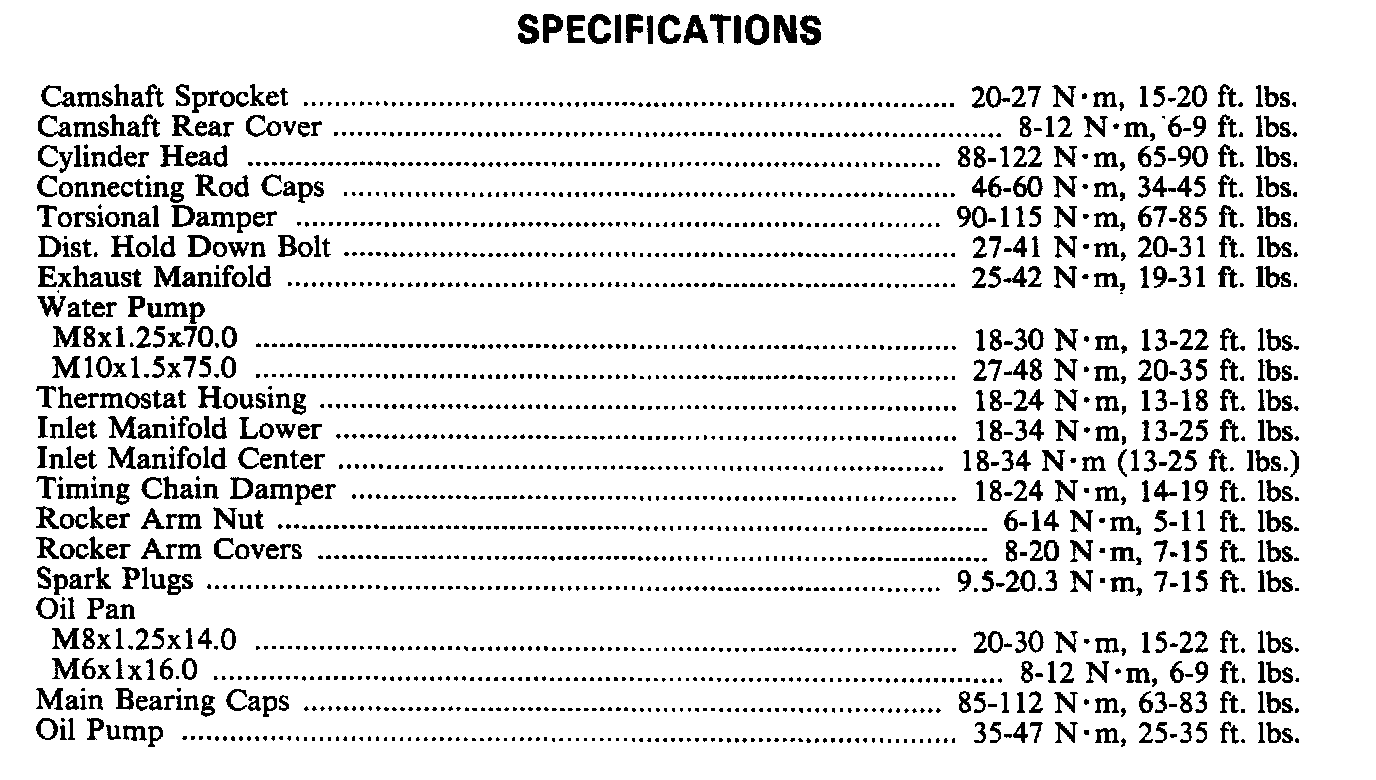

Torque Specifications:

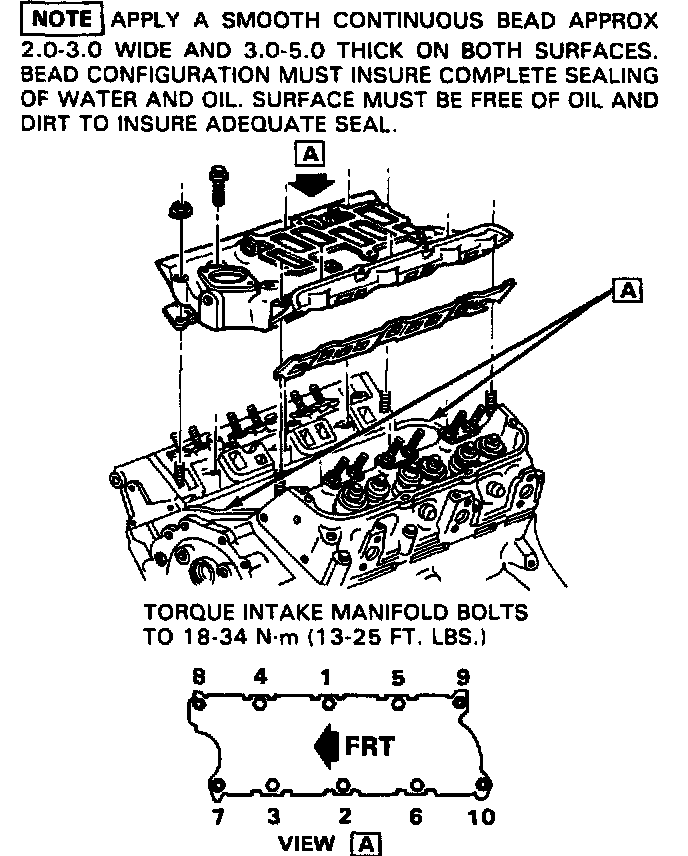

Intake Manifold Sequence:

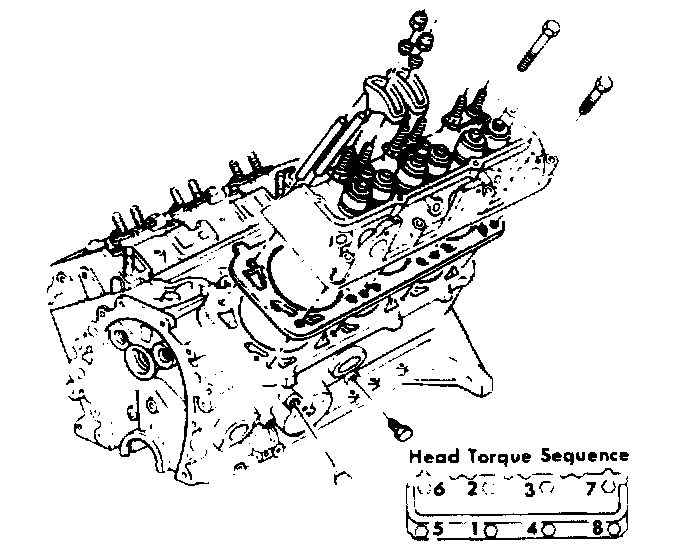

Cylinder Head Sequence:
