Transmission Control Systems

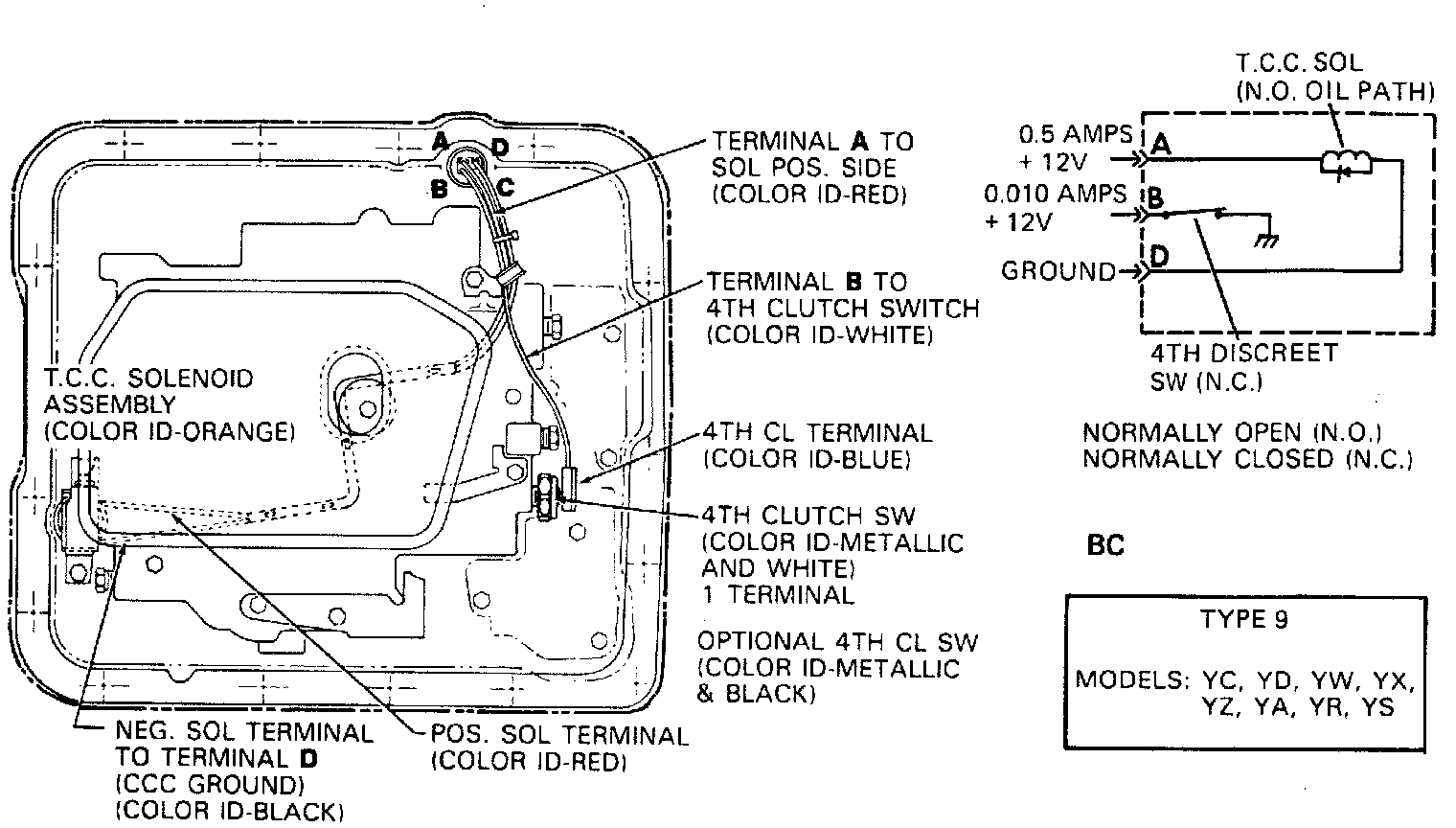

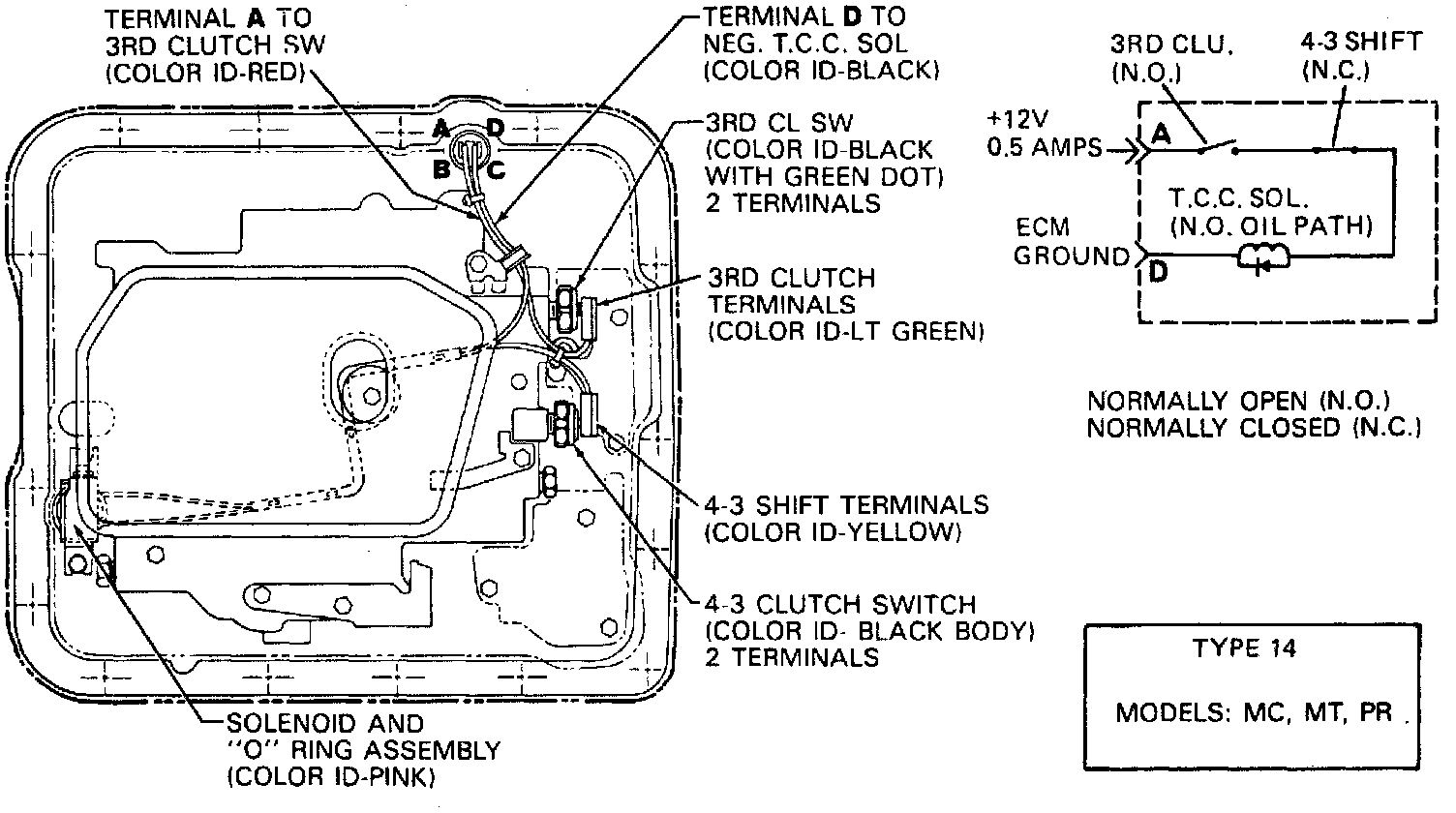

Part 1 Of 11:

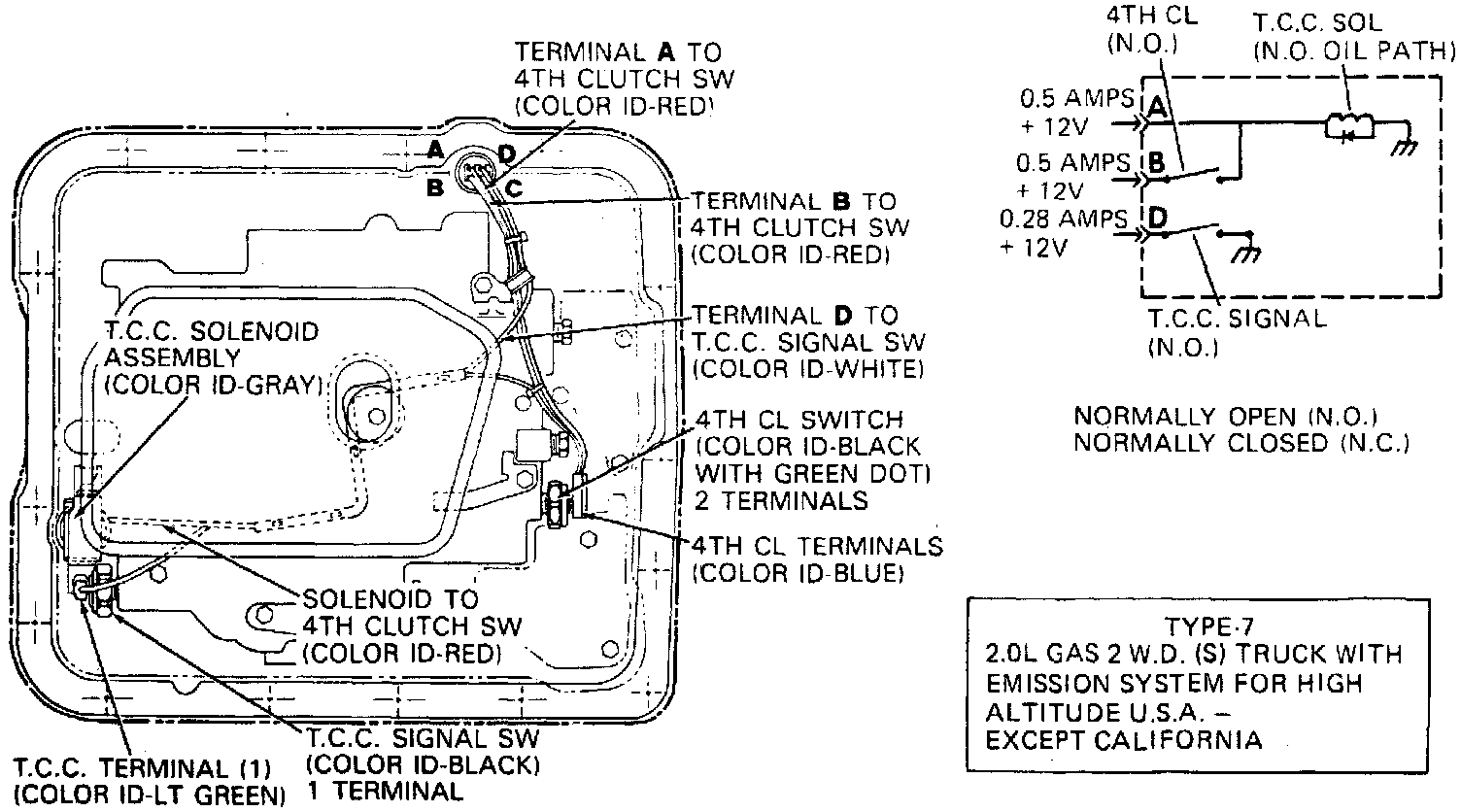

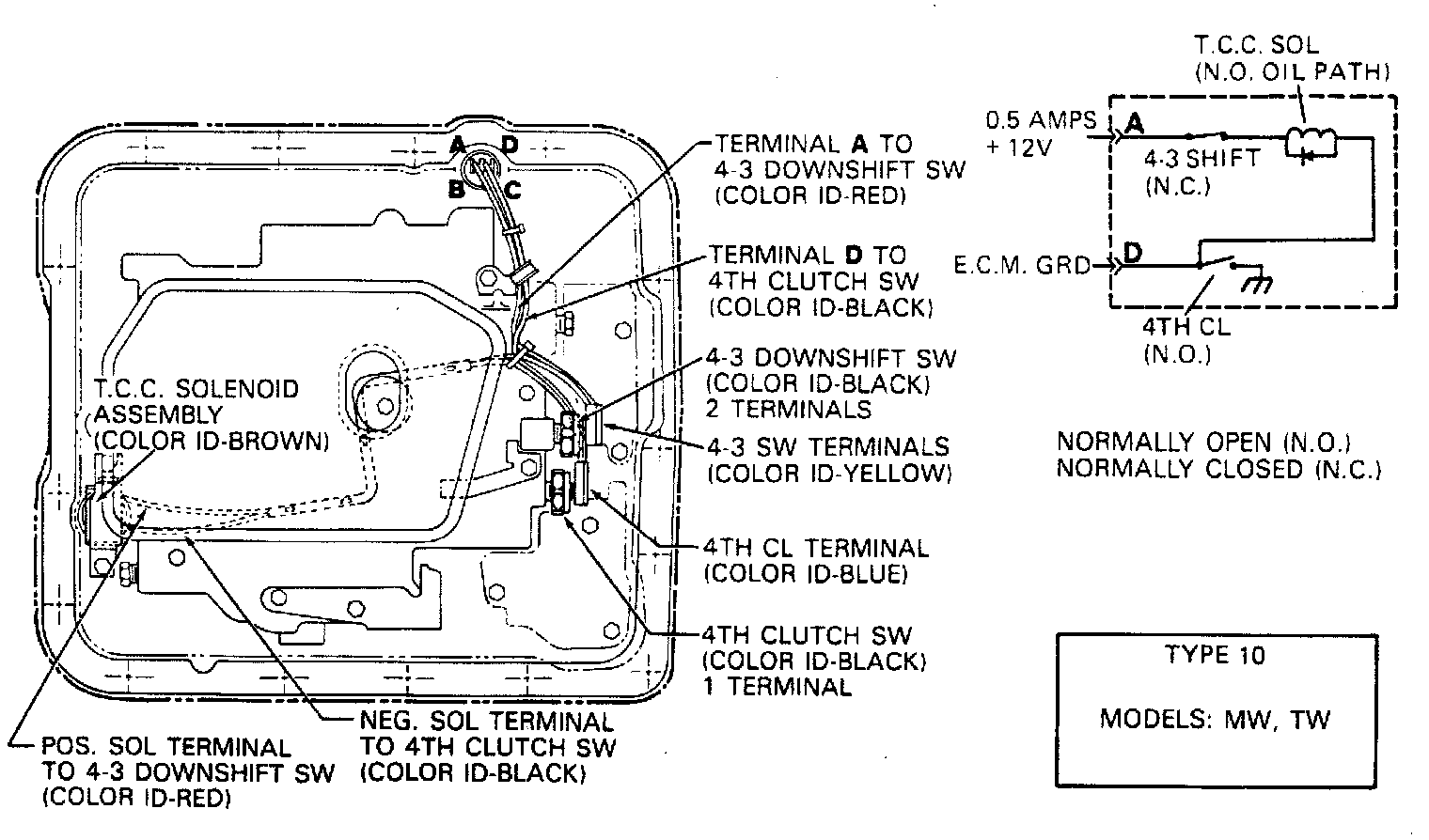

Part 2 Of 11:

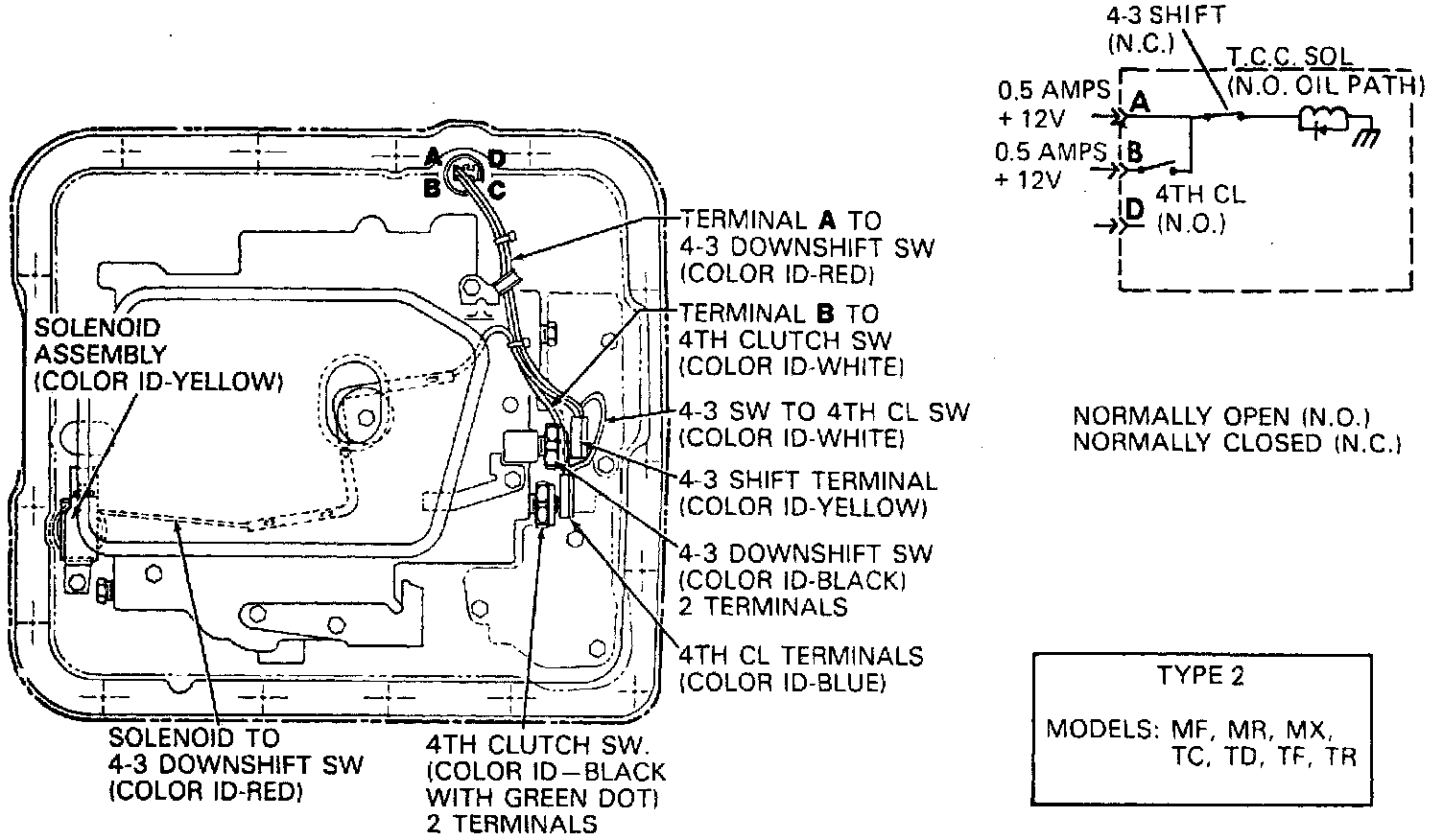

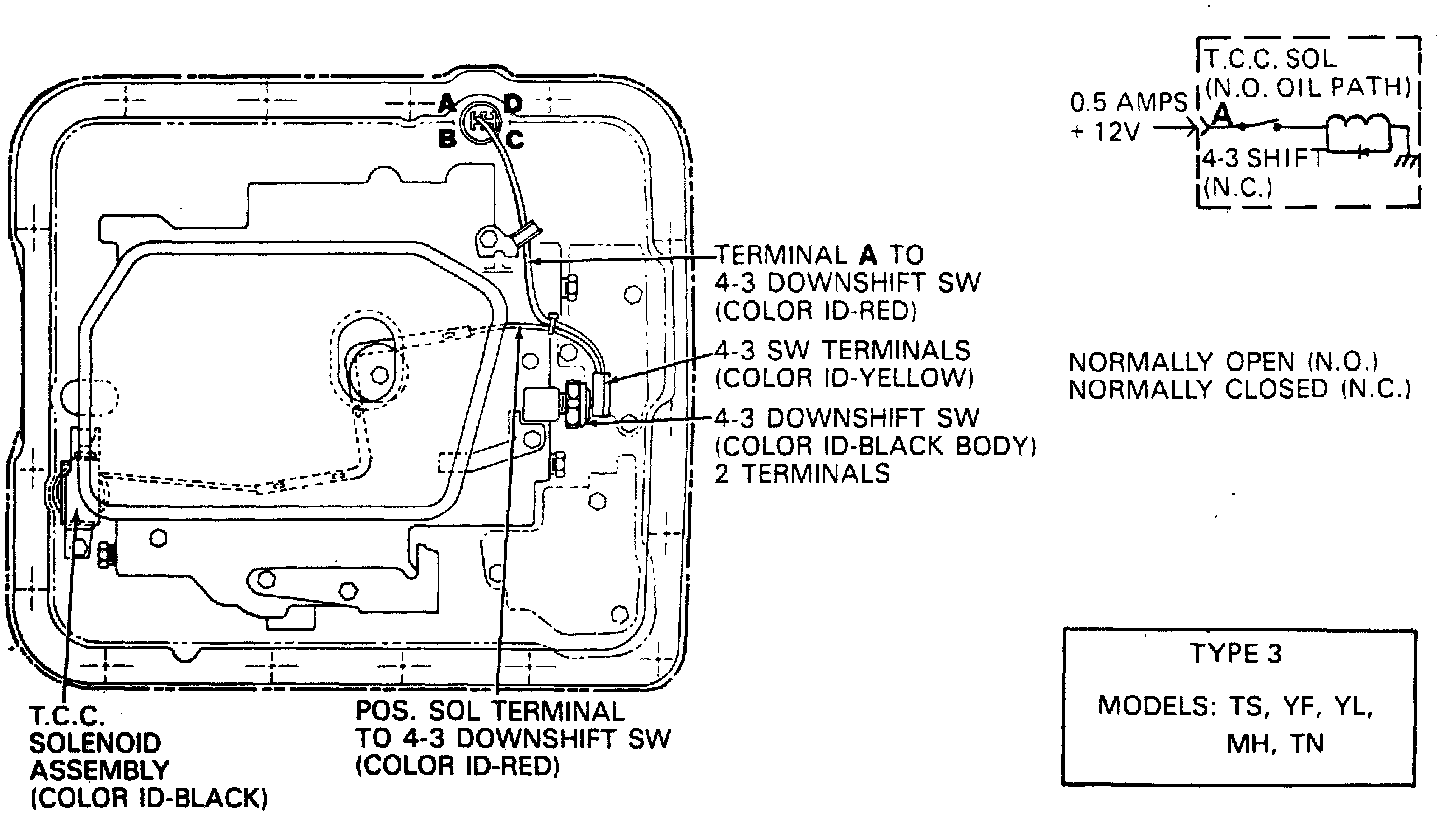

Part 3 Of 11:

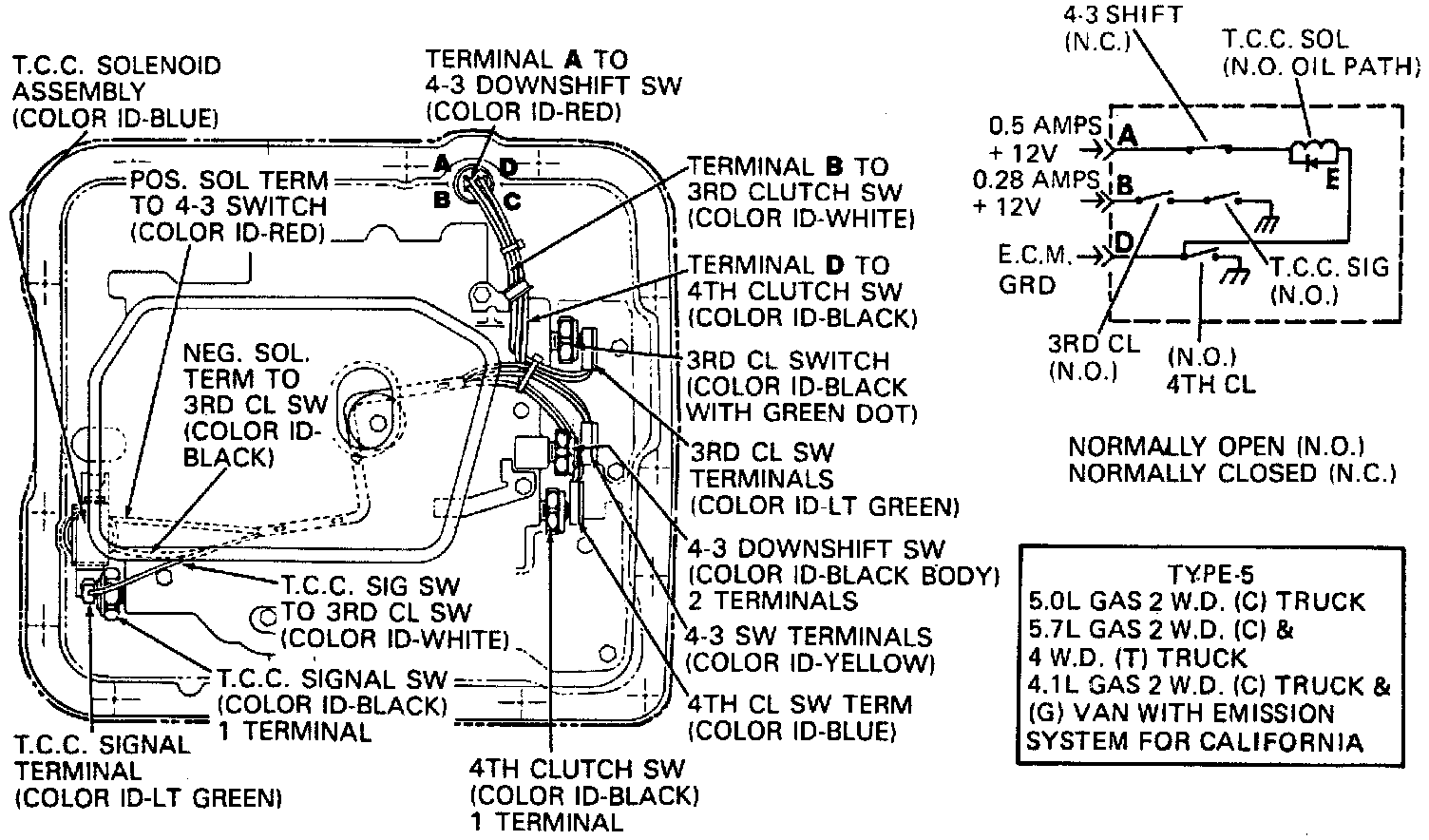

Part 4 Of 11:

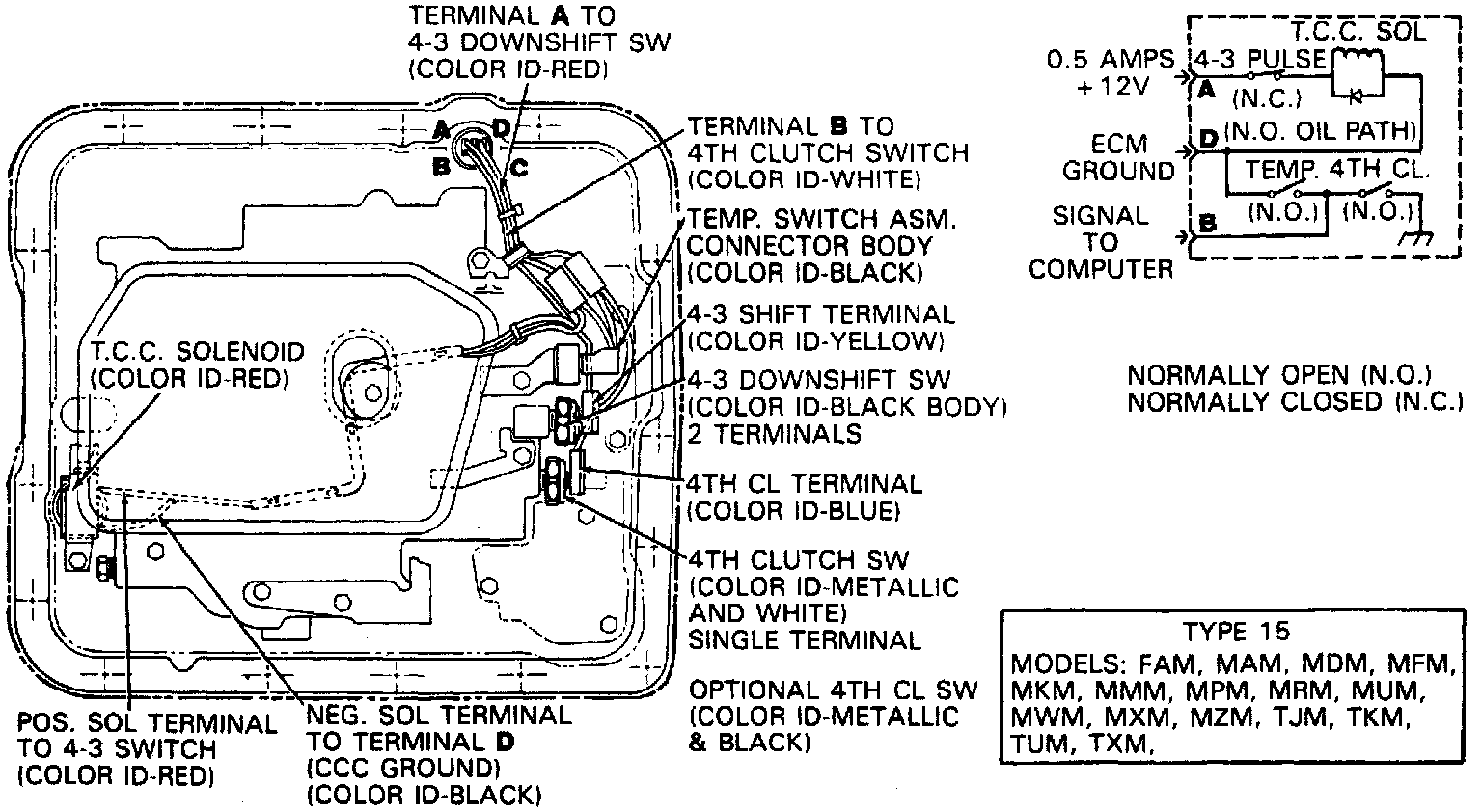

Part 5 Of 11:

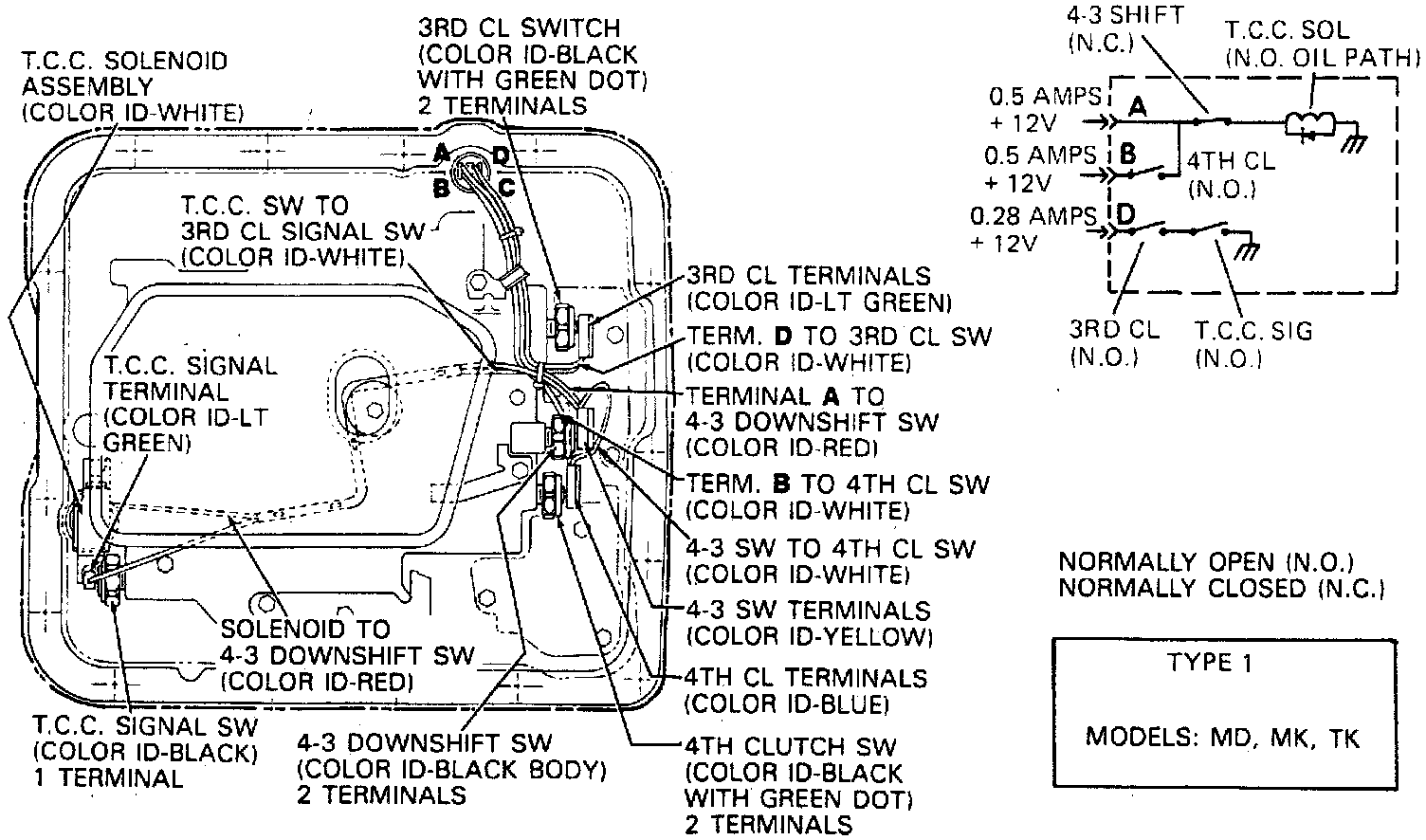

Part 6 Of 11:

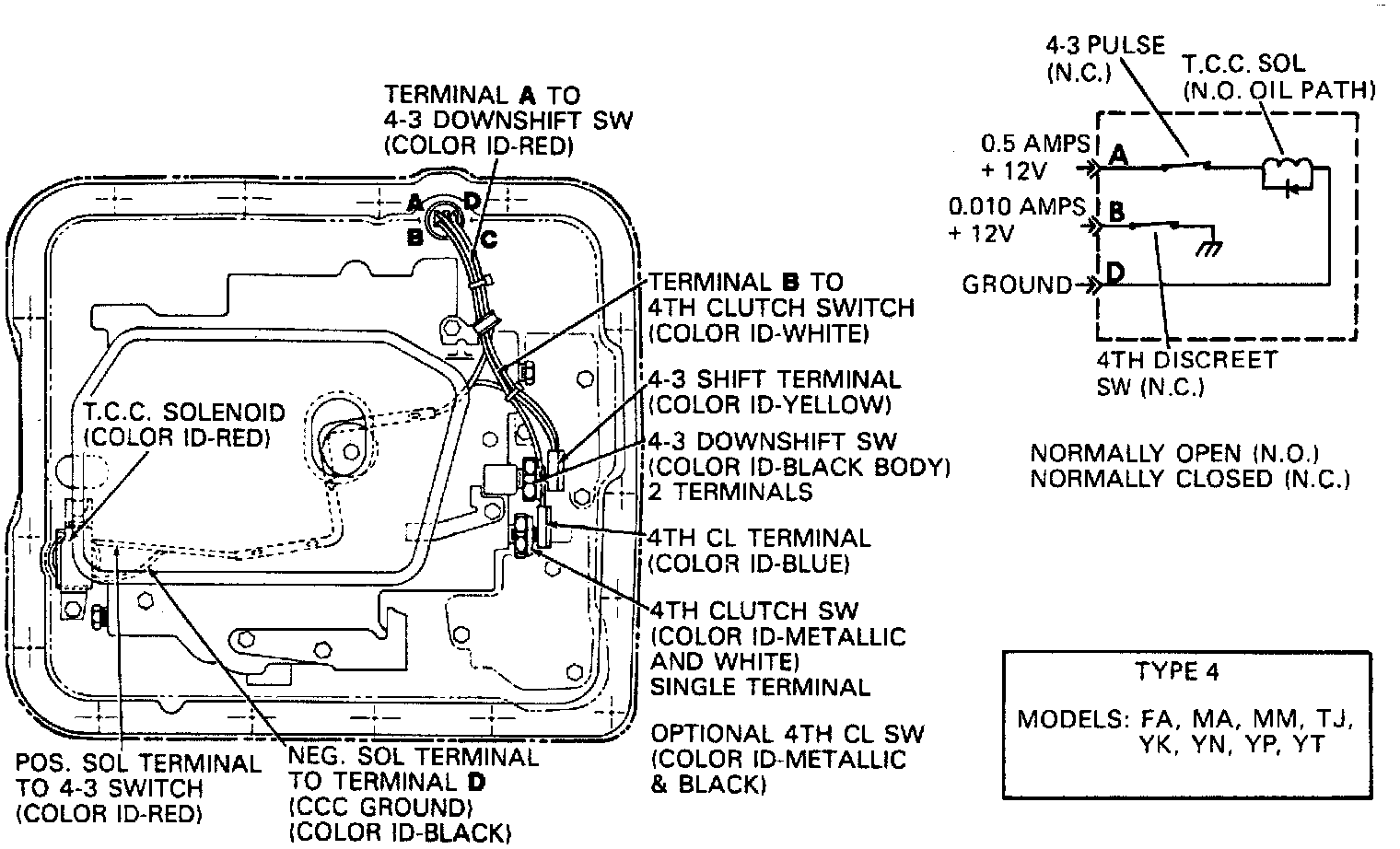

Part 7 Of 11:

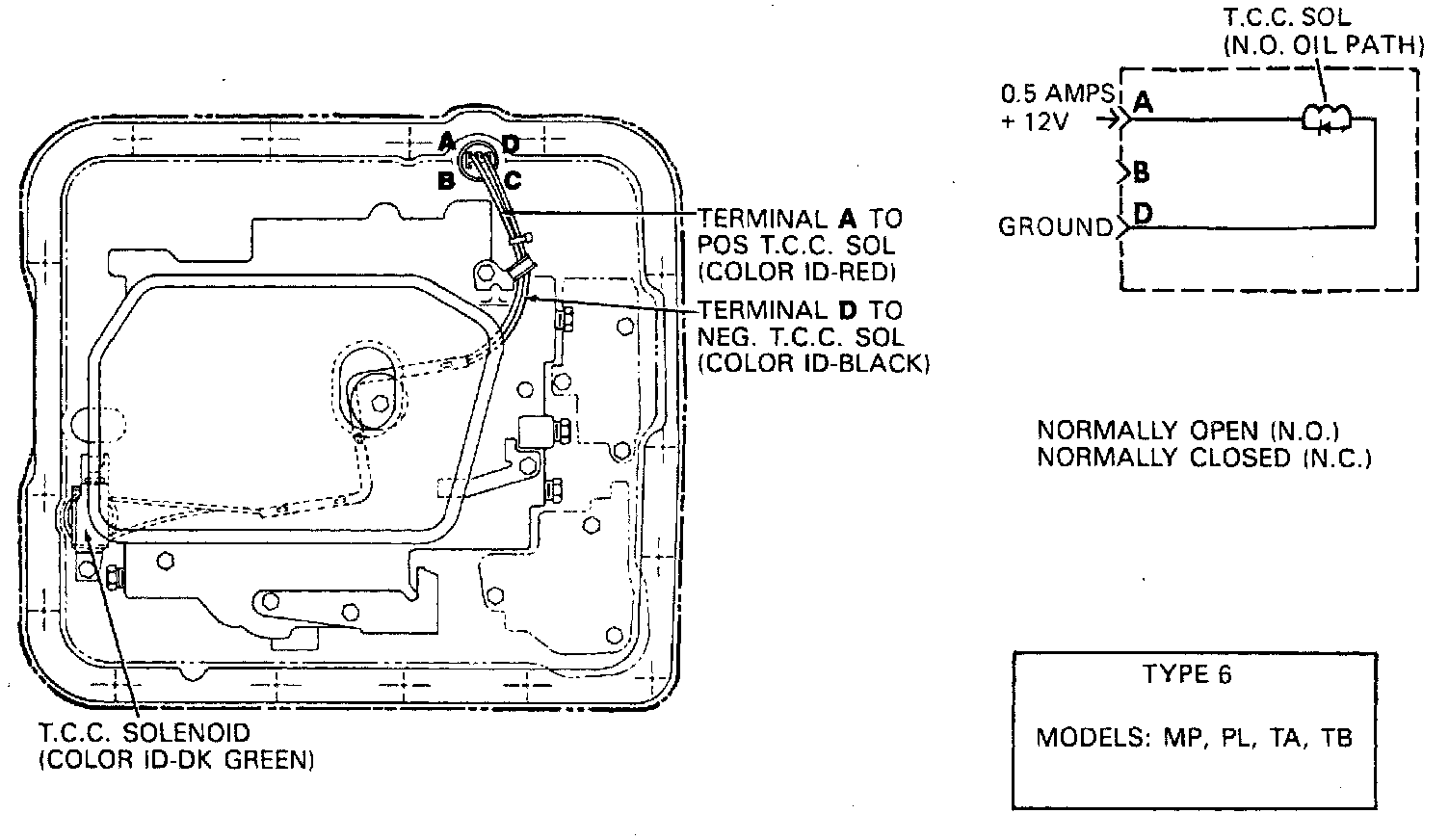

Part 8 Of 11:



Part 9 Of 11:



Part 10 Of 11:



Part 11 Of 11:
