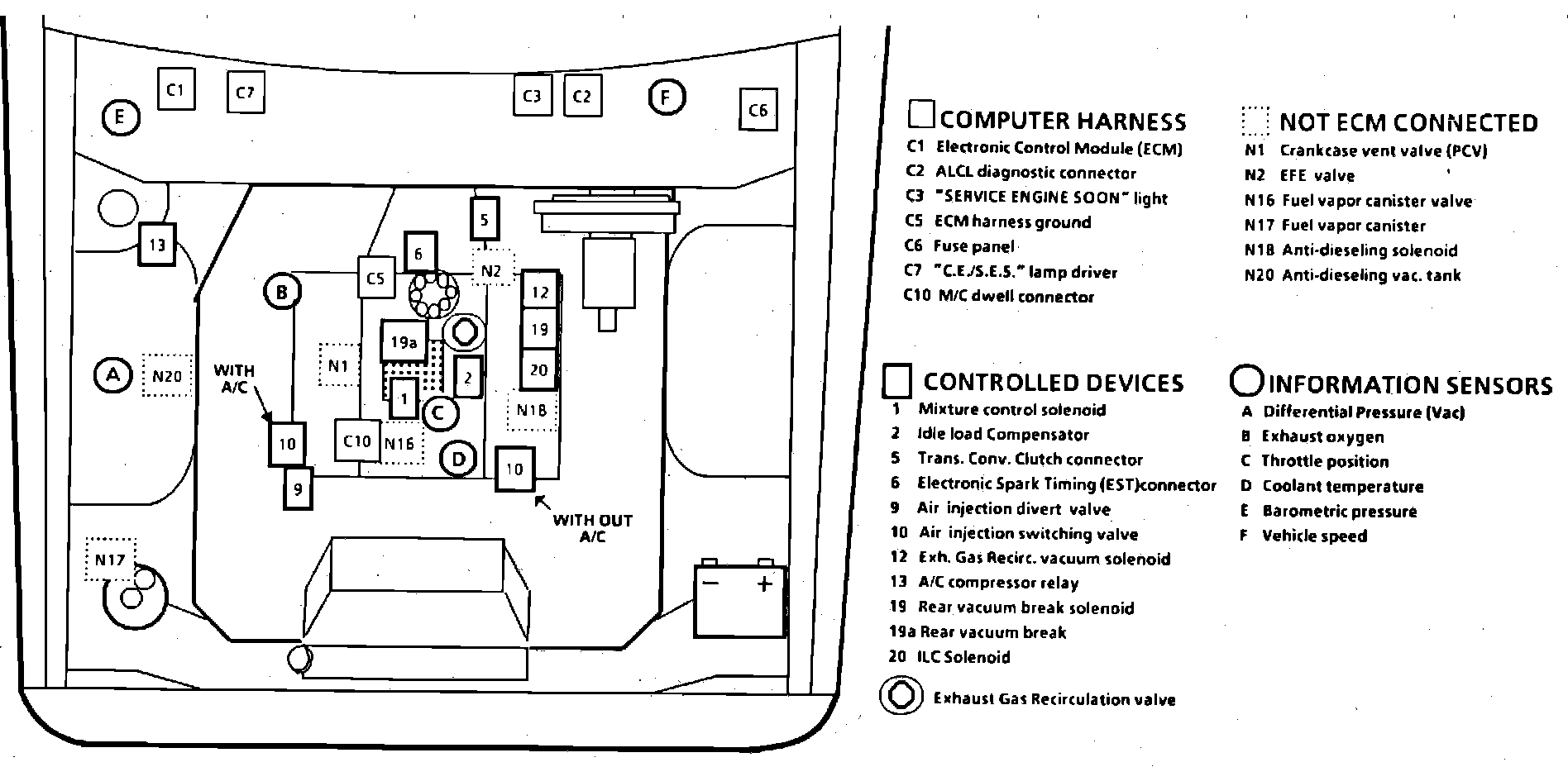

Engine Control Module: Locations

Engine & Underhood Components.:




Under RH Side Of I/P

Applicable to: Exc. Brougham With V8-307/5.0L, VIN Y
