Waveform - Zoomed In - Good: Introduction
The Waveform Data Table is listed first. This table contains supporting information about the waveform illustration and should be used in conjunction with it.

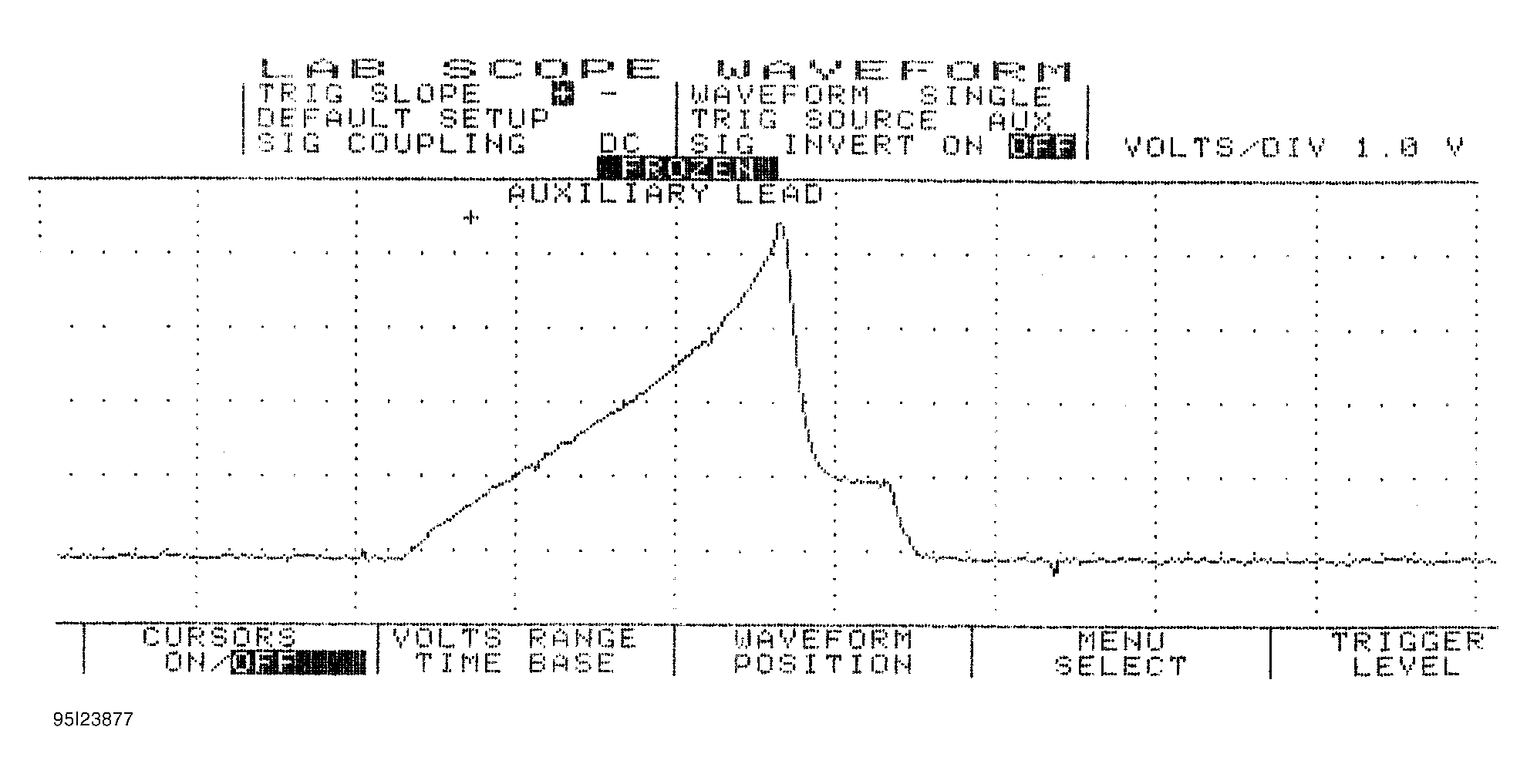

The waveform illustration follows after the table.
NOTE:
A description of the vehicle the waveform came from is not available.
WAVEFORM DATA
| Application | Specification |
|---|---|
| Pattern Type | Current |
| Current Base | 1 Amp |
| Time Base | .5 Millisecond |
| Oscilloscope Used | Unknown |
| Pattern Represents | Single Injector |
| Injector Driver Type | Current Controlled |
| Side of Circuit That Driver Switches | Ground |
| Injector On-Time Shown | N/A |
| Conditions | Unknown |
| Cursors On-Screen | No |
| Cursors Are Measuring | N/A |
| Status | Known Good Pattern |
