Air Flow Meter/Sensor: Locations

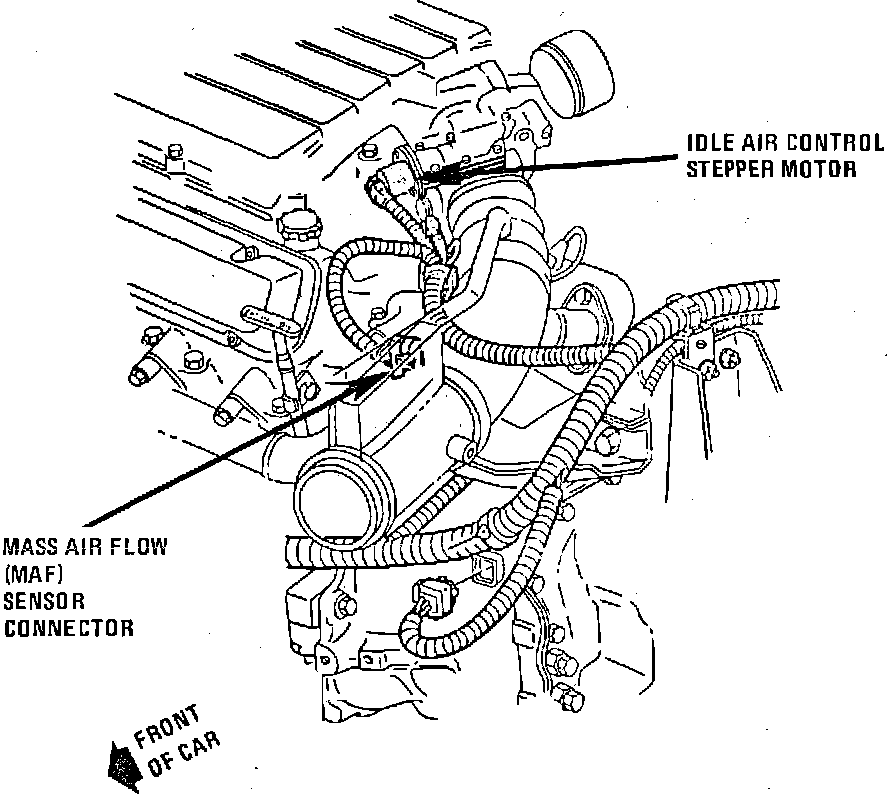

Top LH Side Of V6-173/2.8L:




Top LH Side Of Engine On Right Of Intake Hose

Applicable to: 8L (VIN W) Engine
