System Performance Check (Fuel System Diag.): Notes
Perform the Diagnostic Circuit Check before beginning this procedure.

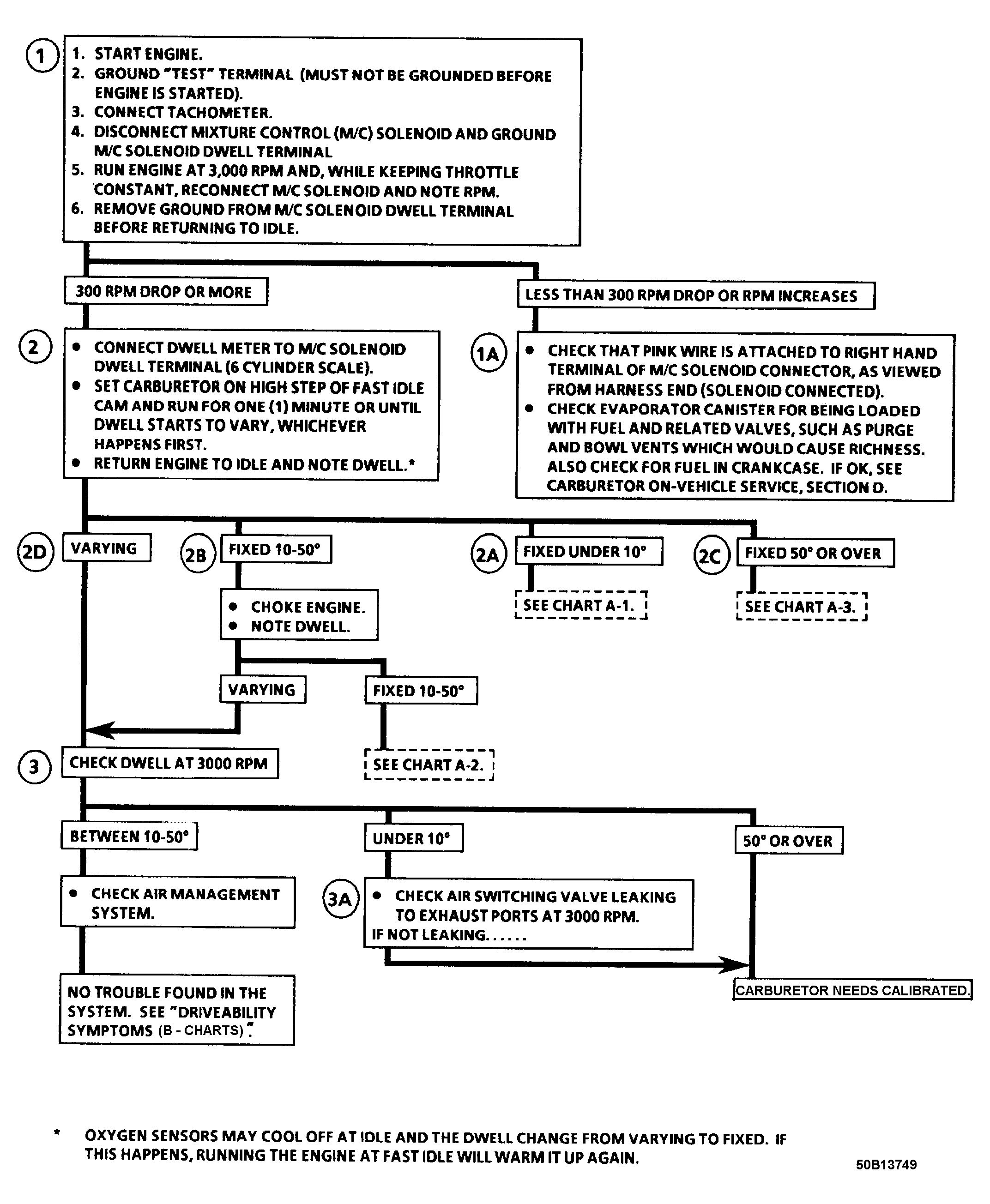

- See Figure for the System Performance Check (flow chart).

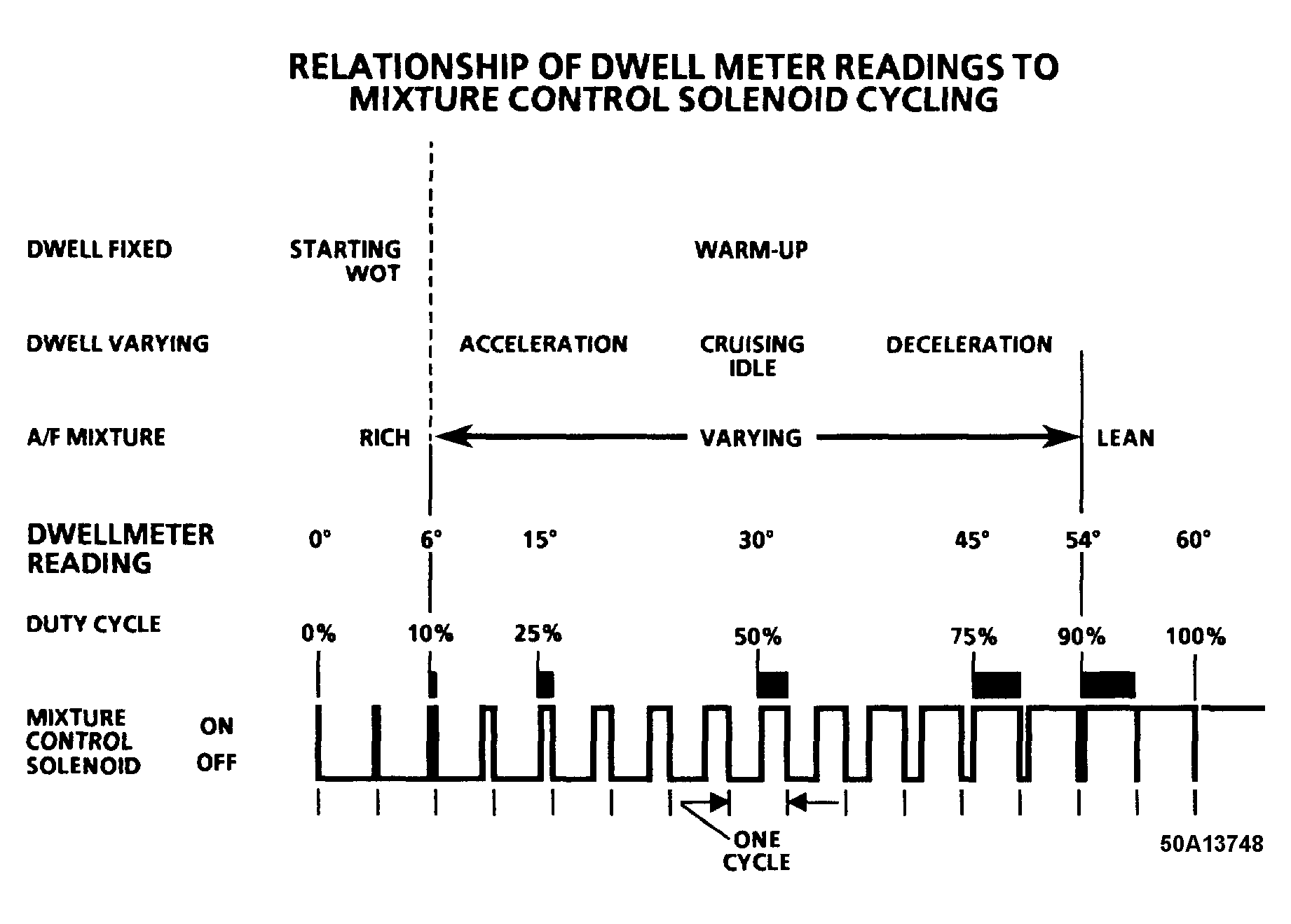

- See Figure for the accompanying M/C Solenoid dwell table.
NOTE:
The A-charts, trouble code charts, B-charts, and C-charts are not contained in this article. They can be found in the appropriate article in the ENGINE PERFORMANCE section. Therefore, if this procedure direct you to one of these charts, proceed to the ENGINE PERFORMANCE section.
