Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Diode | In A/C wiring harness, below right side of dash. |
| A/C-Heater Blower Resistors | In engine compartment on A/C-heater assembly. |
| ALDL Connector | Below right side of dash. |
| Defogger Circuit Breaker | Under left side of dash. |
| Diagnostic Dwell Meter Connector | Taped to wiring harness, at rear of engine. |

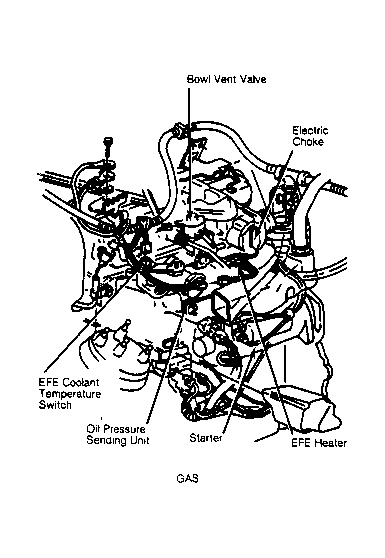

| EFE Heater | Below carburetor on intake manifold. See Figure. |
| Fuse Block | Below left side of dash. |
| Fusible Links A (Red) Defogger Circuit Breaker | At starter solenoid. |
| Fusible Links B (Red) Charging System | At starter solenoid. |
| Fusible Links G (Red) A/C System | At starter solenoid. |
