Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

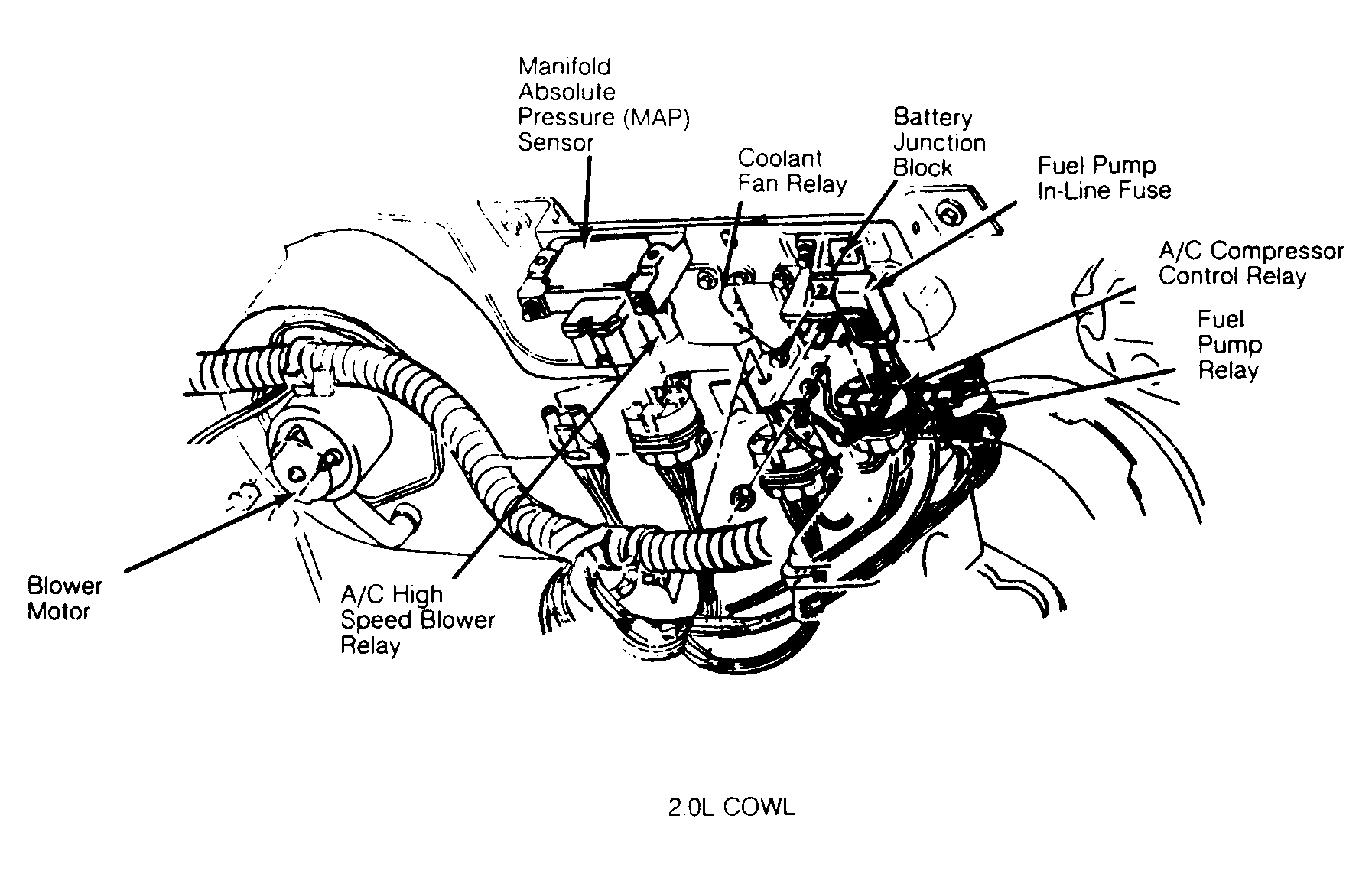

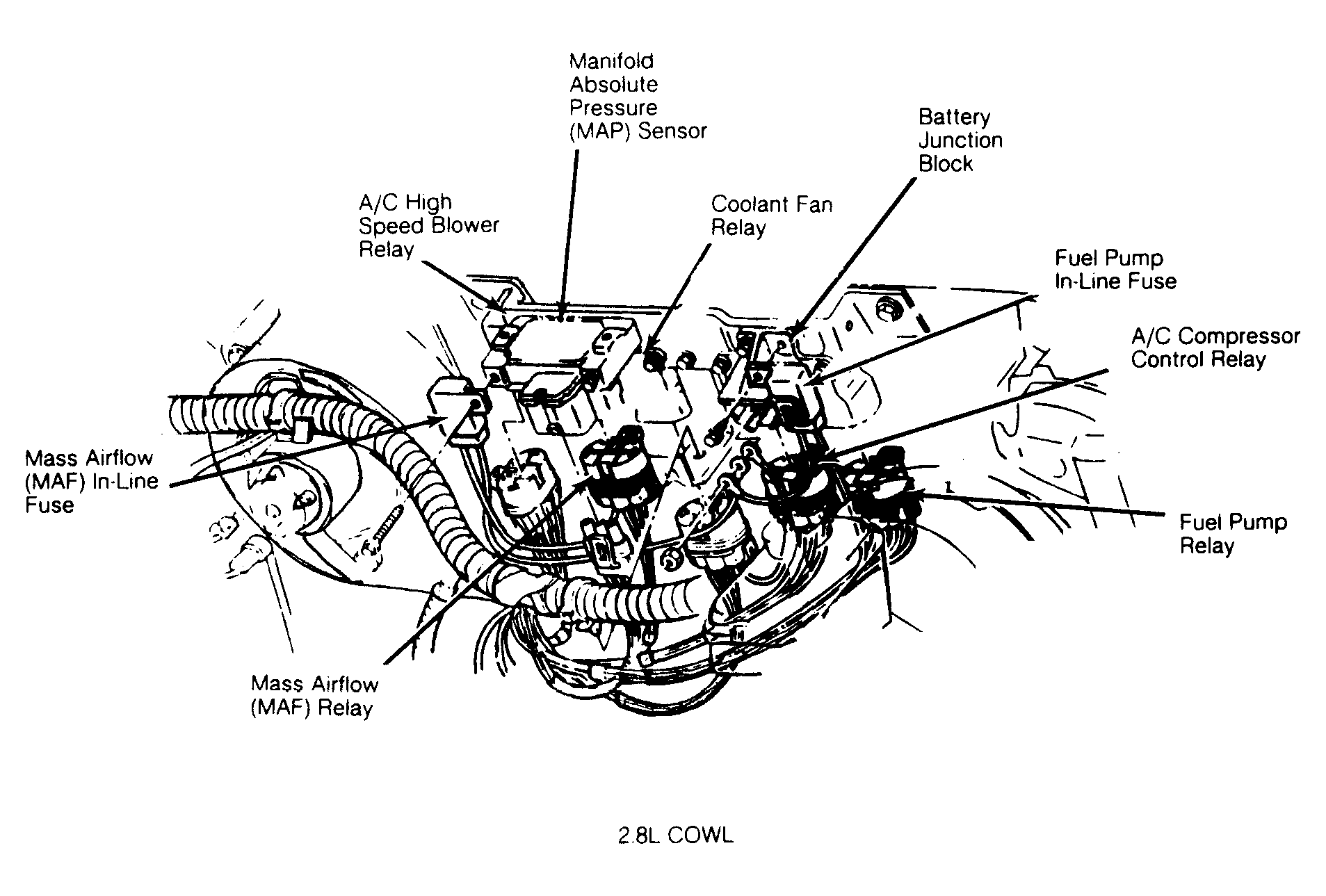

| Fuel Pump In-Line Fuse | On relay bracket, at center of cowl. See Figure & 2. | |
| Fuel Pump Prime Connector | Above transmission, at left rear of engine. | |
| Fuel Pump Prime Connector (2.0L VIN 1 & 2.8L VIN W) | Behind left front strut tower near firewall. | |
| Fuse Block | Behind lower left side of dash panel. | |
| Fusible Links | ||
| A (Red) Coolant Fan Relay | At battery junction block. See Figure & 2. | |
| B (Red) Charging System | Near starter assembly. | |
| C (Red) Charging System | Near starter assembly. | |
| D (Red) Accessories | Near starter assembly. | |
| Mass Airflow (MAF) In-Line Fuse | On relay bracket, at center of cowl. See Figure . | |
