Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Module | Behind right side of dash panel, above glove box. |

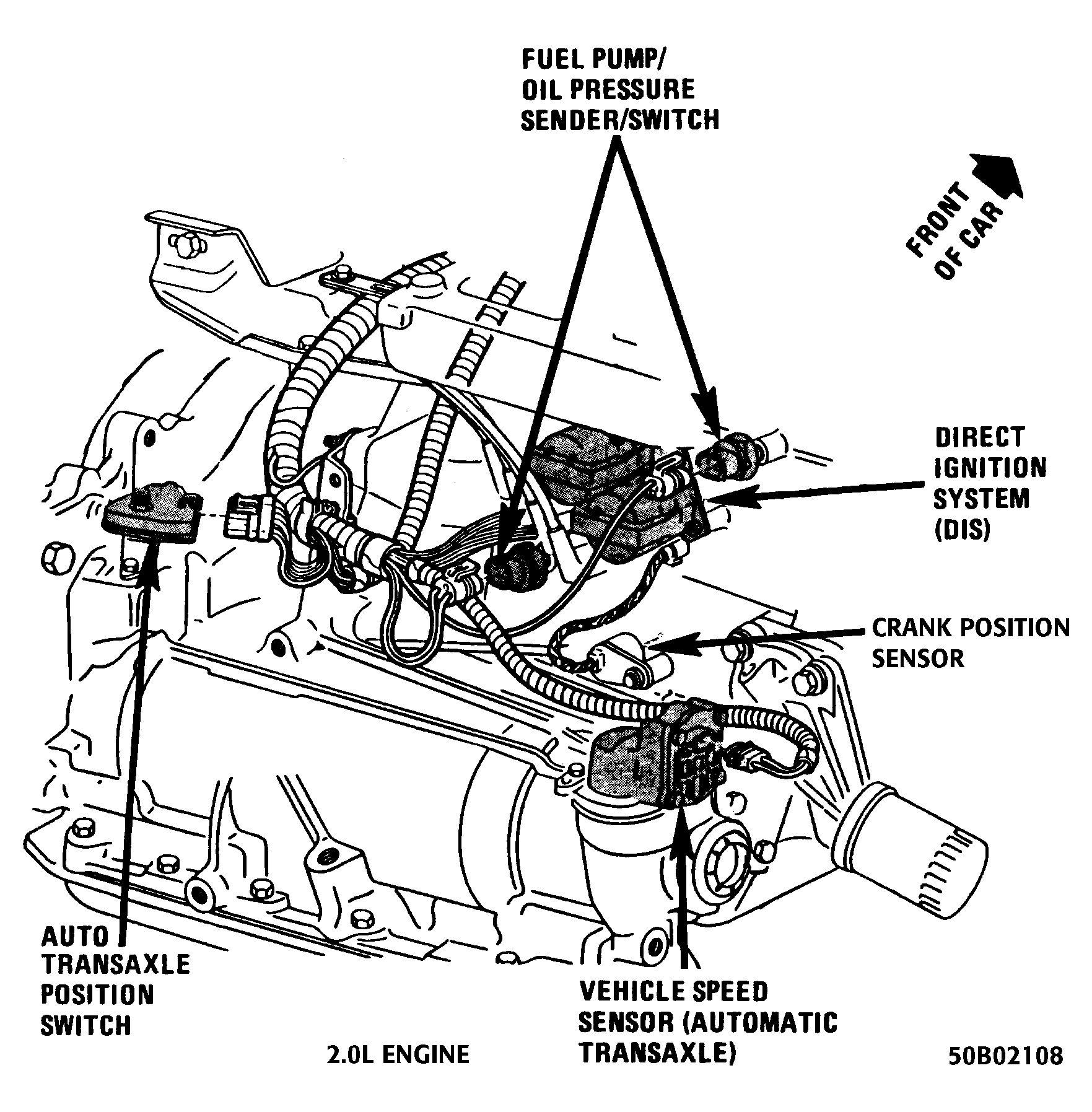

| Direct Ignition System (DIS) Module (2.0L) | Below intake manifold, at rear of engine. See Figure . |

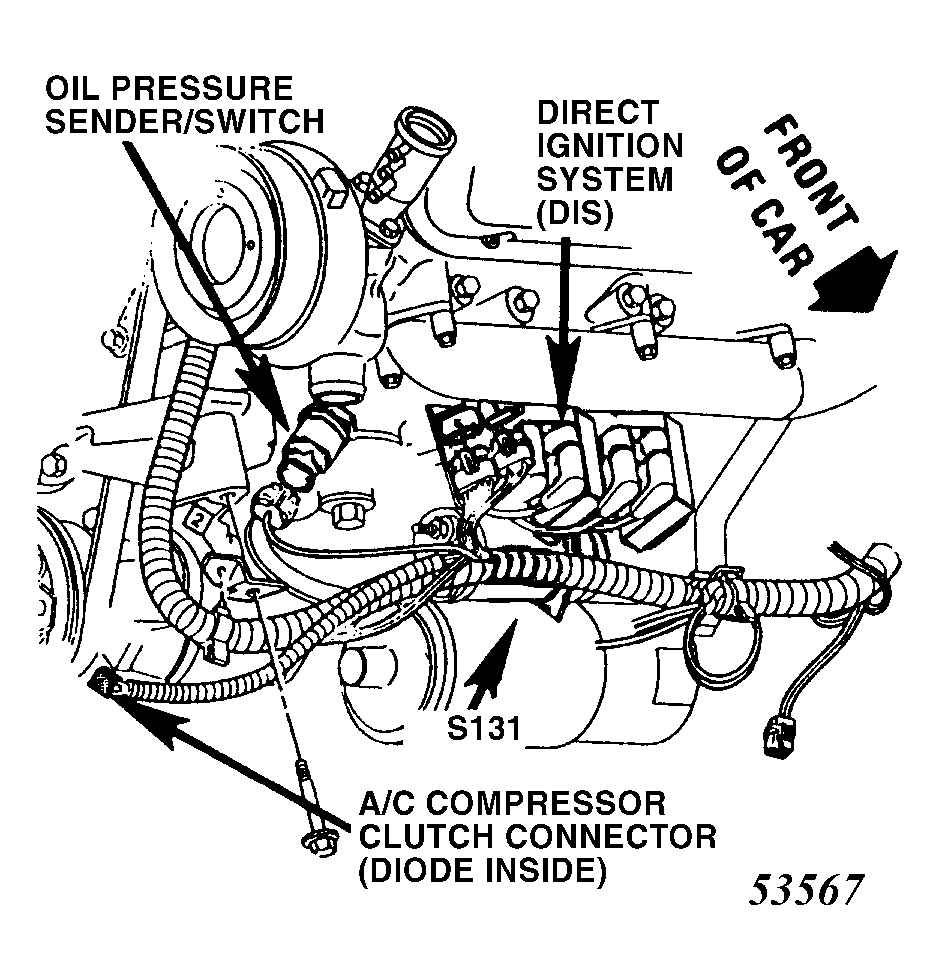

| Direct Ignition System (DIS) Module (2.8L) | Below exhaust manifold, at front of engine. See Figure . |
| Electronic Control Module (ECM) | Behind right side of dash panel. |
| Low Coolant Module | Behind dash panel, to left of steering column. |
| Wiper/Washer Motor Module | On left front of cowl. |
