A/C Compressor Control Relay

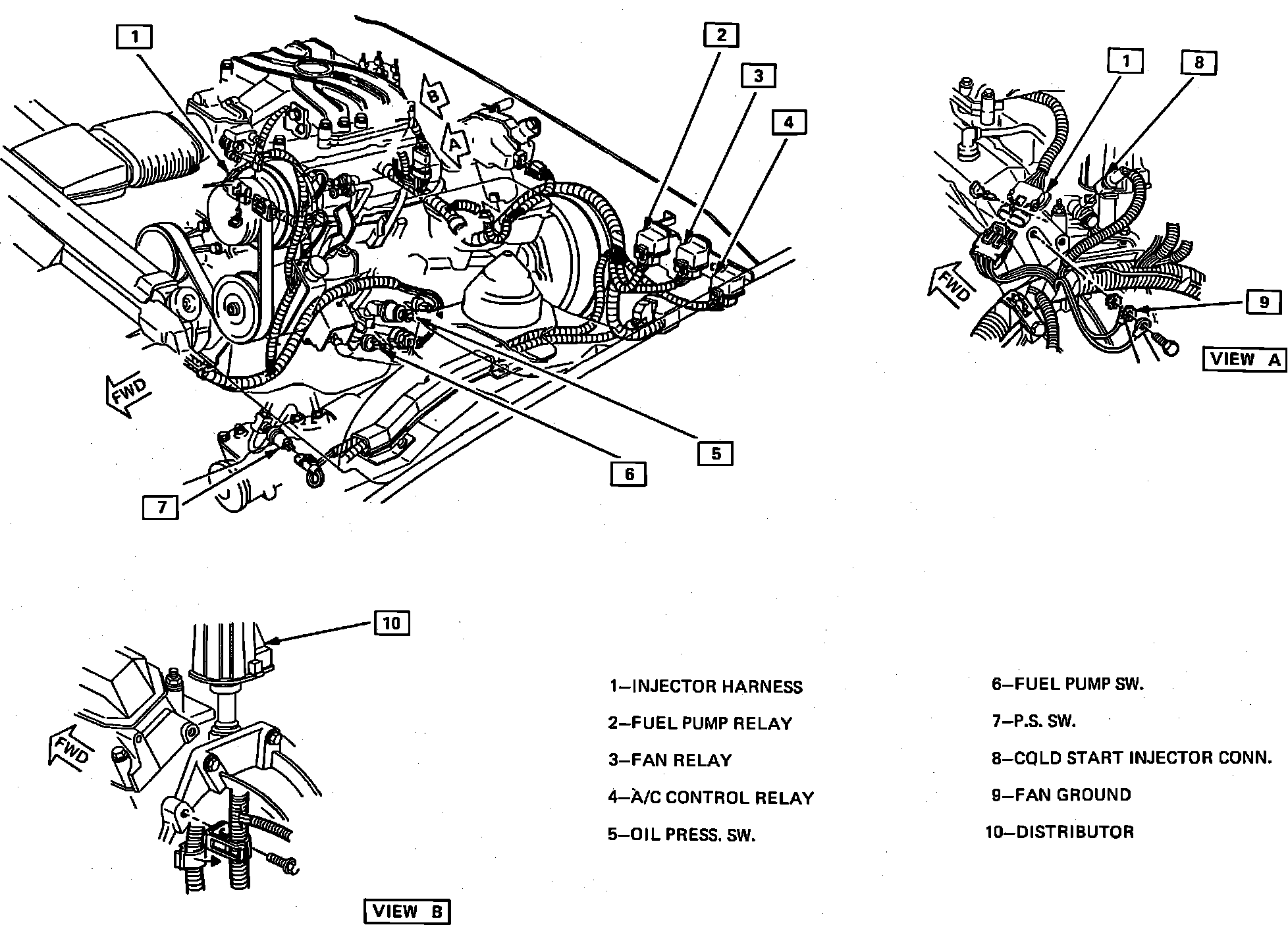

LH Side Of Engine Compartment.:




LH Side Engine Components.:




LH Rear Corner Of Engine Compartment

Applicable to: V6-173/2.8L Engine
