Electronic Spark Control Module

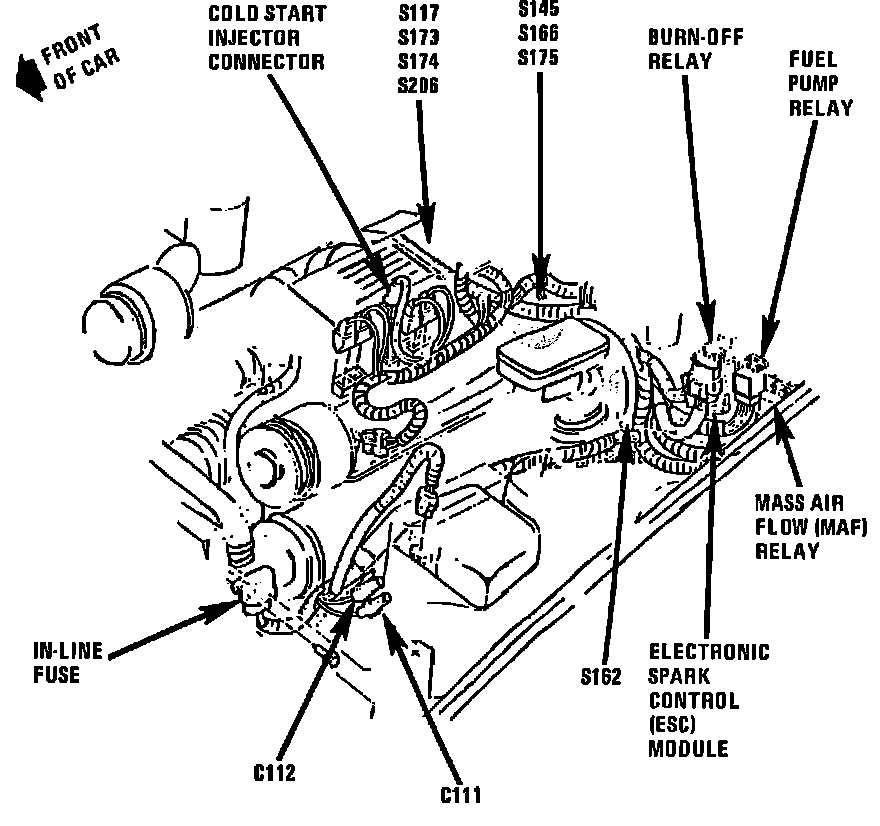

LH Side Of Engine Compartment.:




LH Rear Corner Of Engine Compartment

Applicable to: V8-305/5.0L (VIN F) & V8-350/5.7L Engines
