System Specifications


BATTERY SPECIFICATIONS

I Of III:





II Of III:





III Of III:

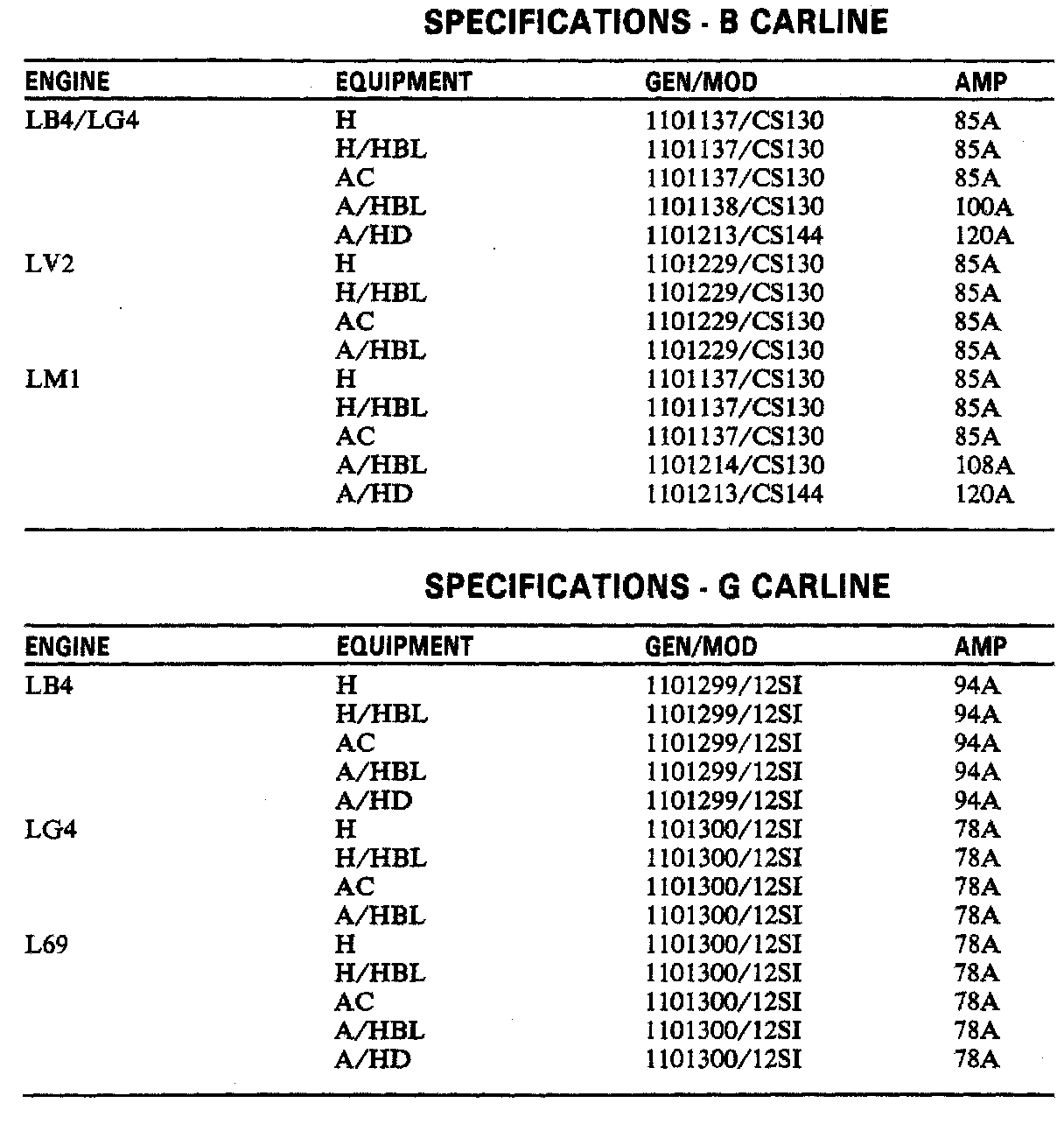

ALTERNATOR SPECIFICATIONS

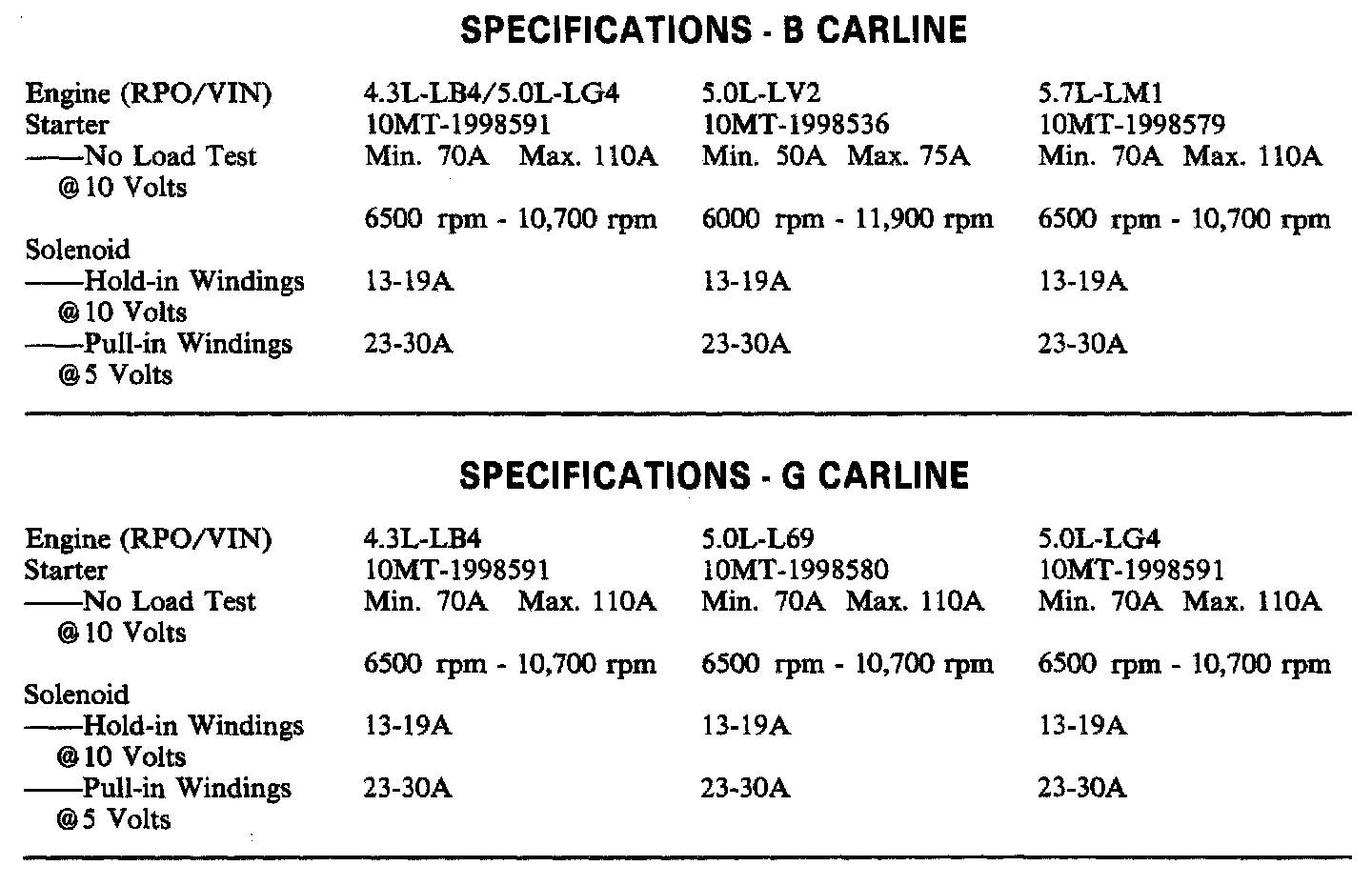

STARTER SPECIFICATIONS
