System Specifications

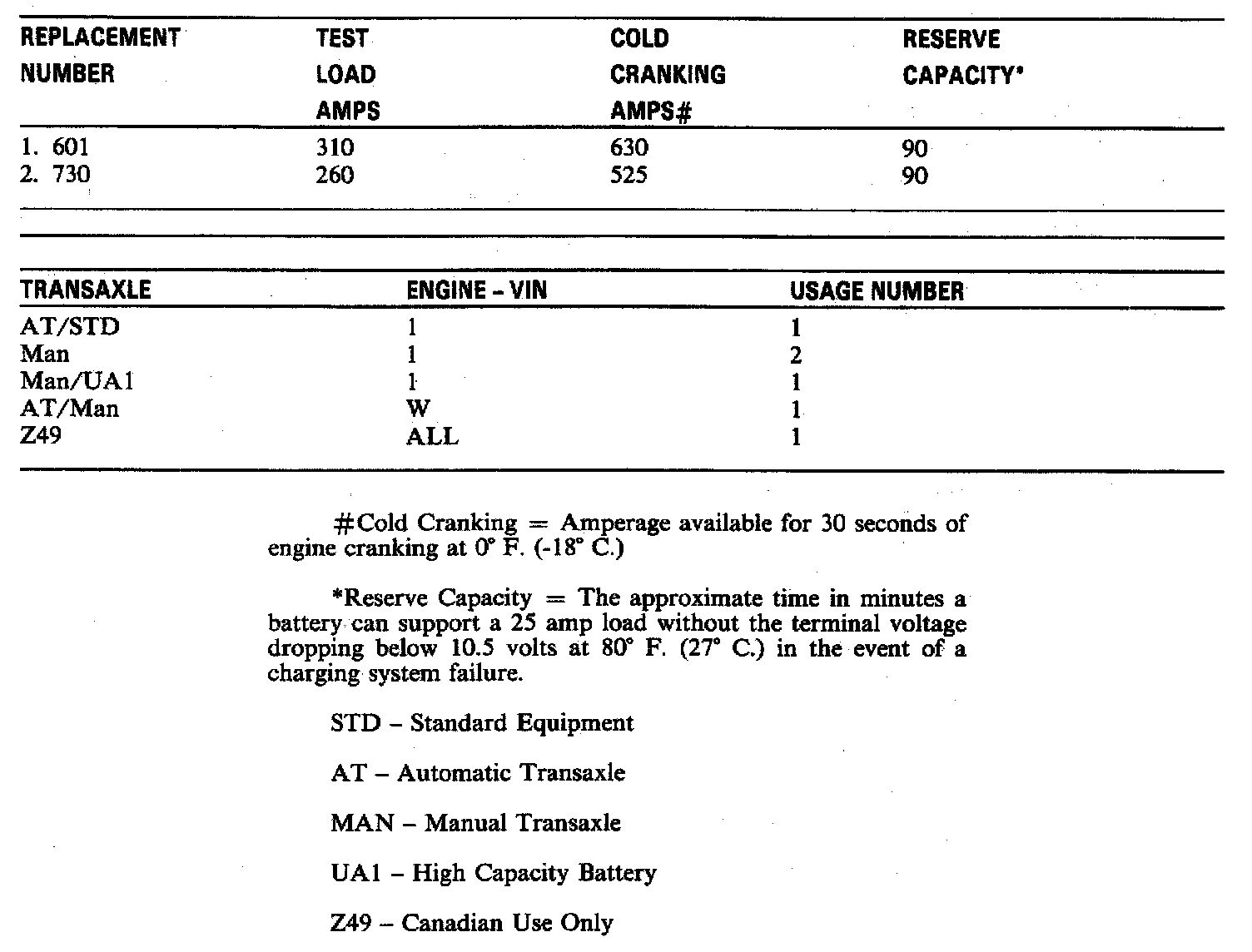

BATTERY SPECIFICATIONS





ALTERNATOR SPECIFICATIONS

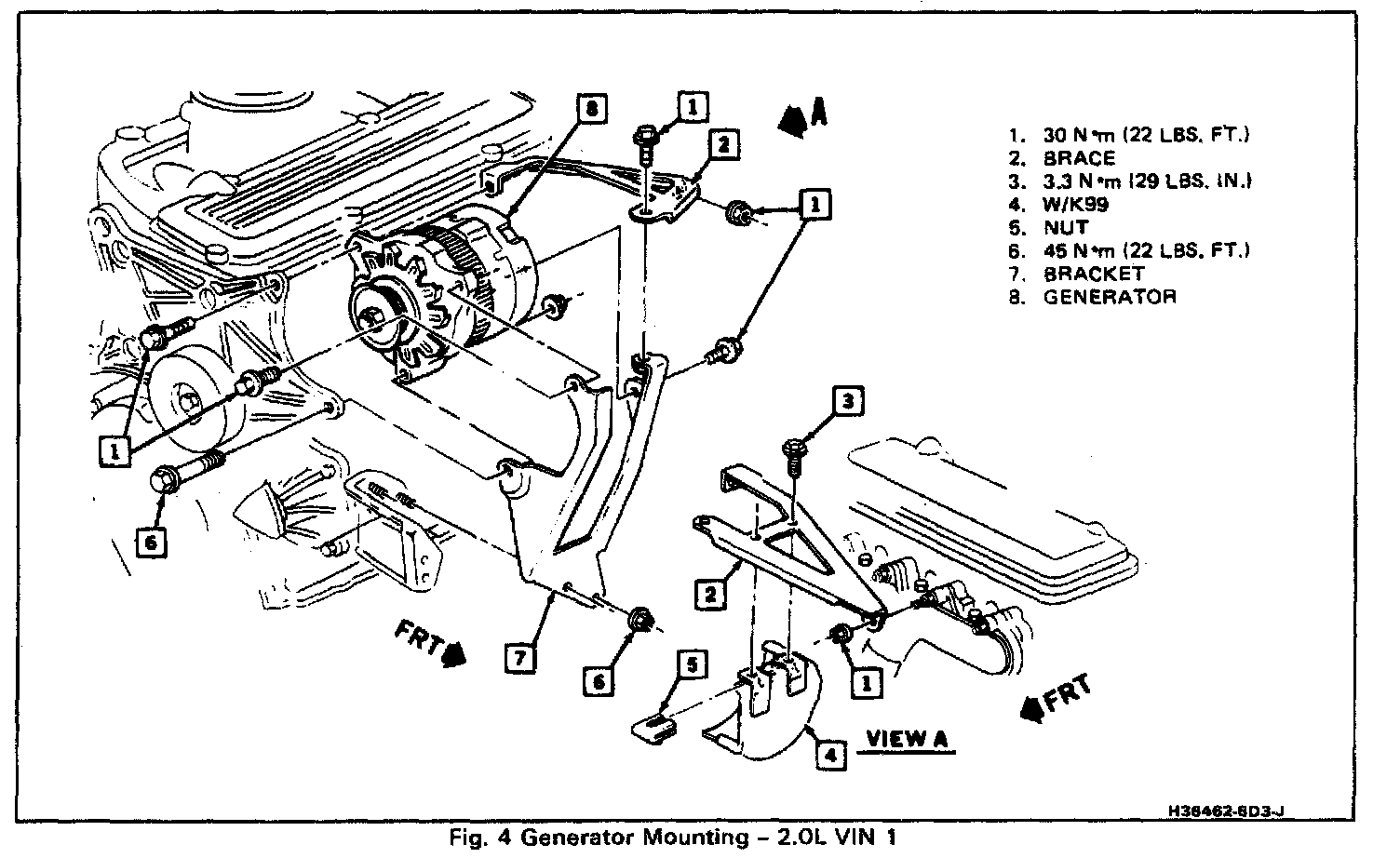

ALTERNATOR TORQUE SPECIFICATIONS

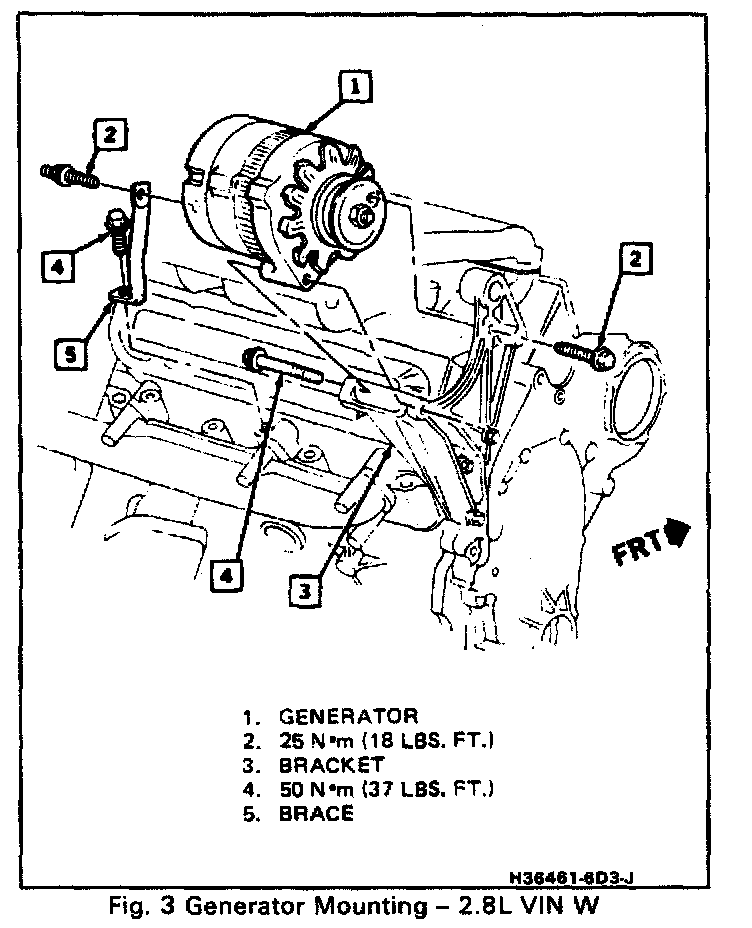

2.8L VIN W:





2.0L VIN 1:





STARTER SPECIFICATIONS

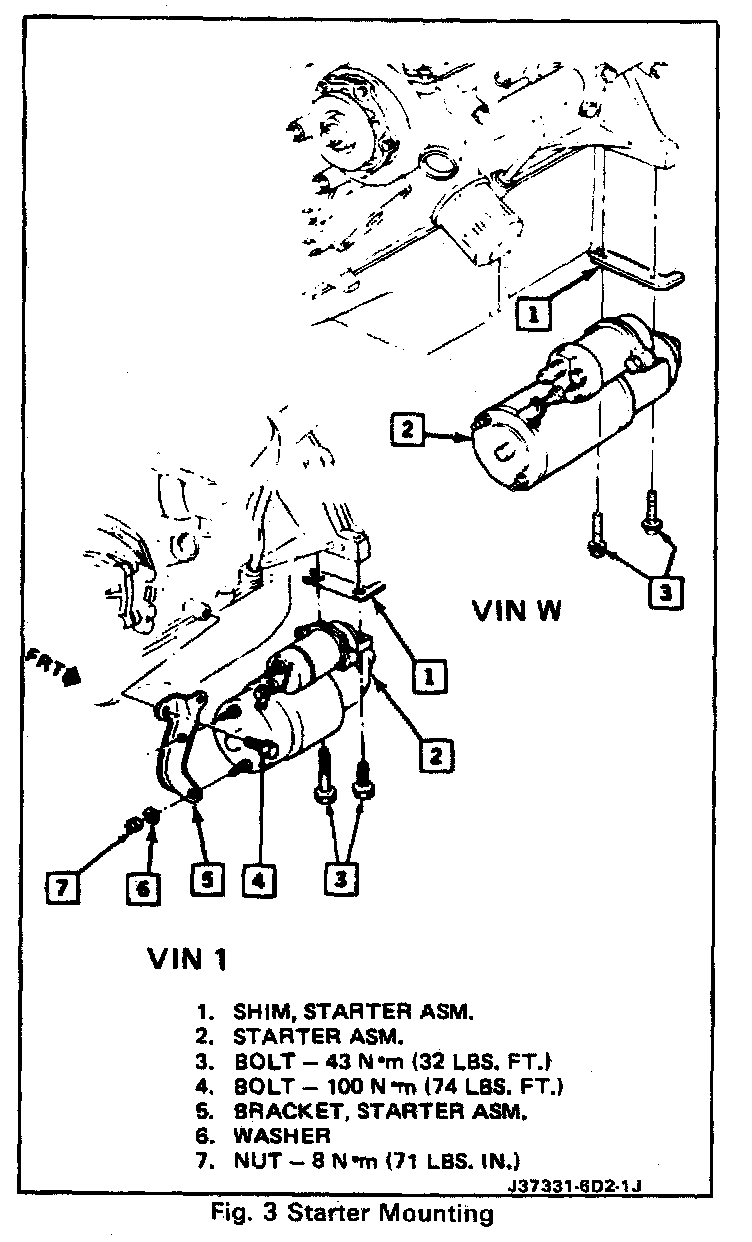

STARTER TORQUE SPECIFICATIONS
