Powertrain Management: Locations

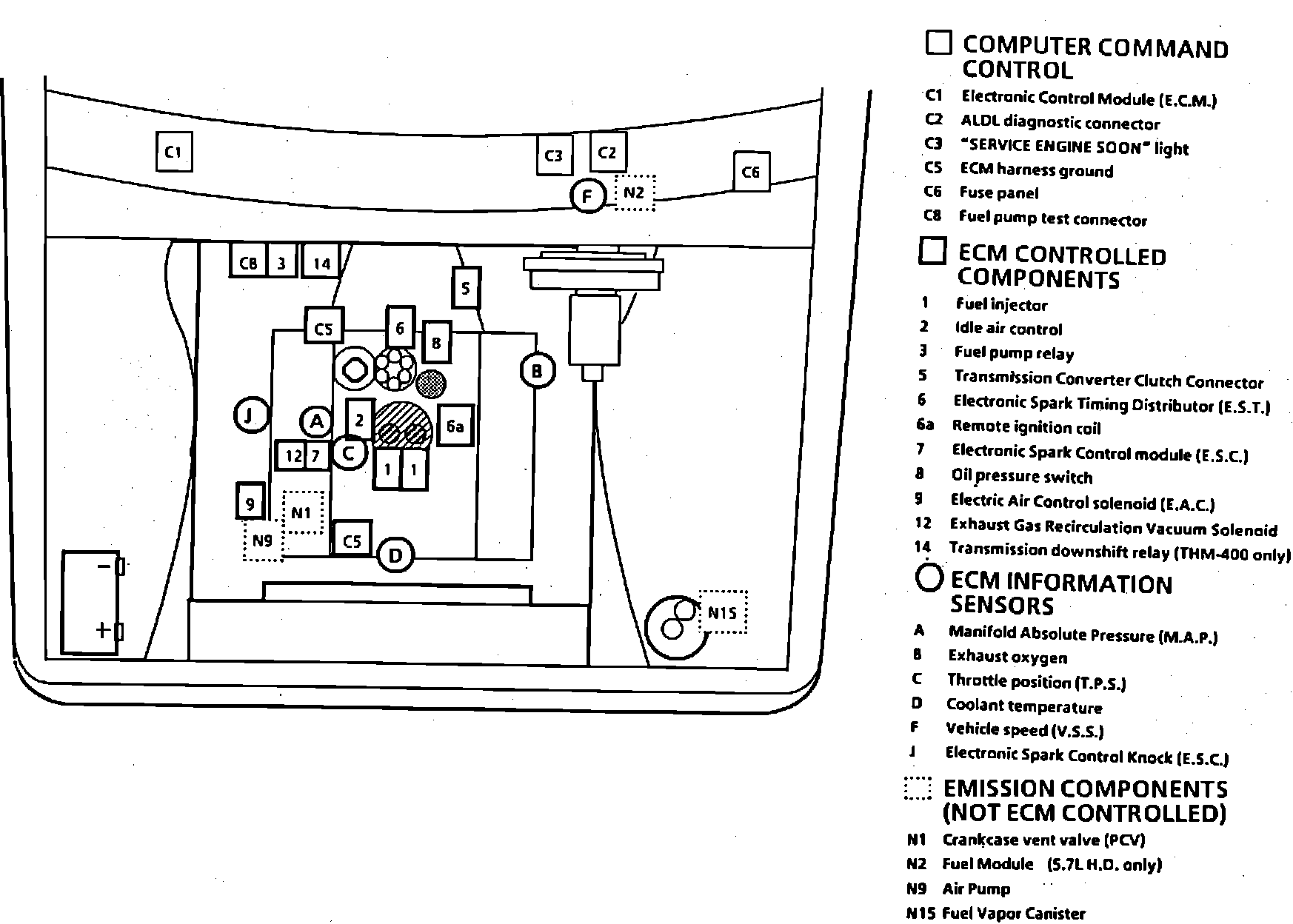

Underhood Components:




V6-262/4.3L Engine, G Series

Applicable to: G Series w/V6-262/4.3L Engine

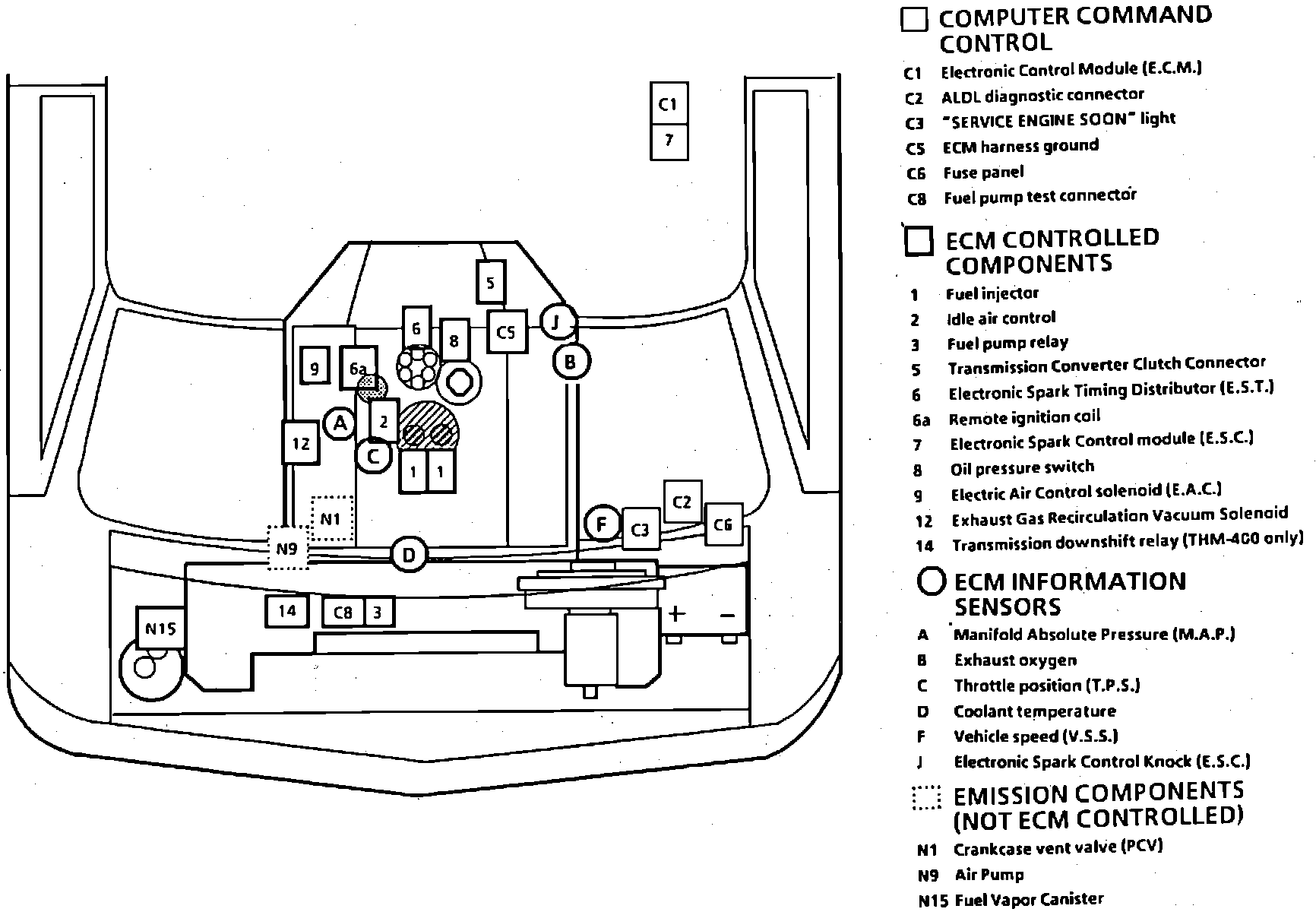

Underhood Components:




V6-262/4.3L Engine, R & V Series

Applicable to: R & V Series w/V6-262/4.3L Engine

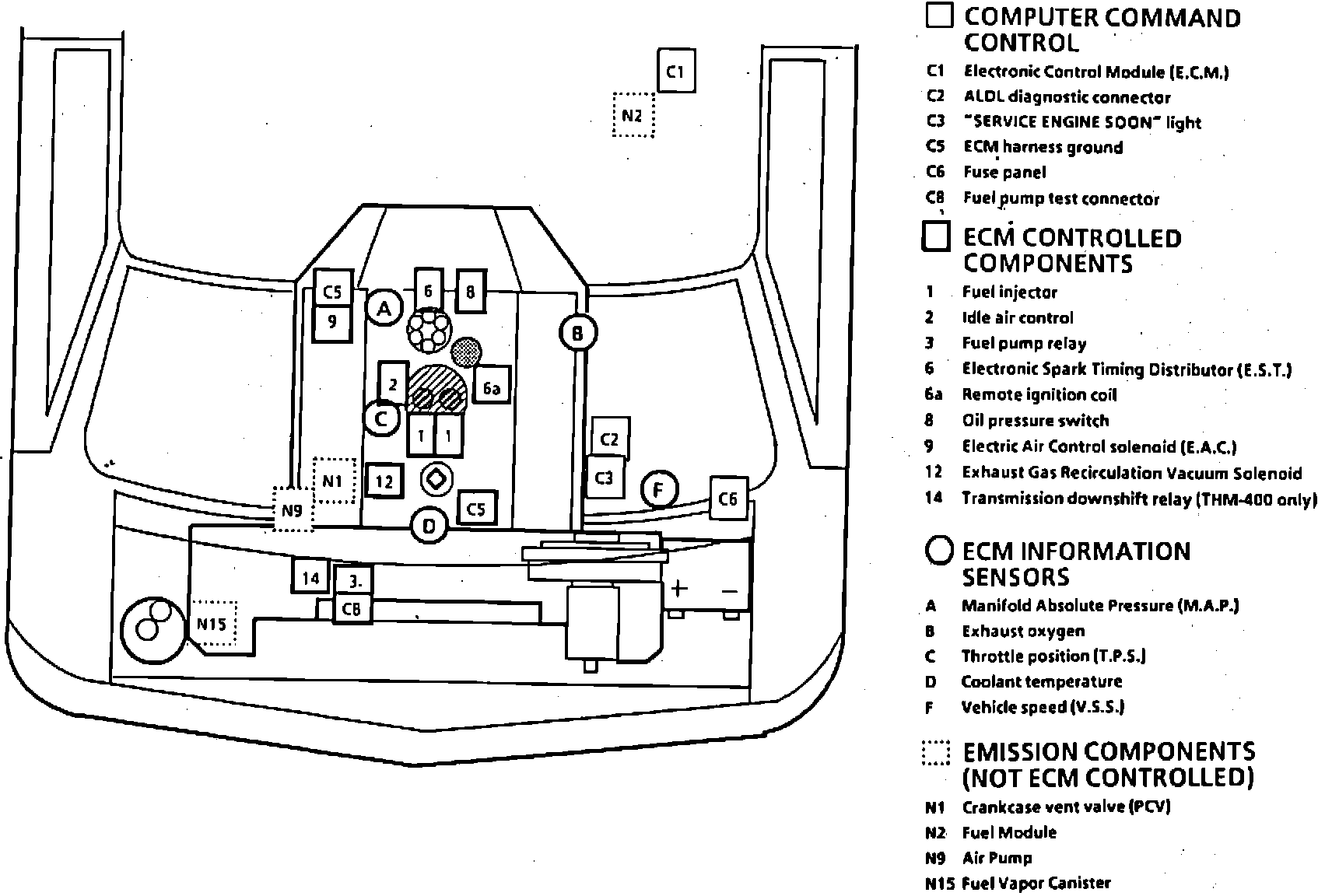

Underhood Components:




V8-305/5.0L & V8-350/5.7L Engines, G Series

Applicable to: G Series w/V8-305/5.0L & V8-350/5.7L Engines

Underhood Components:




V8-305/5.0L & V8-350/5.7L Engines, R & V Series

Applicable to: R & V Series w/V8-305/5.0L & V8-350/5.7L Engines

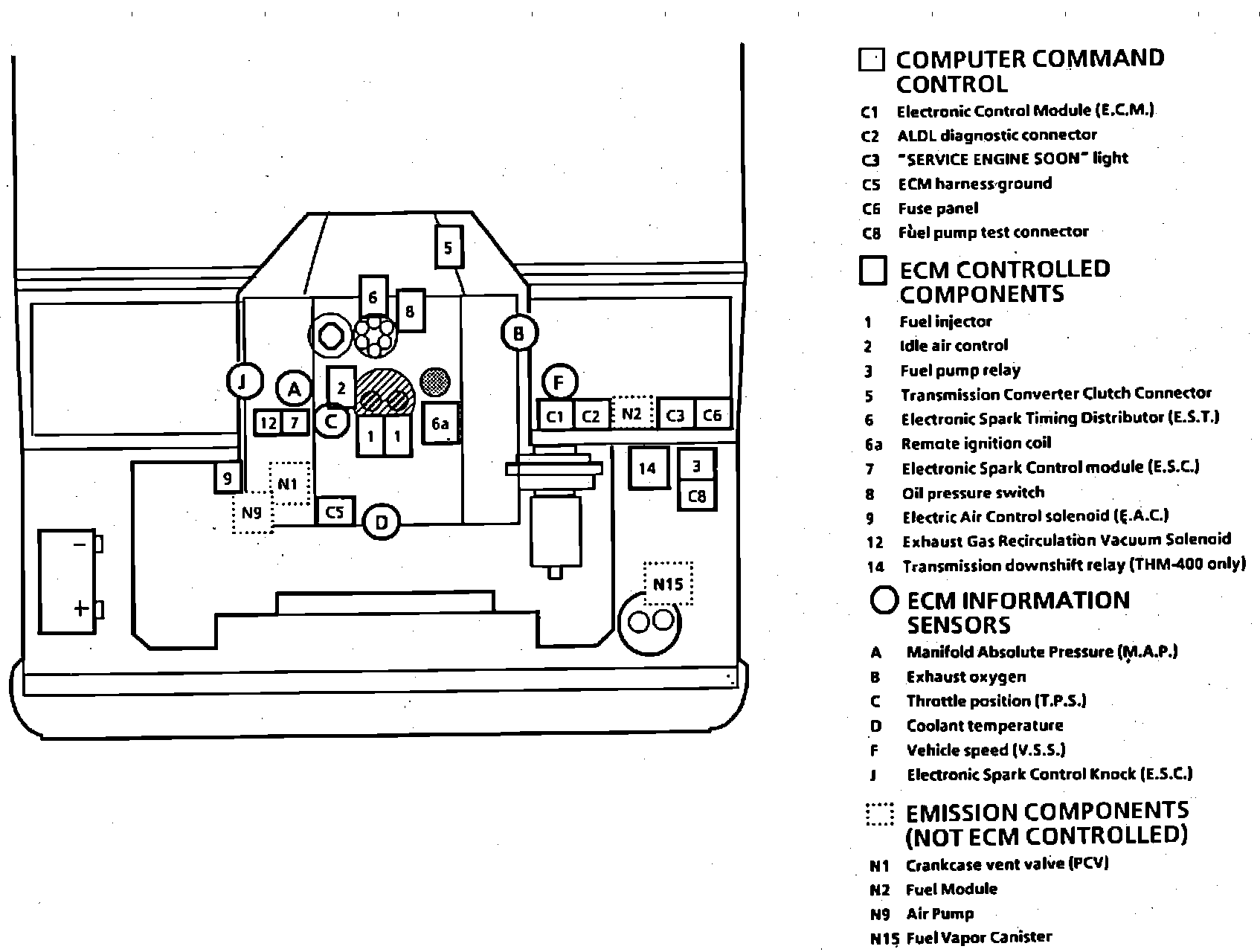

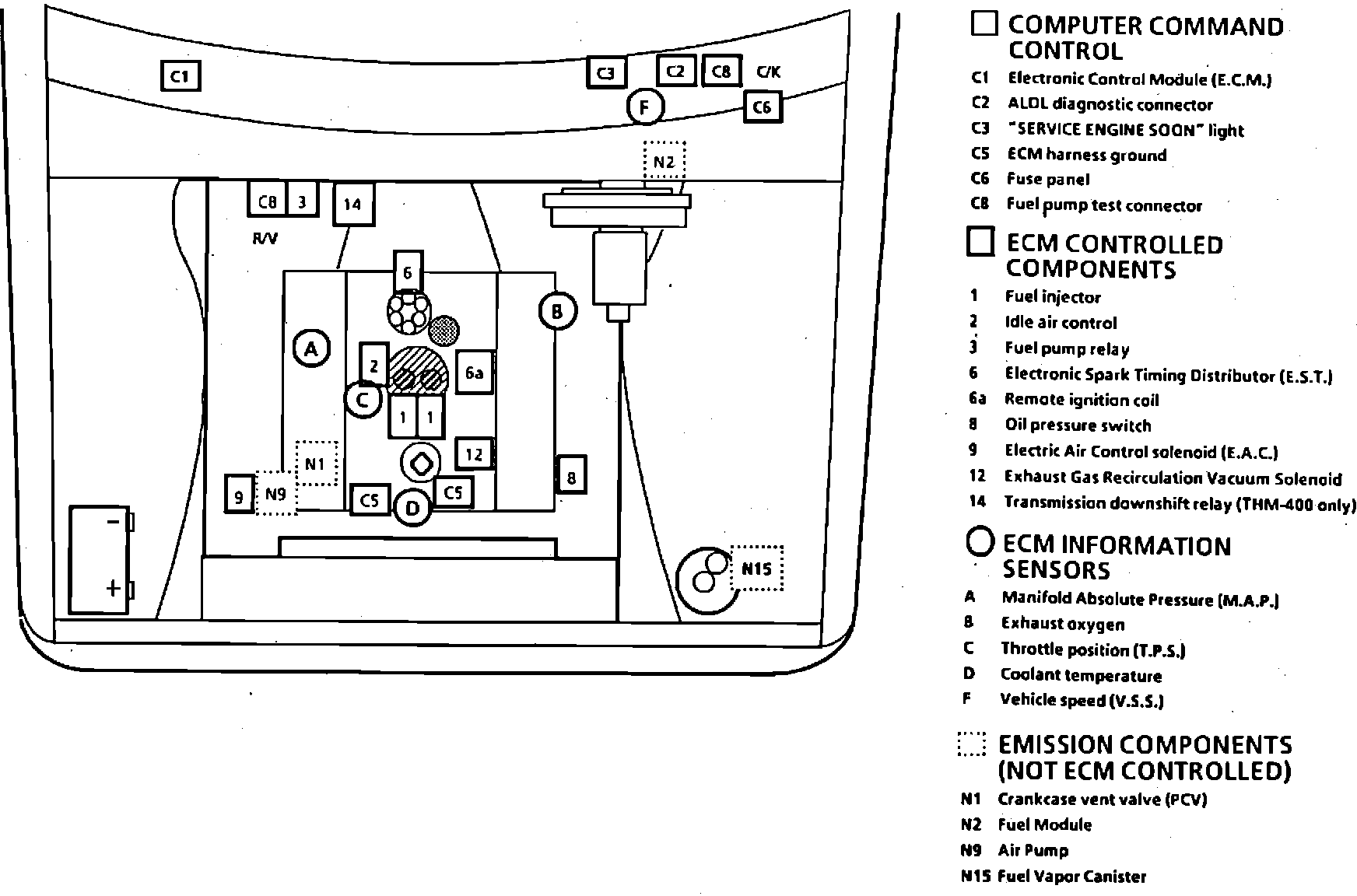

Underhood Components:




V8-350/5.7L Engine, TBI, G Series

Applicable to: G Series w/V8-350/5.7L TBI Engine

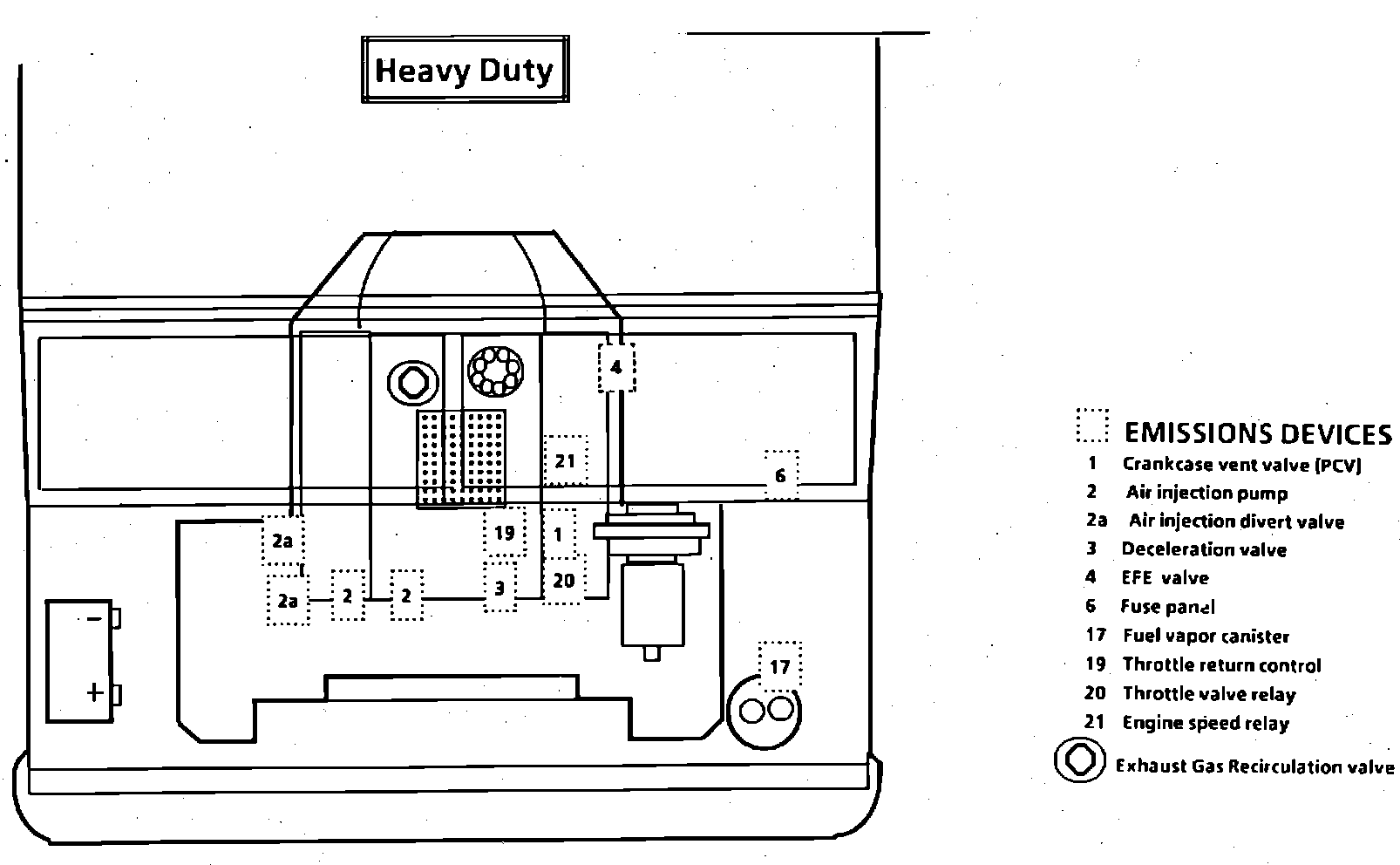

Underhood Components:




V8-350/5.7L Engine, TBI, P Series

Applicable to: P Series w/V8-350/5.7L TBI Engine

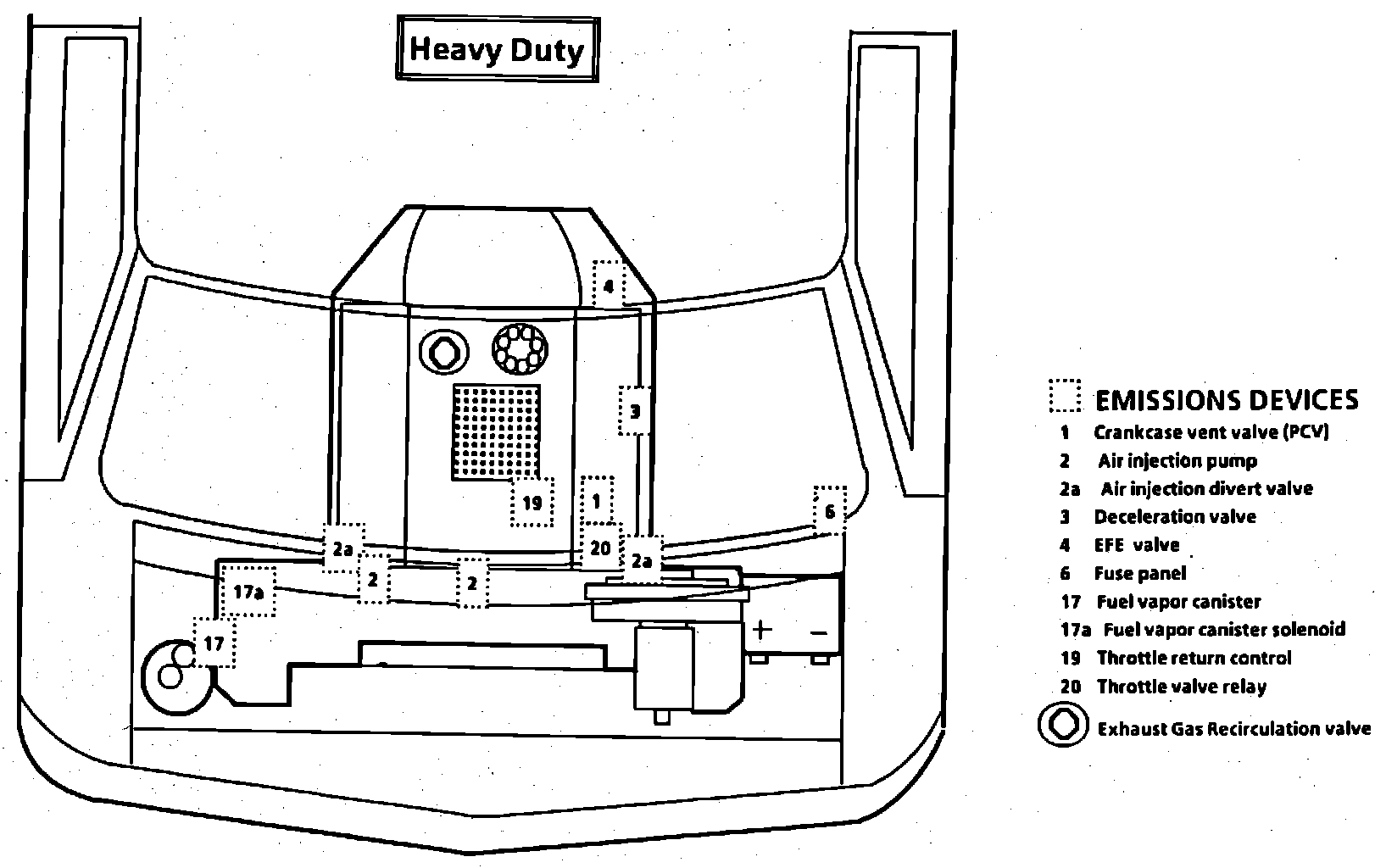

Underhood Components:




V8-350/5.7L Engine, TBI, R & V Series

Applicable to: R & V Series w/V8-350.5/7L TBI Engine

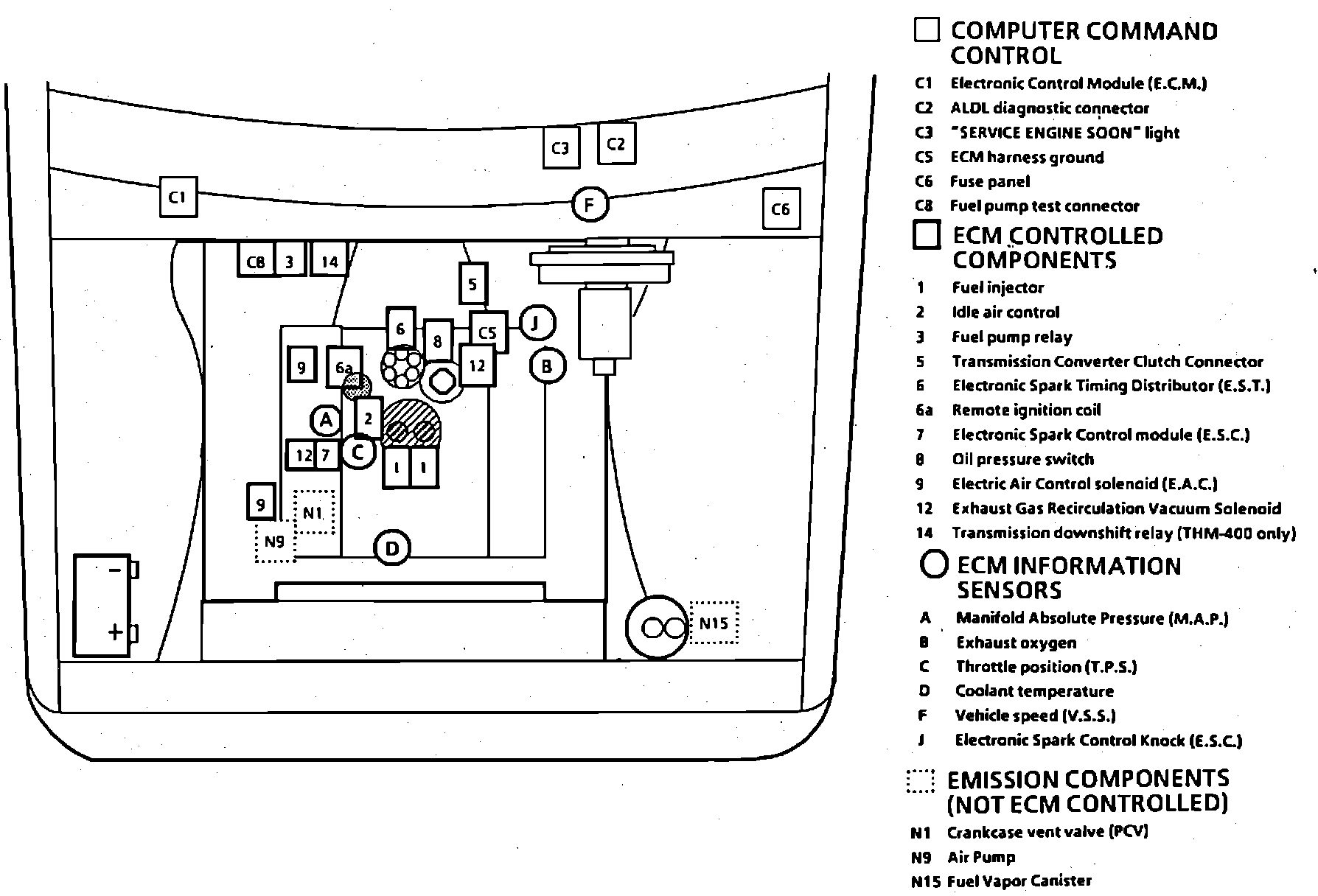

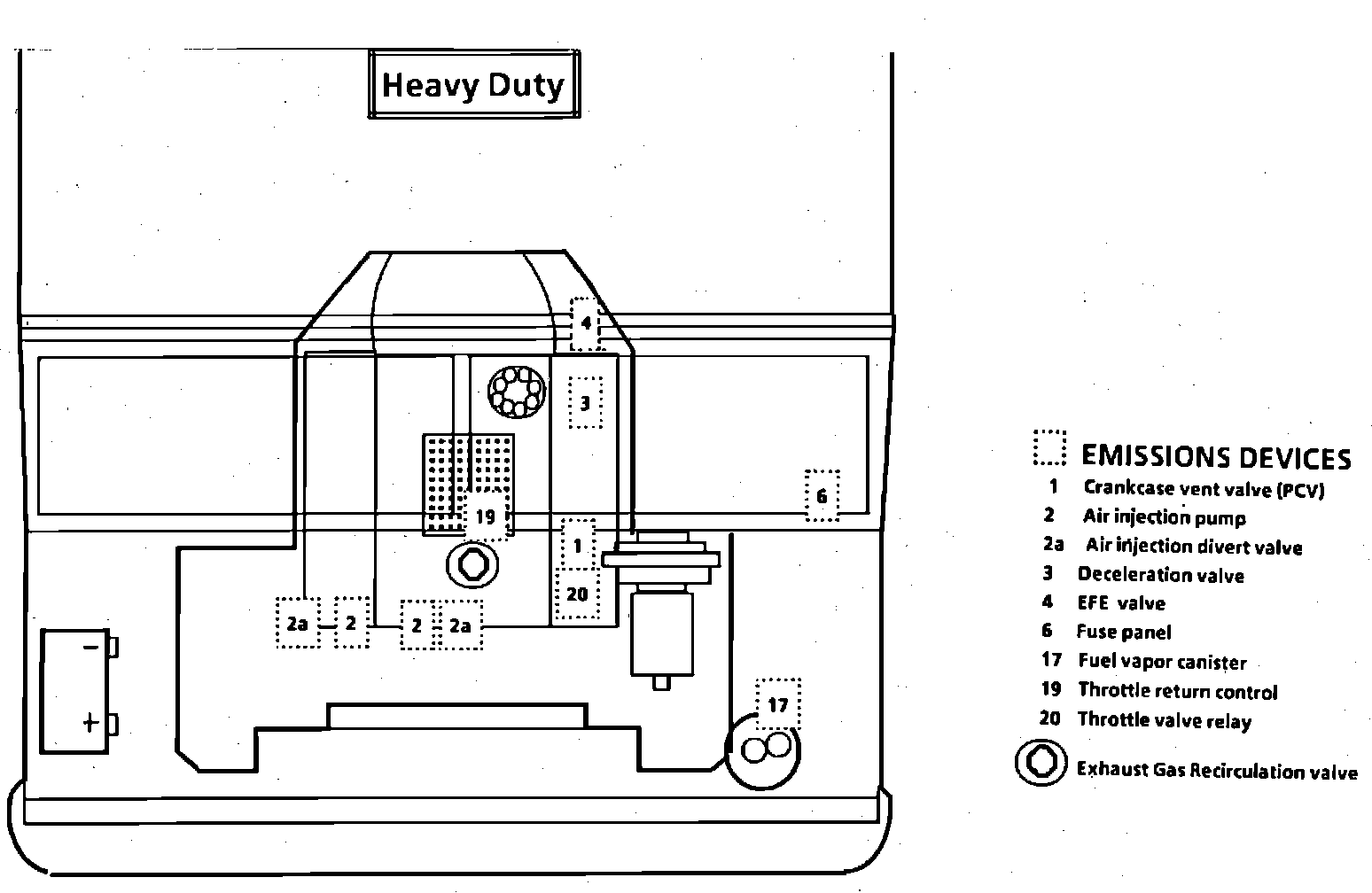

Underhood Components:




V8-350/5.7L Engine, 4 Bbl., G Series

Applicable to: G Series w/V8-350/5.7L 4 Bbl. Engine

Underhood Components:

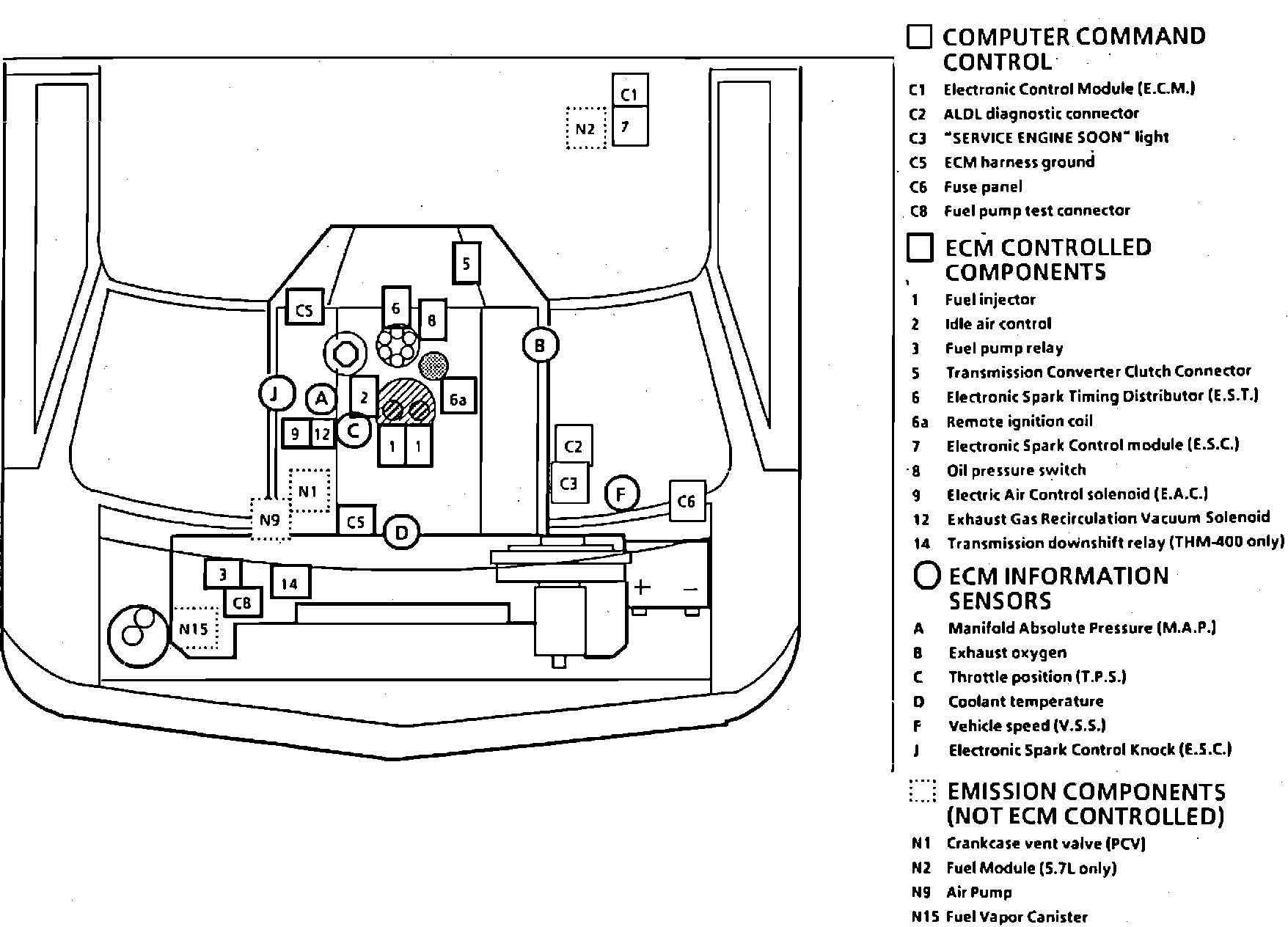

Underhood Components:




V8-350/5.7L Engine, 4 Bbl., P Series

Applicable to: P Series w/V8-350/5.7L 4 Bbl. Engine
