Igniter W/Knock Controller

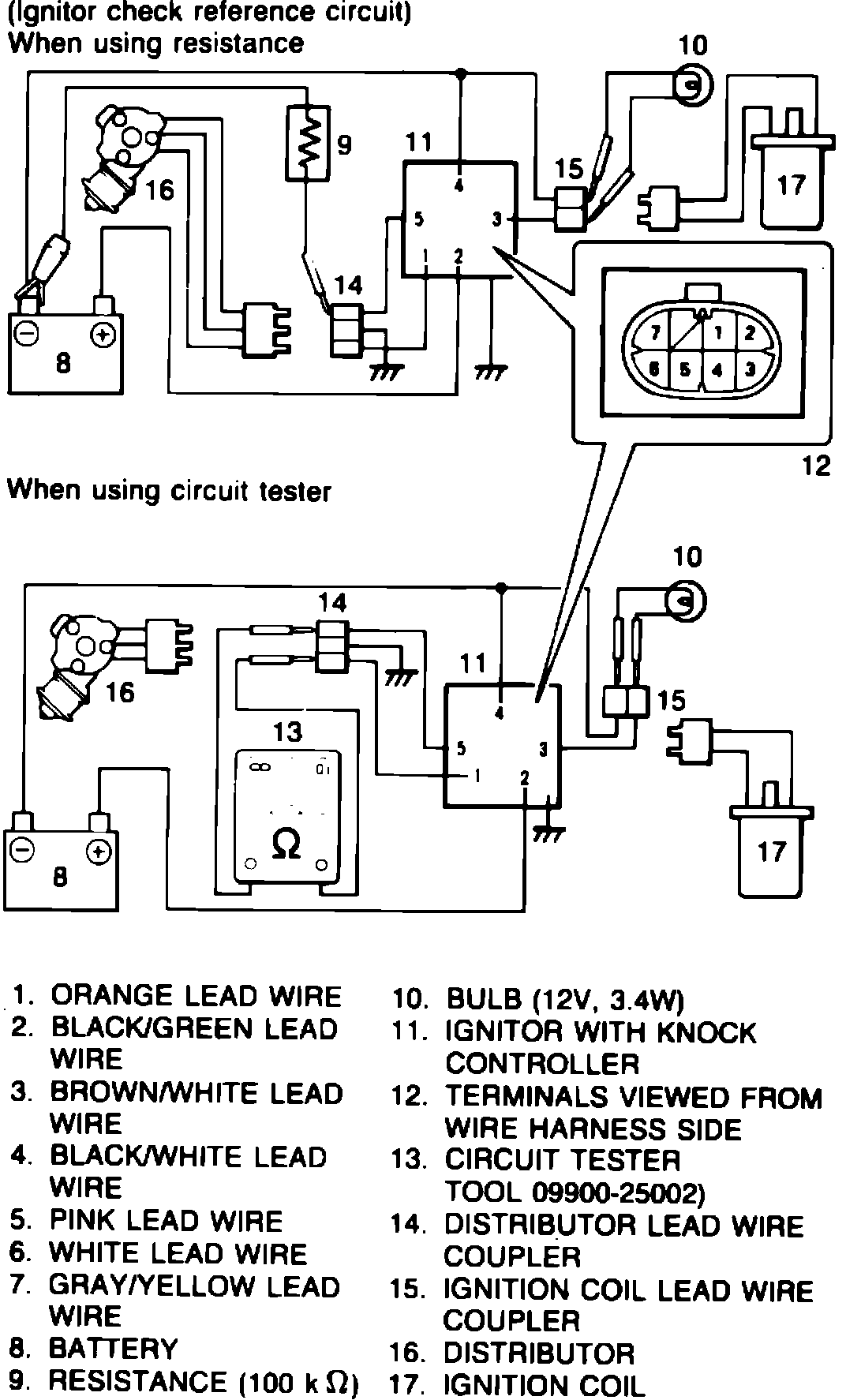

Fig. 8 Testing igniter w/knock controller. 1987 - 88 Models w/EFI & turbocharger:

TESTING
1. Disconnect ignition coil lead wire at connector.
2. Disconnect distributor lead wire at connector.
3. Connect a suitable test lamp to ignition coil connector at wiring harness side, then turn ignition switch ``On.''
4. Connect 100 ohms of resistance between pink wire terminal of disconnected distributor connector and battery positive terminal, Fig. 8. If 100 ohms of resistance is not available, set circuit tester to ohms range, then connect positive probe of tester to orange wire terminal and negative lead to pink wire terminal, Fig. 8.
5. If lamp lights, igniter is satisfactory. If lamp does not light, replace defective igniter.
