System Specifications

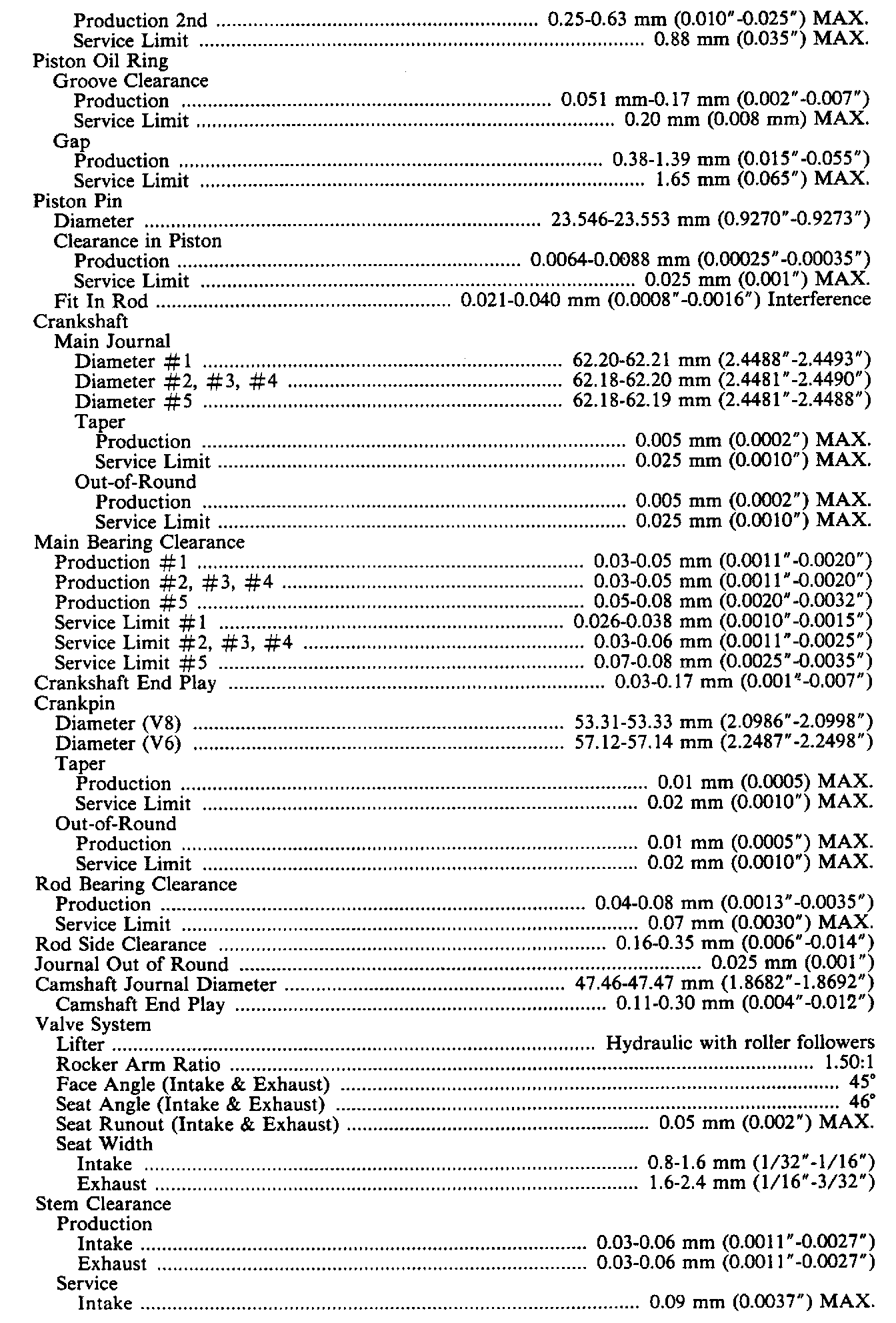

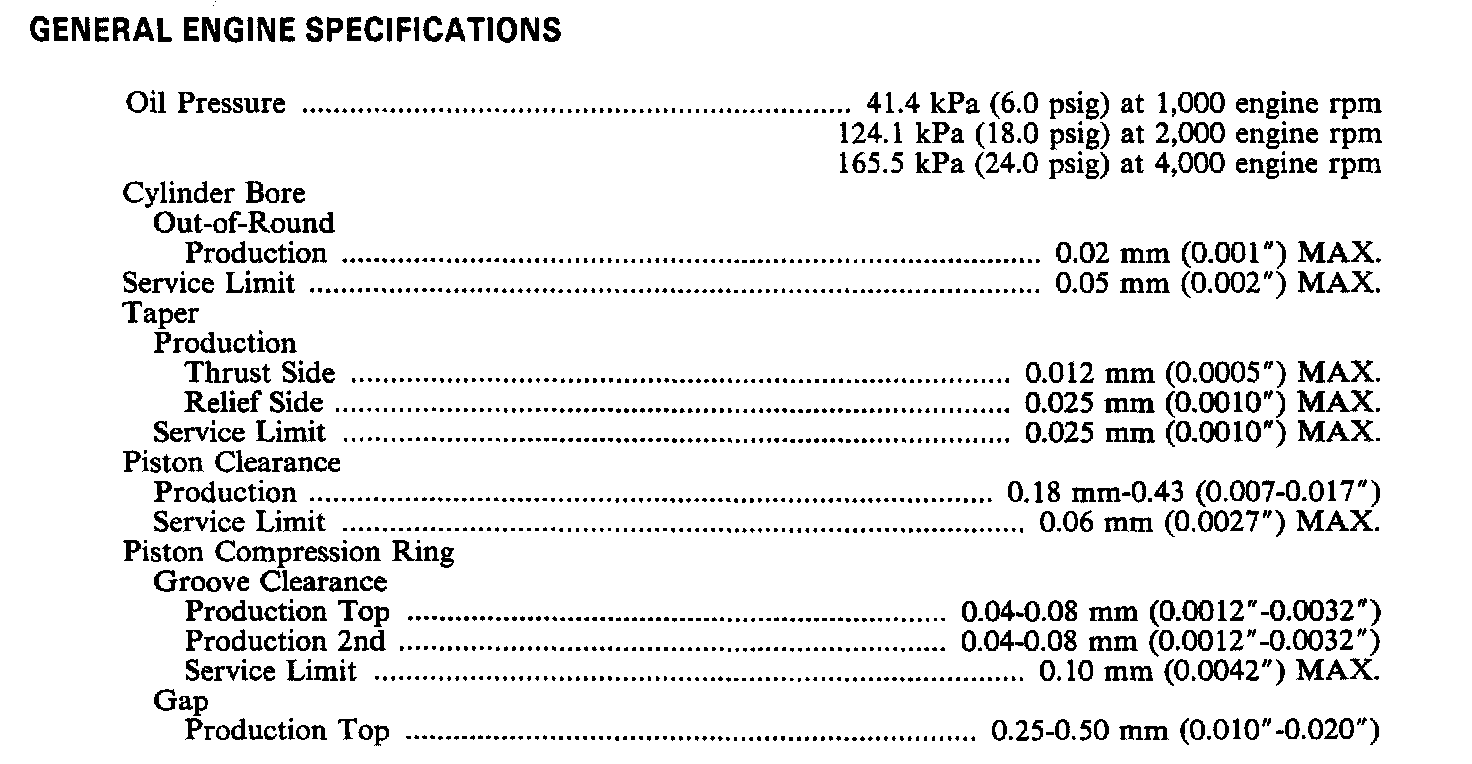

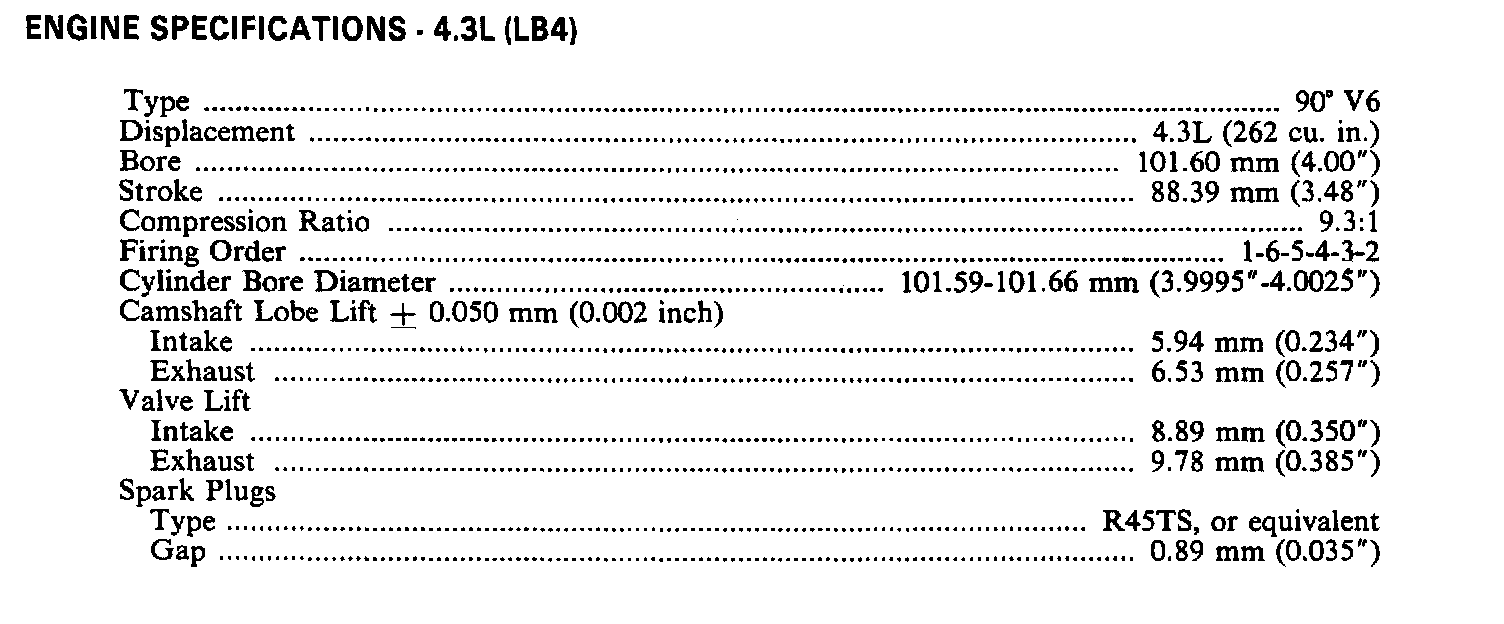

Engine Specifications 4.3L (LB4):









Engine Specifications 5.7L (L05):




















Intake Manifold Sequence (V-6):
