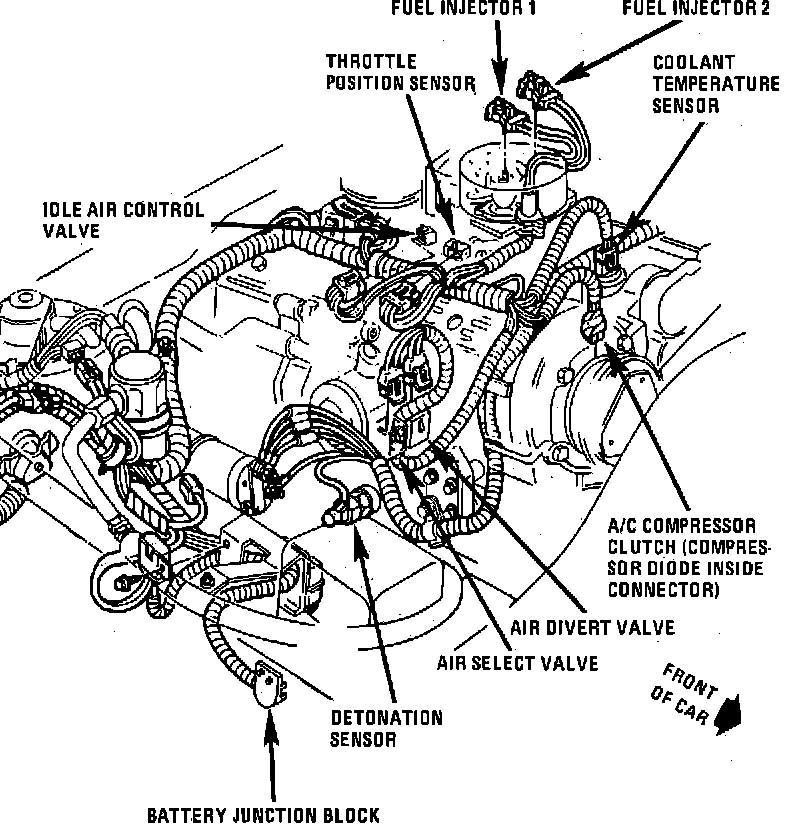

Throttle Position Sensor: Locations

RH Side Of Engine.:

Top Of Engine

Applicable to: Caprice & Safari w/V8-305/5.0L TBI
