Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS (ASTRO & SAFARI)

Application

Specification

Adjustment Procedures

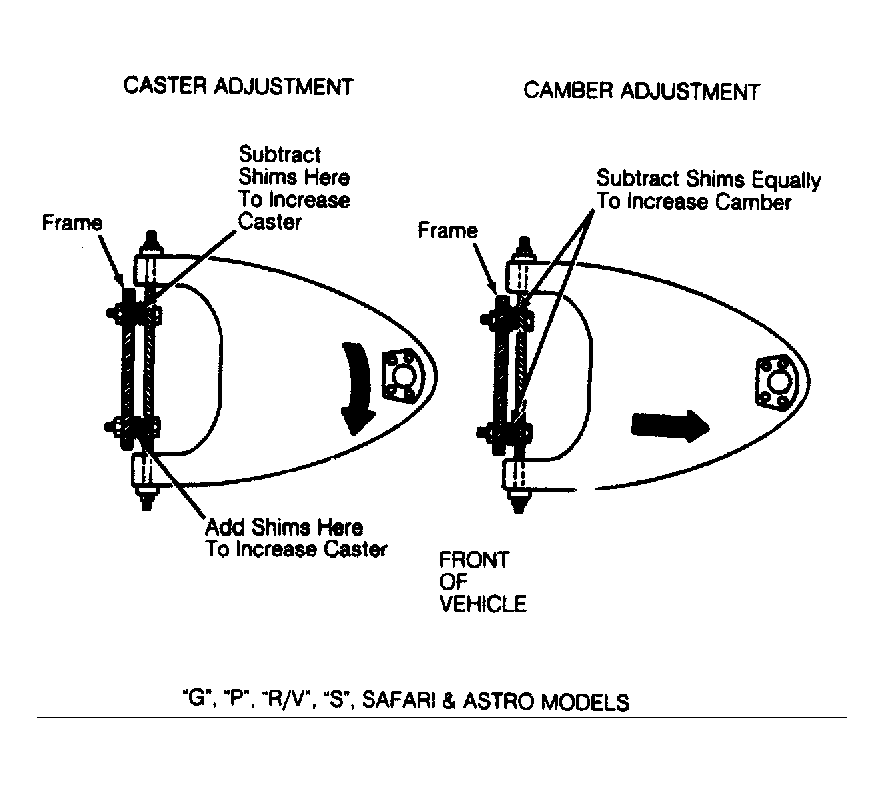

See Fig 2

Camber in Degrees (Fraction)

1 13/32 to 13/32

Camber in Degrees (Decimal)

.30 to 1.3

Caster in Degrees (Fraction)

2 3/16 to 3 3/16

Caster in Degrees (Decimal)

2.2 to 3.2

Toe-In in Inches (Decimal)

.05 +/- .03

Toe-In in Degrees (Decimal)

.1 +/- .05

Toe-Out on Turns (Inner)

⁽¹⁾

Toe-Out on Turns (Outer)

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (C100, C200 & C300)

Application

Specification

Adjustment Procedures

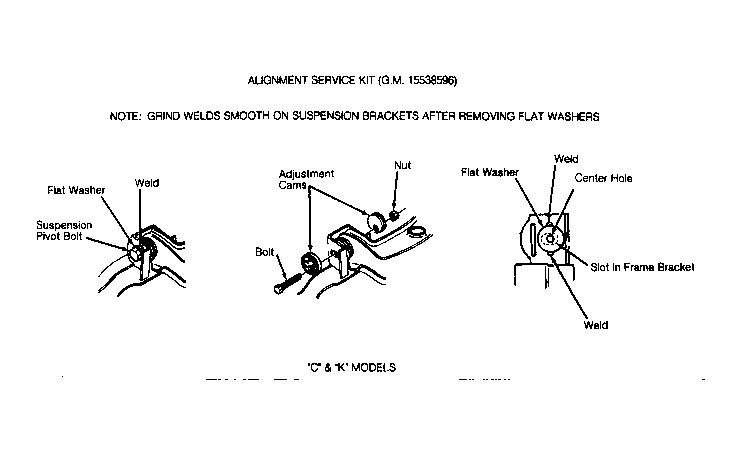

See Fig 1

Camber in Degrees

1/2 (0.5)

Caster in Degrees

1 (1.0)

Toe-In in Inches

1/4 (0.025)

Toe-In in Degrees

1/2 (0.05)

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (K100 & K200)

Application

Specification

Adjustment Procedures

See Fig 1

Camber in Degrees

29/32 +/- 1/2 (0.90 +/- 0.5)

Caster in Degrees

4 +/- 1/2 (4.0 +/- 0.5)

Toe-In in Inches

3/16 (0.188)

Toe-In in Degrees

3/8 (0.375)

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (K300)

Application

Specification

Adjustment Procedures

See Fig 1

Camber in Degrees

3/4 +/- 1/2 (0.75 +/- 0.5)

Caster in Degrees

4 +/- 1/2 (4.0 +/- 0.5)

Toe-In in Inches

1/32 +/- 1/64 (0.035 +/- 0.025)

Toe-In in Degrees

5/64 +/- 3/64 (0.07 +/- 0.05)

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (R100)

Application

Specification

Adjustment Procedures

See Fig 2

Camber in Degrees

45/64 (0.7)

Toe-In in Inches

1/64 (0.018)

Toe-In in Degrees

1/32 (0.036)

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination

⁽¹⁾

Caster

With 2 1/2" Ride Height

3 45/64 (3.7)

With 2 3/4" Ride Height

3 1/2 (3.5)

With 3" Ride Height

3 13/64 (3.2)

With 3 1/4" Ride Height

2 29/32 (2.9)

With 3 1/2" Ride Height

2 19/32 (2.6)

With 3 3/4" Ride Height

2 13/32 (2.4)

With 4" Ride Height

2 3/32 (2.1)

With 4 1/4" Ride Height

1 51/64 (1.8)

With 4 1/2" Ride Height

1 1/2 (1.5)

With 4 3/4" Ride Height

1 19/64 (1.3)

With 5" Ride Height

1 (1.0)

With 5 1/4" Ride Height

51/64 (0.8)

With 5 1/2" Ride Height

1/2 (0.5)

With 5 3/4" Ride Height

19/64 (0.3)

With 6" Ride Height

0 (0)

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (R200 & R300)

Application

Specification

Adjustment Procedures

See Fig 2

Camber in Degrees

1/4 (0.25)

Toe-In in Inches

1/64 (0.018)

Toe-In in Degrees

1/32 (0.036)

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

Caster

With 2 1/2" Ride Height

1 1/2 (1.5)

With 2 3/4" Ride Height

1 13/64 (1.2)

With 3" Ride Height

29/32 (0.9)

With 3 1/4" Ride Height

19/32 (0.6)

With 3 1/2" Ride Height

19/64 (0.3)

With 3 3/4" Ride Height

3/32 (0.1)

With 4" Ride Height

-1/64 (-0.1)

With 4 1/4" Ride Height

-5/32 (-0.15)

With 4 1/2" Ride Height

-45/64 (-0.7)

With 4 3/4" Ride Height

-1 (-1.0)

With 5" Ride Height

-1 13/64 (-1.2)

With 5 1/4" Ride Height

-1 13/32 (-1.4)

With 5 1/2" Ride Height

-1 19/32 (-1.6)

With 5 3/4" Ride Height

-1 51/64 (-1.8)

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (V100, V200 & V300)

Application

Specification

Adjustment Procedures

See Fig 2

Camber in Degrees (Fraction)

5 (center)

Camber in Degrees (Decimal)

5.0 (center)

Caster in Degrees (Fraction)

5 (center)

Caster in Degrees (Decimal)

5.0 (center)

Toe-In in Inches

1/8 (0.125)

Toe-In in Degrees

1/4 (0.25)

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (G100 & G200)

Application

Specification

Adjustment Procedures

See Fig 2

Camber in Degrees (Fraction)

1/2

Camber in Degrees (Decimal)

0.5

Toe-In in Inches (Fraction)

1/64

Toe-In in Inches (Decimal)

0.018

Toe-In in Degrees (Fraction)

1/32

Toe-In in Degrees (Decimal)

0.036

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

Ride Height in Inches

1 1/2

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

1 3/4

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

2 1/4

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

2 1/2

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

2 3/4

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

3 1/4

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

3 1/2

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

3 3/4

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

4 1/4

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

Ride Height in Inches

4 1/2

Caster in Degrees (Fraction)

3 13/32

Caster in Degrees (Decimal)

3.4

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (G300)

Application

Specification

Adjustment Procedures

See Fig 2

Camber in Degrees (Fraction)

1/4

Camber in Degrees (Decimal)

0.25

Toe-In in Inches (Fraction)

1/64

Toe-In in Inches (Decimal)

0.018

Toe-In in Degrees (Fraction)

1/32

Toe-In in Degrees (Decimal)

0.036

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

Ride Height in Inches

1 1/2

Caster in Degrees (Fraction)

3 3/32

Caster in Degrees (Decimal)

3.1

Ride Height in Inches

1 3/4

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

3.0

Ride Height in Inches

Caster in Degrees (Fraction)

2 45/64

Caster in Degrees (Decimal)

2.7

Ride Height in Inches

2 1/4

Caster in Degrees (Fraction)

2 13/32

Caster in Degrees (Decimal)

2.4

Ride Height in Inches

2 1/2

Caster in Degrees (Fraction)

2 3/32

Caster in Degrees (Decimal)

2.1

Ride Height in Inches

2 3/4

Caster in Degrees (Fraction)

1 51/64

Caster in Degrees (Decimal)

1.8

Ride Height in Inches

Caster in Degrees (Fraction)

1 1/2

Caster in Degrees (Decimal)

1.5

Ride Height in Inches

3 1/4

Caster in Degrees (Fraction)

1 13/64

Caster in Degrees (Decimal)

1.2

Ride Height in Inches

3 1/2

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

1.0

Ride Height in Inches

3 3/4

Caster in Degrees (Fraction)

45/64

Caster in Degrees (Decimal)

0.7

Ride Height in Inches

Caster in Degrees (Fraction)

1/2

Caster in Degrees (Decimal)

0.5

Ride Height in Inches

4 1/4

Caster in Degrees (Fraction)

13/64

Caster in Degrees (Decimal)

0.2

Ride Height in Inches

4 1/2

Caster in Degrees (Fraction)

-1/32

Caster in Degrees (Decimal)

-0.03

⁽¹⁾	Information not available.

WHEEL ALIGNMENT SPECIFICATIONS (P200 & P300 W/O 5000-lb. I-BEAM AXLE, DUAL REAR WHEELS & HYDROBOOST)

Application

Specification

Adjustment Procedures

See Fig 2

Camber in Degrees (Fraction)

1/4

Camber in Degrees (Decimal)

0.25

Toe-In in Inches (Fraction)

1/64

Toe-In in Inches (Decimal)

0.018

Toe-In in Degrees (Fraction)

1/32

Toe-In in Degrees (Decimal)

0.036

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

Ride Height in Inches

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

3.0

Ride Height in Inches

2 1/4

Caster in Degrees (Fraction)

2 19/32

Caster in Degrees (Decimal)

2.6

Ride Height in Inches

2 1/2

Caster in Degrees (Fraction)

2 19/64

Caster in Degrees (Decimal)

2.3

Ride Height in Inches

2 3/4

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

2.0

Ride Height in Inches

Caster in Degrees (Fraction)

1 45/64

Caster in Degrees (Decimal)

1.7

Ride Height in Inches

3 1/4

Caster in Degrees (Fraction)

1 13/32

Caster in Degrees (Decimal)

1.4

Ride Height in Inches

3 1/2

Caster in Degrees (Fraction)

1 13/64

Caster in Degrees (Decimal)

1.2

Ride Height in Inches

3 3/4

Caster in Degrees (Fraction)

29/32

Caster in Degrees (Decimal)

0.9

Ride Height in Inches

Caster in Degrees (Fraction)

19/32

Caster in Degrees (Decimal)

0.6

Ride Height in Inches

4 1/4

Caster in Degrees (Fraction)

13/32

Caster in Degrees (Decimal)

0.4

Ride Height in Inches

4 1/2

Caster in Degrees (Fraction)

13/64

Caster in Degrees (Decimal)

0.2

Ride Height in Inches

4 3/4

Caster in Degrees (Fraction)

-3/32

Caster in Degrees (Decimal)

-0.1

⁽¹⁾	Information not available.

P200 & P300 W/ DUAL REAR WHEELS & w/o HYDROBOOST

Application

Specification

Adjustment Procedure

See Fig 2

Camber in Degrees (Fraction)

1/4

Camber in Degrees (Decimal)

0.25

Toe-In in Inches (Fraction)

1/64

Toe-In in Inches (Decimal)

0.018

Toe-In in Degrees (Fraction)

1/32

Toe-In in Degrees (Decimal)

0.036

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

Ride Height in Inches

Caster in Degrees (Fraction)

2 1/2

Caster in Degrees (Decimal)

2.5

Ride Height in Inches

2 1/4

Caster in Degrees (Fraction)

2 13/64

Caster in Degrees (Decimal)

2.2

Ride Height in Inches

2 1/2

Caster in Degrees (Fraction)

1 29/32

Caster in Degrees (Decimal)

1.9

Ride Height in Inches

2 3/4

Caster in Degrees (Fraction)

1 19/32

Caster in Degrees (Decimal)

1.6

Ride Height in Inches

Caster in Degrees (Fraction)

1 19/64

Caster in Degrees (Decimal)

1.3

Ride Height in Inches

3 1/4

Caster in Degrees (Fraction)

1 3/32

Caster in Degrees (Decimal)

1.1

Ride Height in Inches

3 1/2

Caster in Degrees (Fraction)

51/64

Caster in Degrees (Decimal)

0.8

Ride Height in Inches

3 3/4

Caster in Degrees (Fraction)

1/2

Caster in Degrees (Decimal)

0.5

Ride Height in Inches

Caster in Degrees (Fraction)

19/64

Caster in Degrees (Decimal)

0.3

Ride Height in Inches

4 1/4

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

Ride Height in Inches

4 1/2

Caster in Degrees (Fraction)

-13/64

Caster in Degrees (Decimal)

-0.2

Ride Height in Inches

4 3/4

Caster in Degrees (Fraction)

-13/32

Caster in Degrees (Decimal)

-0.4

⁽¹⁾	Information not available

P300 (32) w/HYDROBOOST, w/o 5000-lb. Ft. AXLE

Application

Specifications

Adjustment Procedures

See Fig 2

Camber in Degrees (Fraction)

1/4

Camber in Degrees (Decimal)

0.25

Toe-In in Inches (Fraction)

1/4

Toe-In in Inches (Decimal)

0.25

Toe-In in Degrees (Fraction)

1/2

Toe-In in Degrees (Decimal)

0.5

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

Ride Height in Inches

2 1/2

Caster in Degrees (Fraction)

5 1/2

Caster in Degrees (Decimal)

5.5

Ride Height in Inches

2 3/4

Caster in Degrees (Fraction)

5 19/64

Caster in Degrees (Decimal)

5.3

Ride Height in Inches

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

5.0

Ride Height in Inches

3 1/4

Caster in Degrees (Fraction)

4 45/64

Caster in Degrees (Decimal)

4.7

Ride Height in Inches

3 1/2

Caster in Degrees (Fraction)

4 13/32

Caster in Degrees (Decimal)

4.4

Ride Height in Inches

3 3/4

Caster in Degrees (Fraction)

4 3/32

Caster in Degrees (Decimal)

4.1

Ride Height in Inches

Caster in Degrees (Fraction)

3 51/64

Caster in Degrees (Decimal)

3.8

Ride Height in Inches

4 1/4

Caster in Degrees (Fraction)

3 19/32

Caster in Degrees (Decimal)

3.6

Ride Height in Inches

4 1/2

Caster in Degrees (Fraction)

3 19/64

Caster in Degrees (Decimal)

3.3

Ride Height in Inches

4 3/4

Caster in Degrees (Fraction)

3 3/32

Caster in Degrees (Decimal)

3.1

Ride Height in Inches

Caster in Degrees (Fraction)

2 29/32

Caster in Degrees (Decimal)

2.9

Ride Height in Inches

5 1/4

Caster in Degrees (Fraction)

2 19/32

Caster in Degrees (Decimal)

2.6

Ride Height in Inches

5 1/2

Caster in Degrees (Fraction)

2 13/32

Caster in Degrees (Decimal)

2.4

Ride Height in Inches

5 3/4

Caster in Degrees (Fraction)

2 13/64

Caster in Degrees (Decimal)

2.2

Ride Height in Inches

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

2.0

⁽¹⁾	Information not available.

P300 (42) w/HYDROBOOST, w/o 5000-lb. Ft. AXLE

Application

Specification

Adjustment Procedures

See Fig 2

Camber in Degrees (Fraction)

1/4

Camber in Degrees (Decimal)

0.25

Toe-In in Inches (Fraction)

1/4

Toe-In in Inches (Decimal)

0.25

Toe-In In Degrees (Fraction)

1/2

Toe-In in Degrees (Decimal)

0.5

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

Ride Height in Inches

Caster in Degrees (Fraction)

3 13/64

Caster in Degrees (Decimal)

3.2

Ride Height in Inches

2 1/4

Caster in Degrees (Fraction)

2 29/32

Caster in Degrees (Decimal)

2.9

Ride Height in Inches

2 1/2

Caster in Degrees (Fraction)

2 19/32

Caster in Degrees (Decimal)

2.6

Ride Height in Inches

2 3/4

Caster in Degrees (Fraction)

2 13/32

Caster in Degrees (Decimal)

2.4

Ride Height in Inches

Caster in Degrees (Fraction)

2 3/32

Caster in Degrees (Decimal)

2.1

Ride Height in Inches

3 1/4

Caster in Degrees (Fraction)

1 51/64

Caster in Degrees (Decimal)

1.8

Ride Height in Inches

3 1/2

Caster in Degrees (Fraction)

1 1/2

Caster in Degrees (Decimal)

1.5

Ride Height in Inches

3 3/4

Caster in Degrees (Fraction)

1 13/64

Caster in Degrees (Decimal)

1.2

Ride Height in Inches

Caster in Degrees (Fraction)

Caster in Degrees (Decimal)

1.0

Ride Height in Inches

4 1/4

Caster in Degrees (Fraction)

45/64

Caster in Degrees (Decimal)

0.7

Ride Height in Inches

4 1/2

Caster in Degrees (Fraction)

1/2

Caster in Degrees (Decimal)

0.5

Ride Height in Inches

4 3/4

Caster in Degrees (Fraction)

13/64

Caster in Degrees (Decimal)

0.2

Ride Height in Inches

Caster in Degrees (Fraction)

-3/32

Caster in Degrees (Decimal)

-0.1

Ride Height in Inches

5 1/4

Caster in Degrees (Fraction)

-19/64

Caster in Degrees (Decimal)

-0.3

Ride Height in Inches

5 1/2

Caster in Degrees (Fraction)

-1/2

Caster in Degrees (Decimal)

-0.5

Ride Height in Inches

5 3/4

Caster in Degrees (Fraction)

-45/64

Caster in Degrees (Decimal)

-0.7

⁽¹⁾	Information not available

WHEEL ALIGNMENT SPECS (S10/15, T10/15, S/T JIMMY, & S/T BLAZER)

Application

Specification

Adjustment Procedures

See Fig 3

Camber in Degrees (Fraction)

13/16 +/- 1/2

Camber in Degrees (Decimal)

0.81 +/- 0.5

Caster in Degrees (Fraction)

2 +/- 1/2

Caster in Degrees (Decimal)

2.0 +/- 0.5

Toe-In in Inches (Fraction)

3/64 +/- 3/32

Toe-In in Inches (Decimal)

0.047 +/- 0.10

Toe-In in Degrees (Fraction)

3/32 +/- 13/64

Toe-In in Degrees (Decimal)

0.094 +/- 0.203

Toe-Out on Turns

⁽¹⁾

Steering Axis Inclination (SAI)

⁽¹⁾

⁽¹⁾	Information not available.

Fig 1: Adjustment Procedures ("C" & "K")

Courtesy of GENERAL MOTORS

Fig 2: Adjustment Procedures ("G", "P", "R/V", "S", Safari, Astro)

Courtesy of GENERAL MOTORS

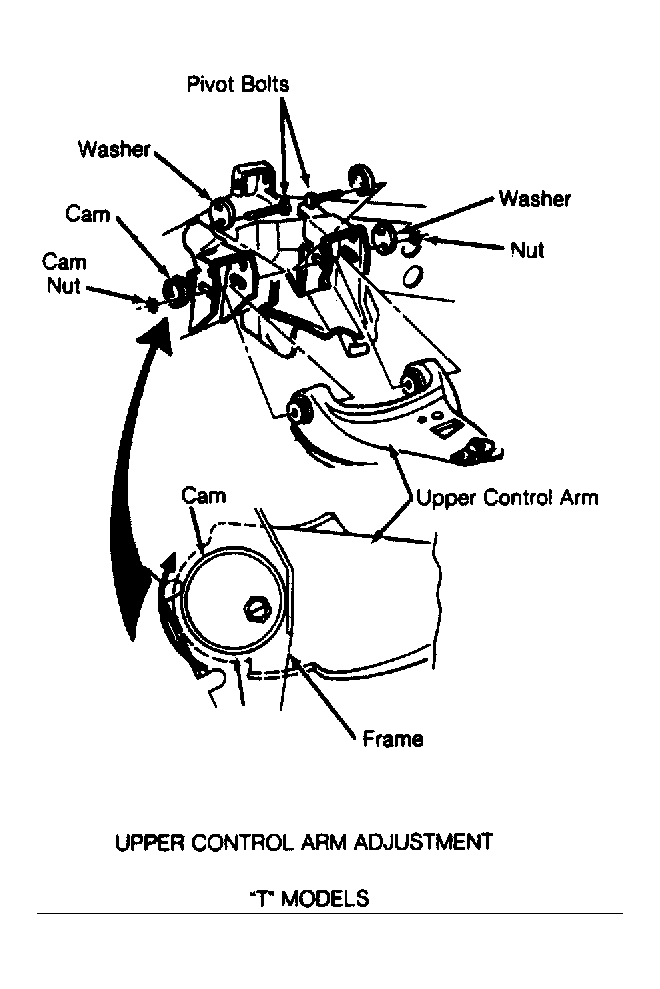

Fig 3: Adjustment Procedures ("T")

Courtesy of GENERAL MOTORS
