Throttle Position Sensor: Locations

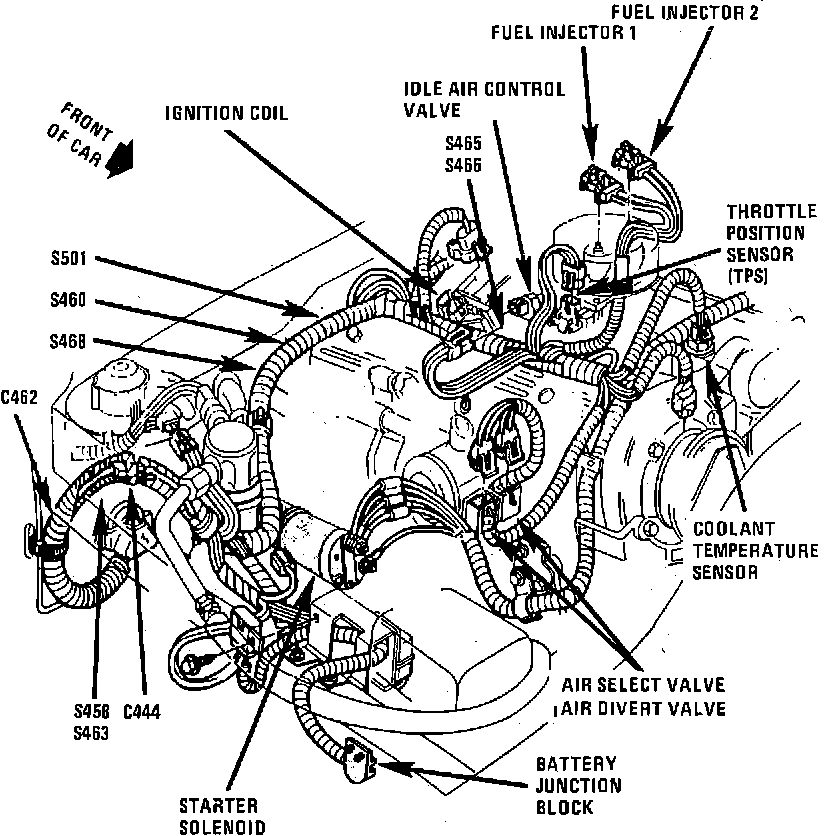

RH Side Of Engine.:




Top Of Engine

Applicable to: Caprice & Safari w/V6-262/4.3L TBI
