System Specifications

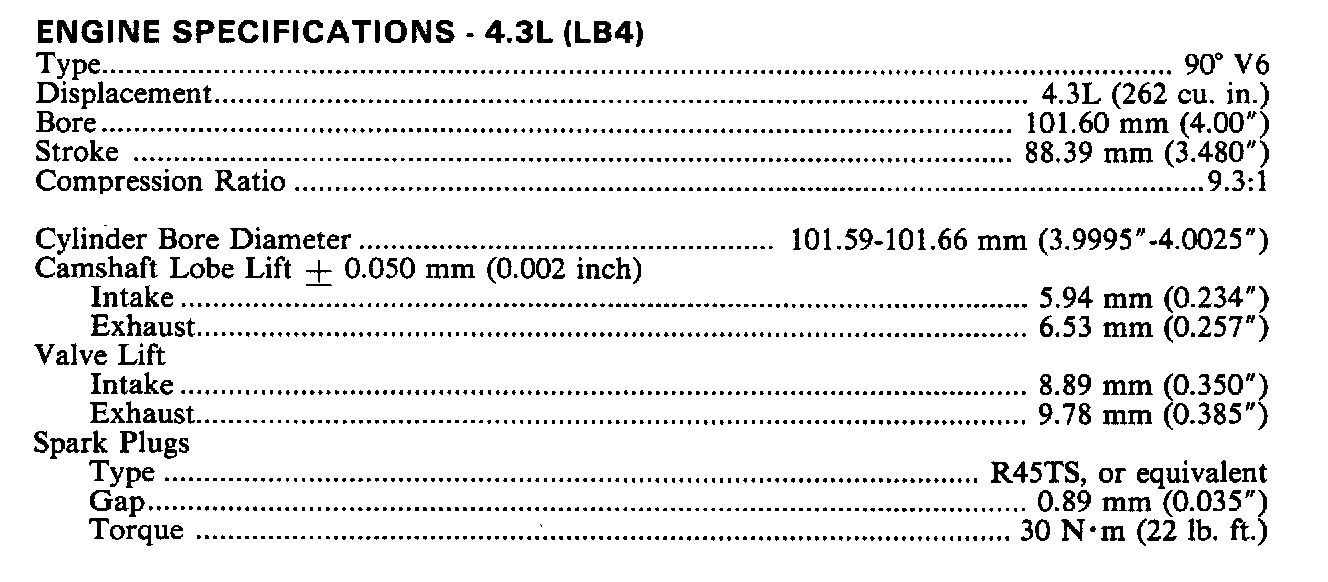

Engine Specifications:





Intake Manifold Torque Sequence:

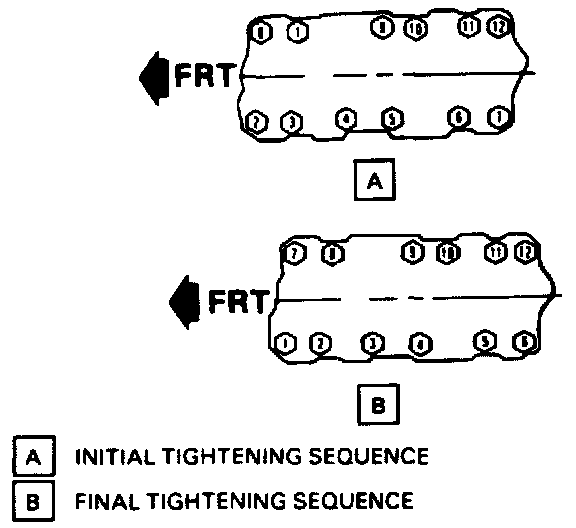

Cylinder Head Torque Sequence:
