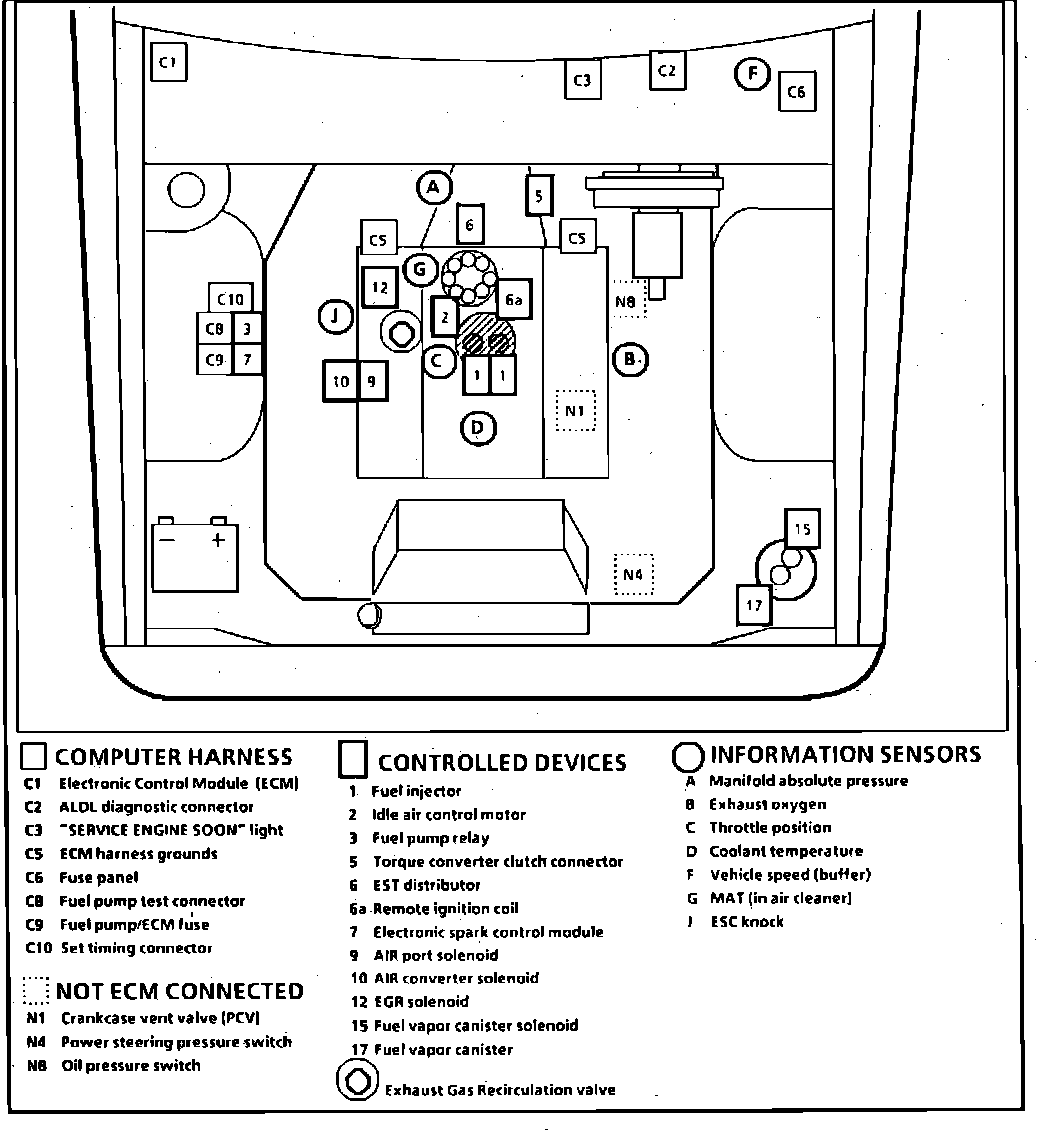

Electronic Control Module (ECM)

Engine & Underhood Components.:




Behind RH Side Of I/P

Applicable to: Models w/V8-305/5.0L & V8-350/5.7L TBI, Except Brougham
