System Specifications

Engine Specifications:

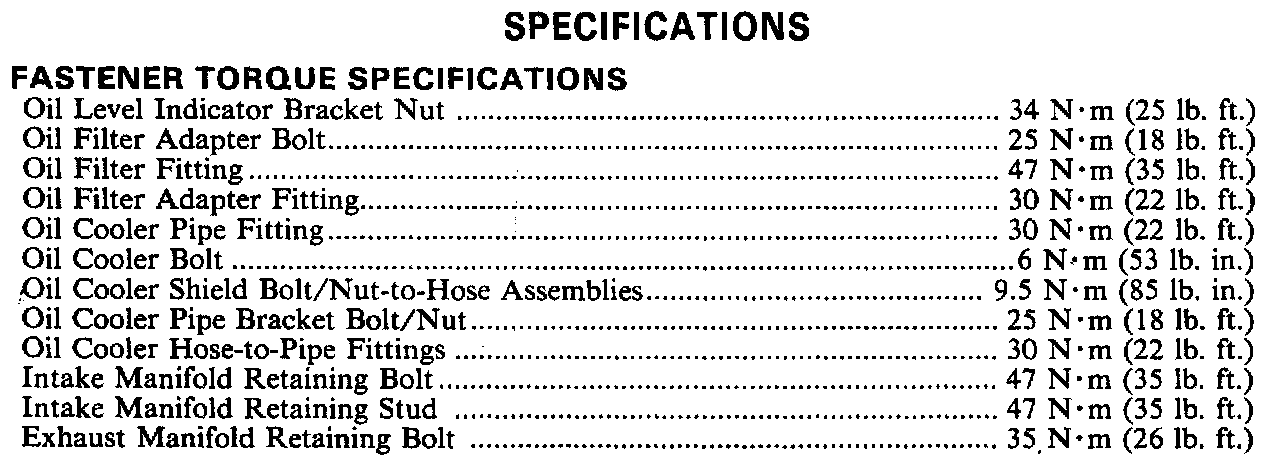

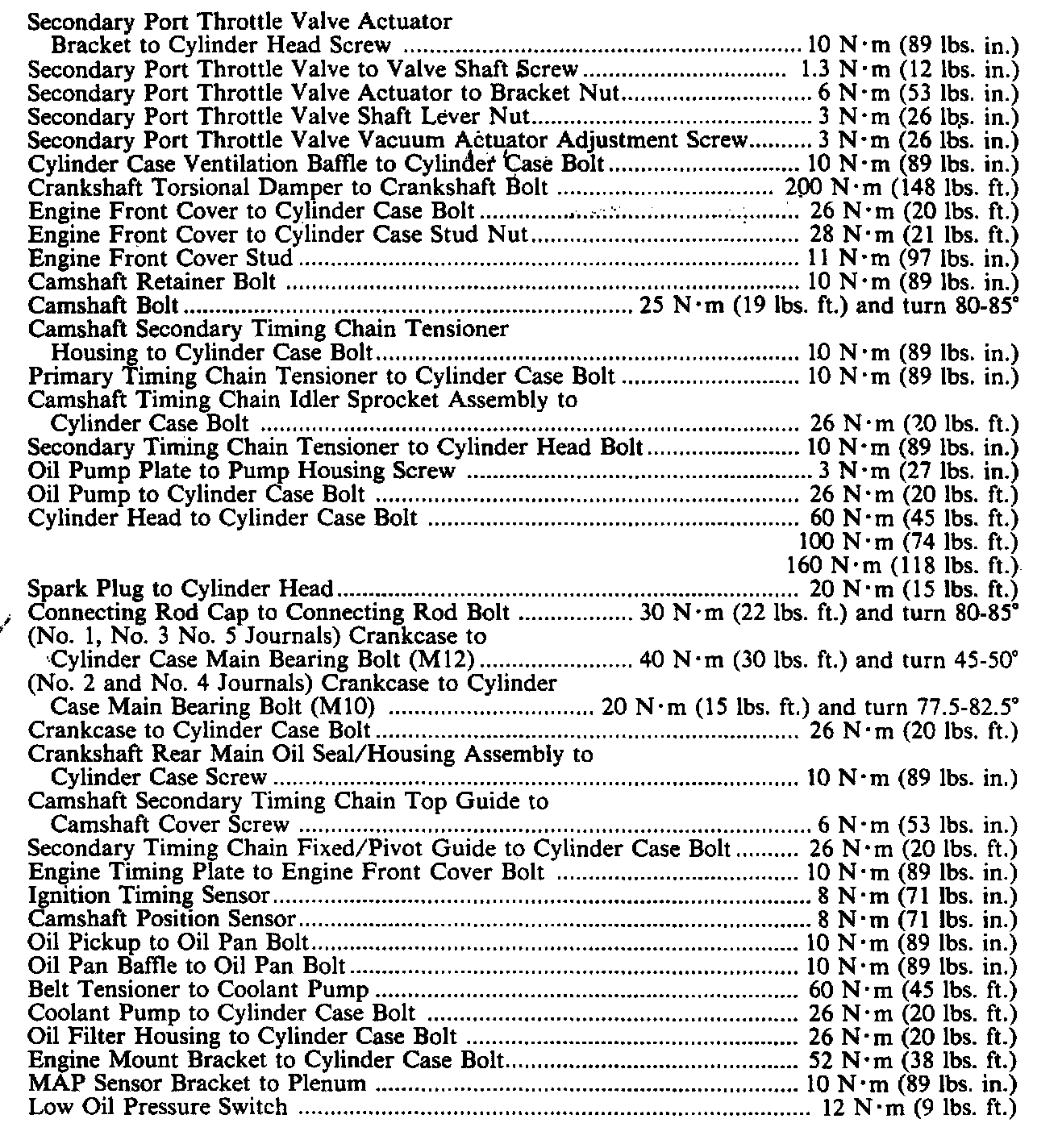

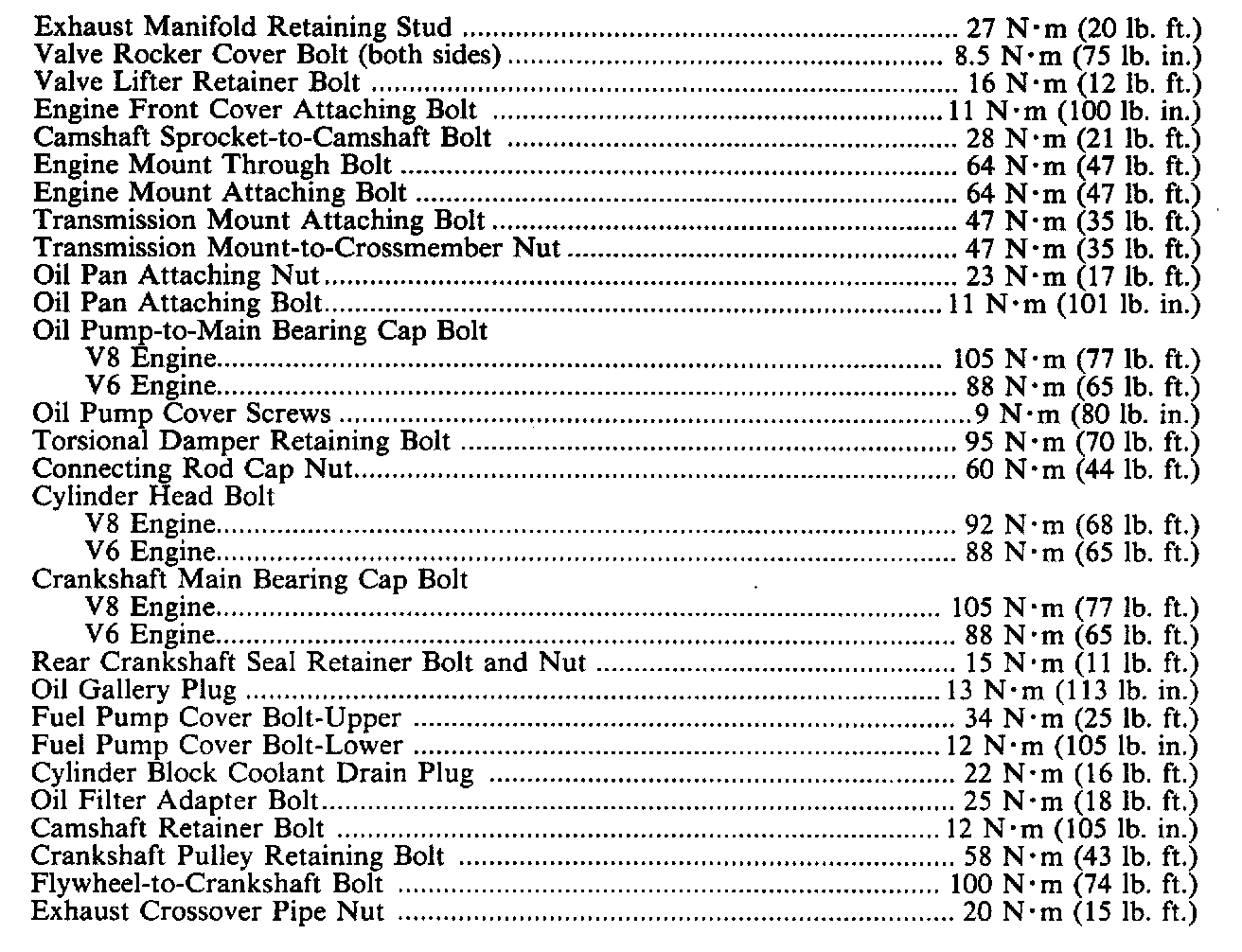

Torque Specifications 5.7L (LT5):

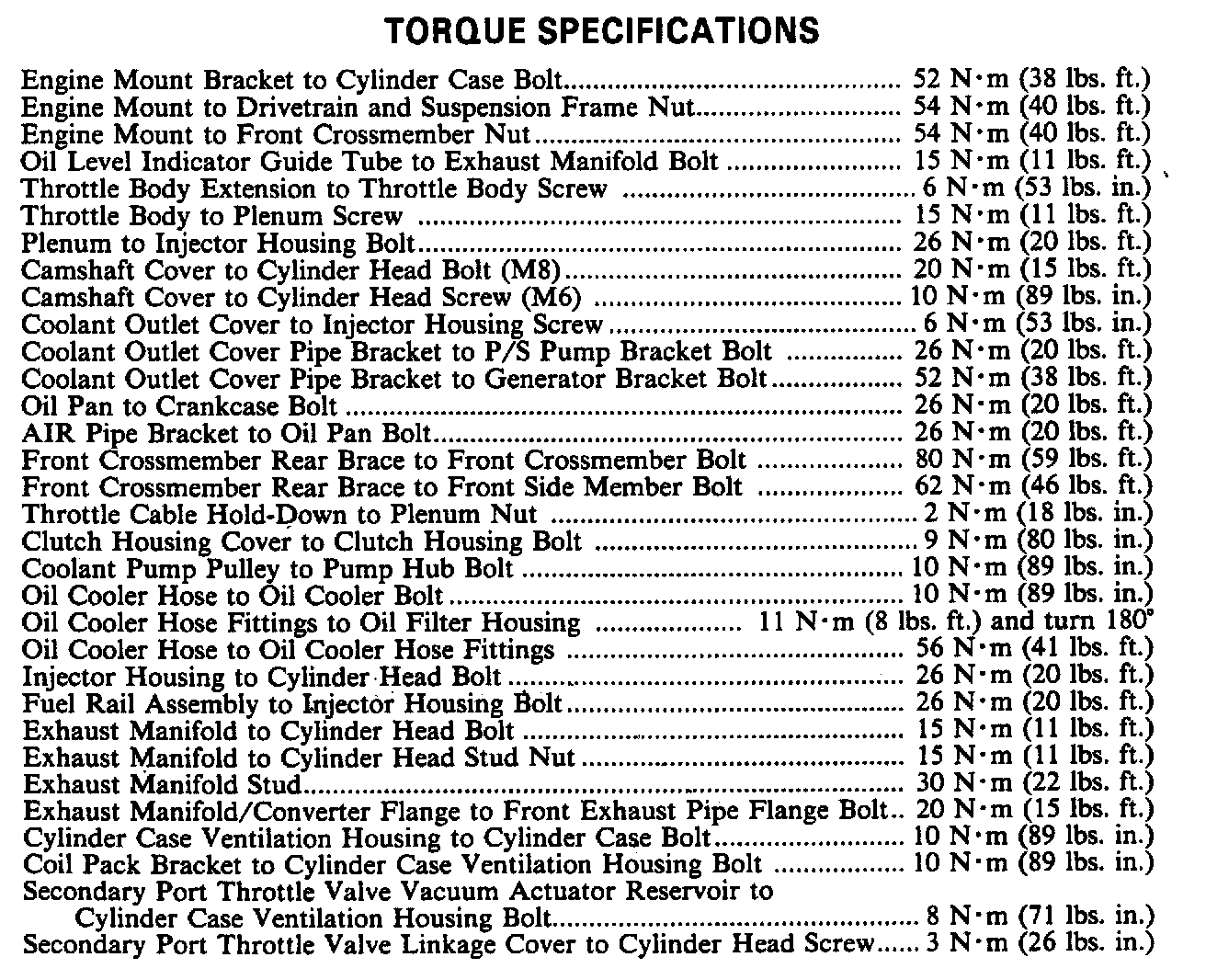

Torque Specifications 7.7L (LT5):

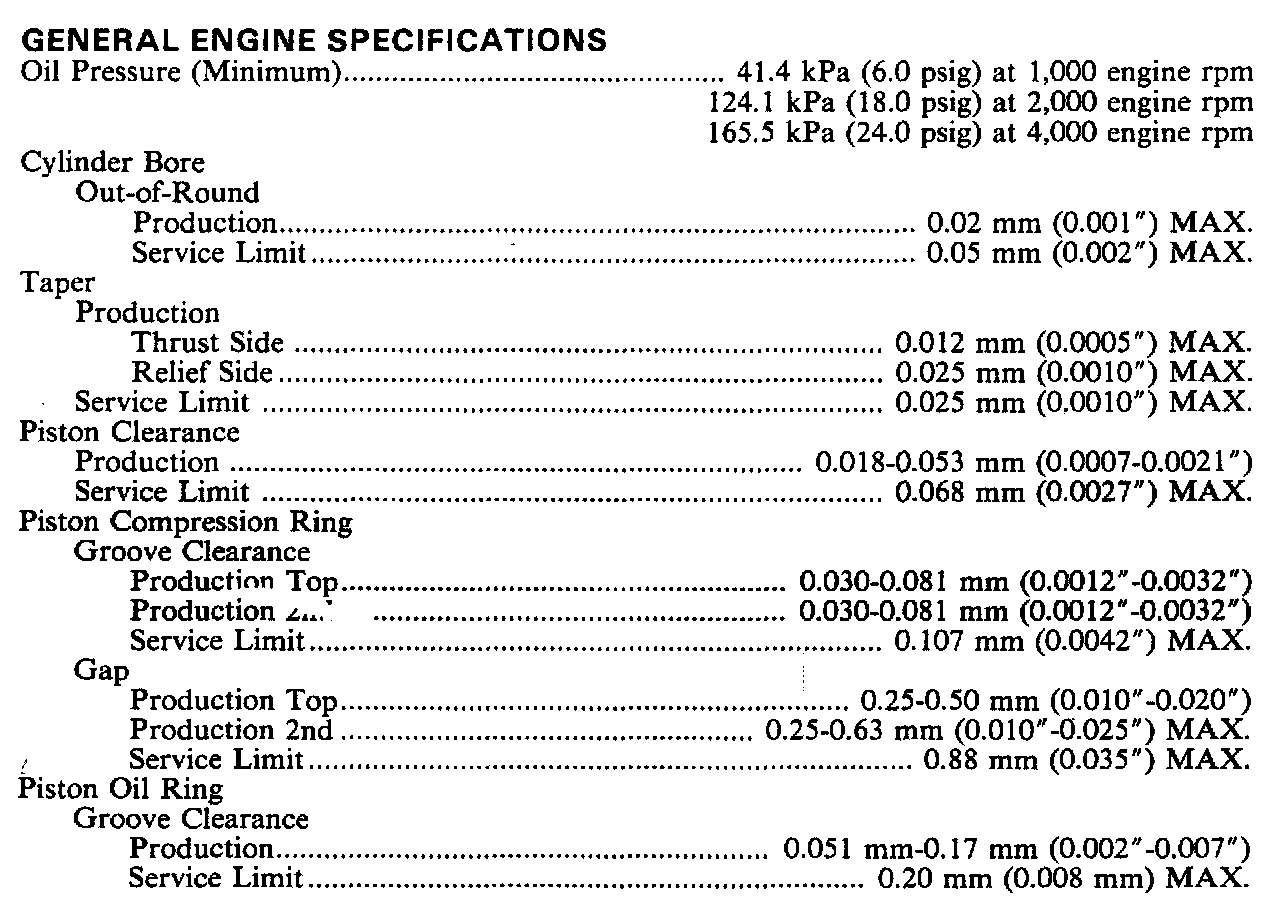

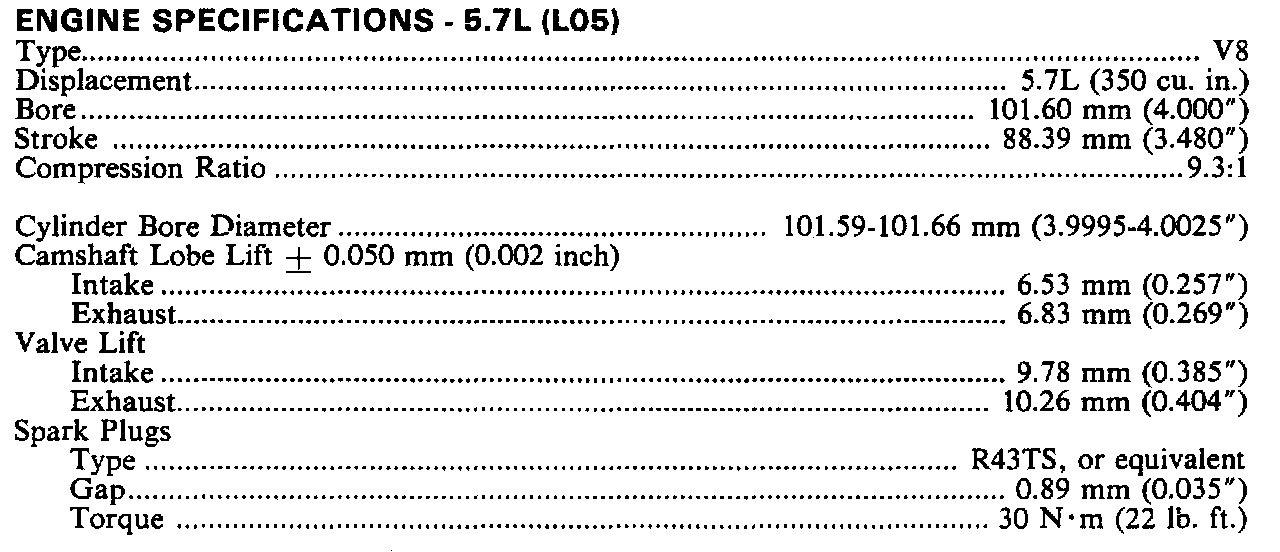

Engine Specifications:

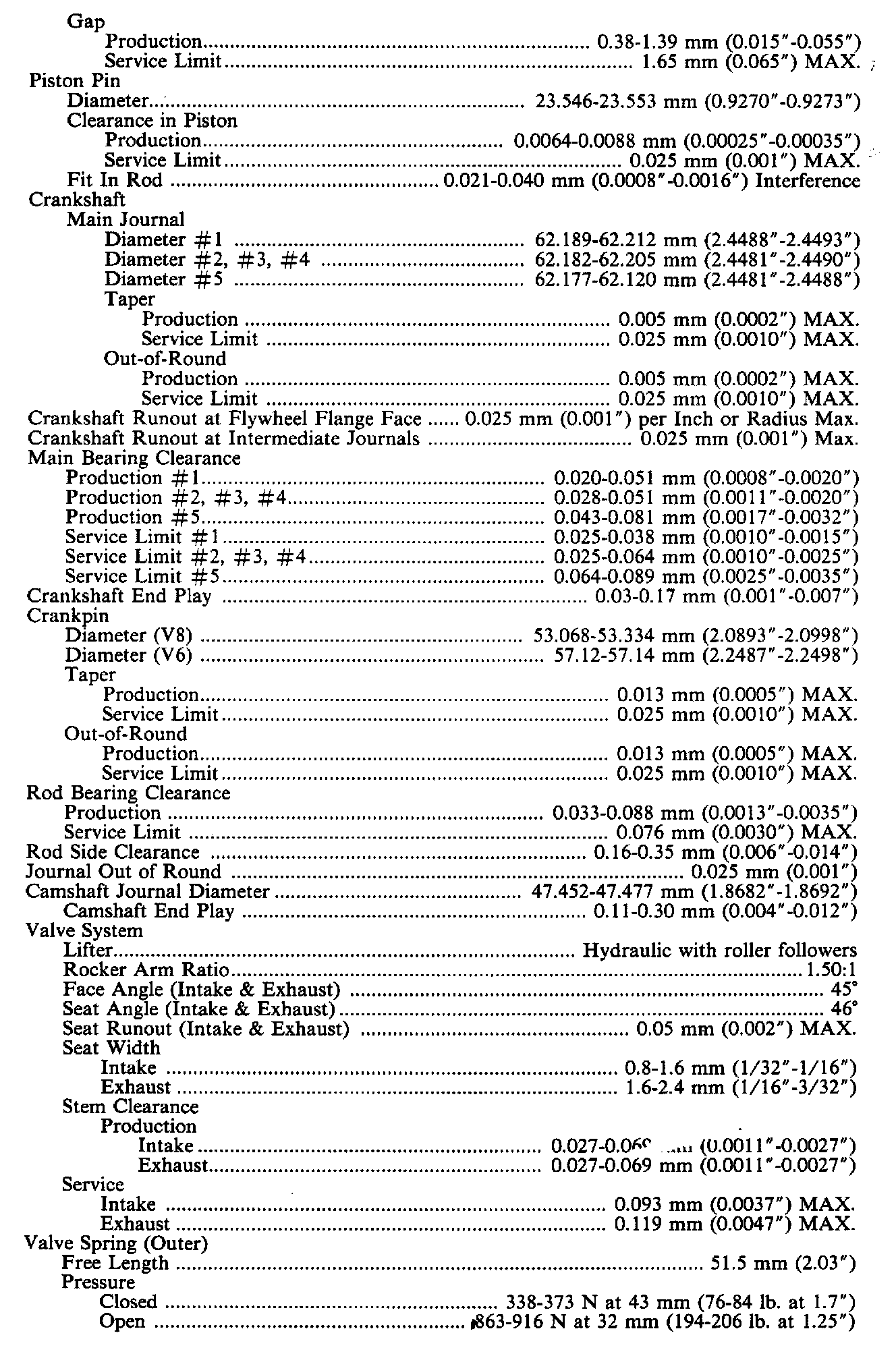

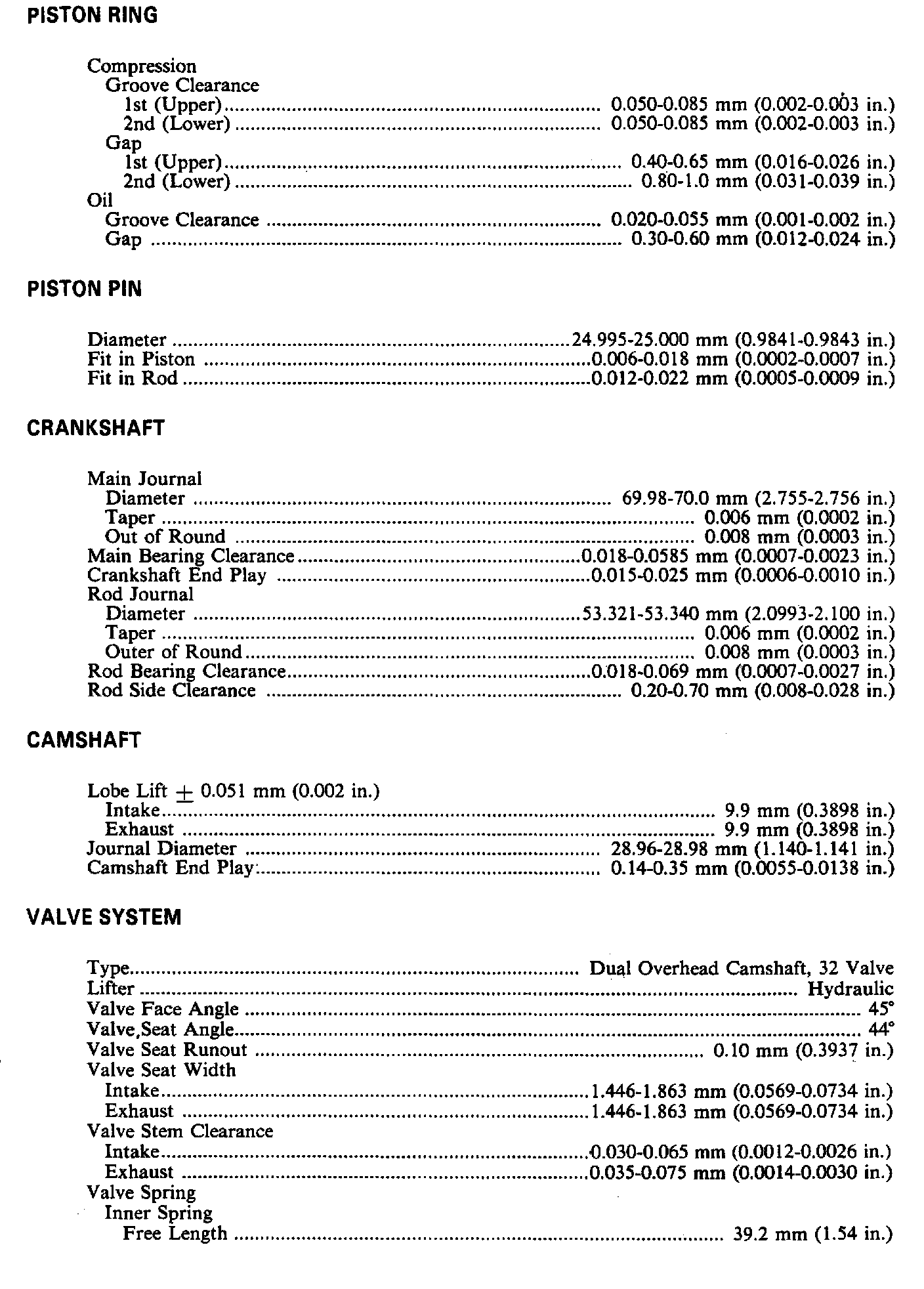

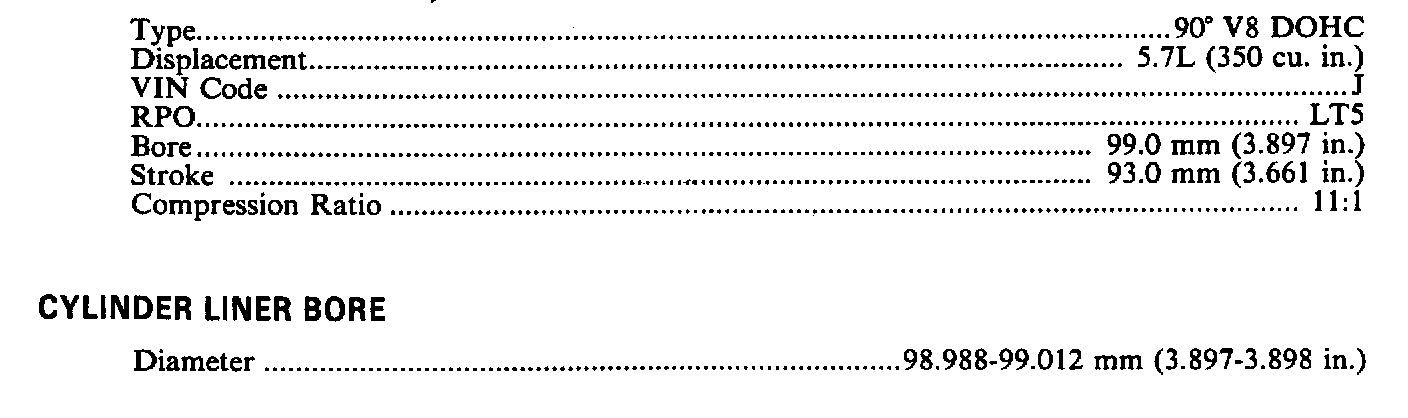

Engine Specifications 5.7L (LT5):

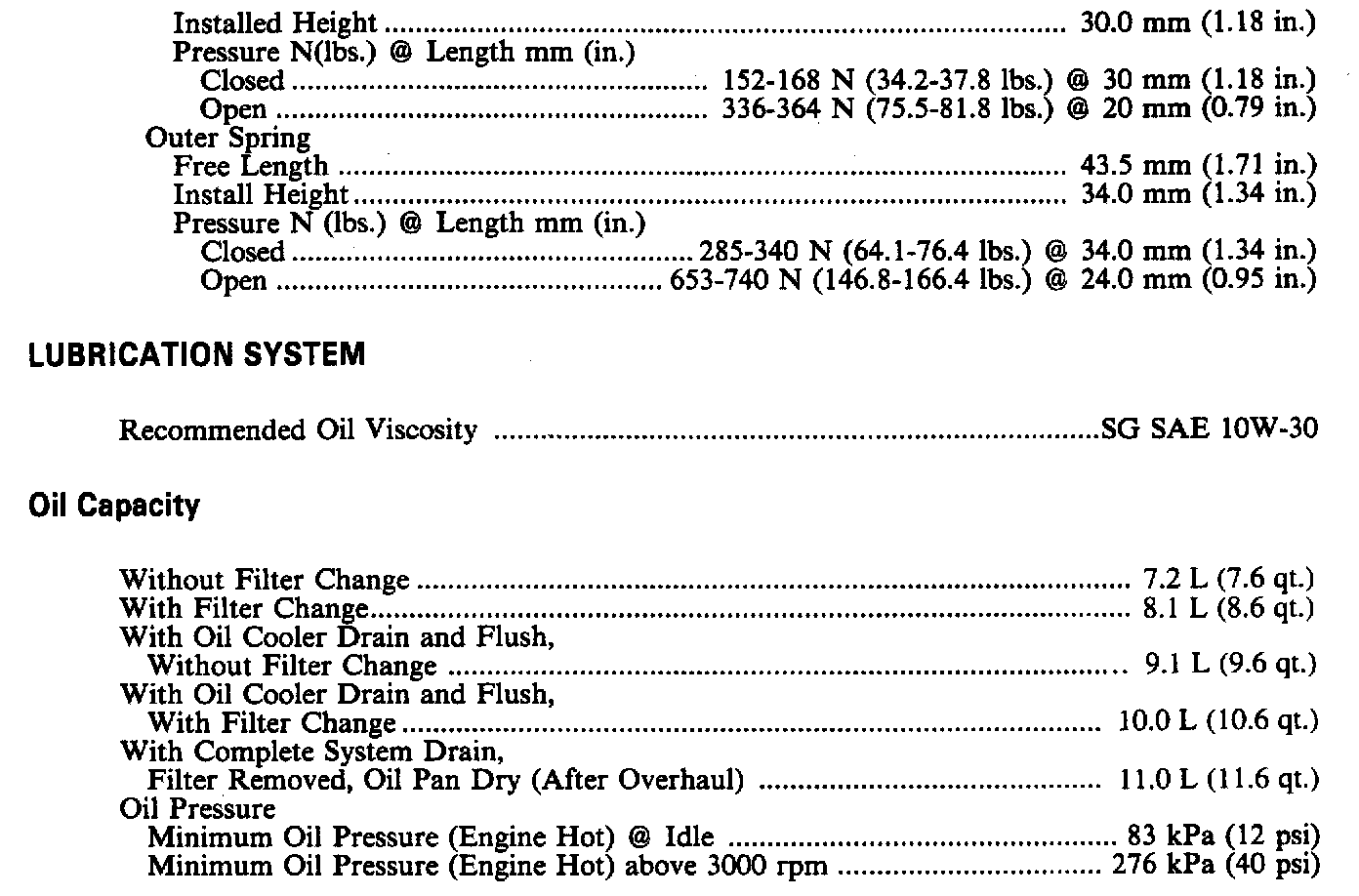

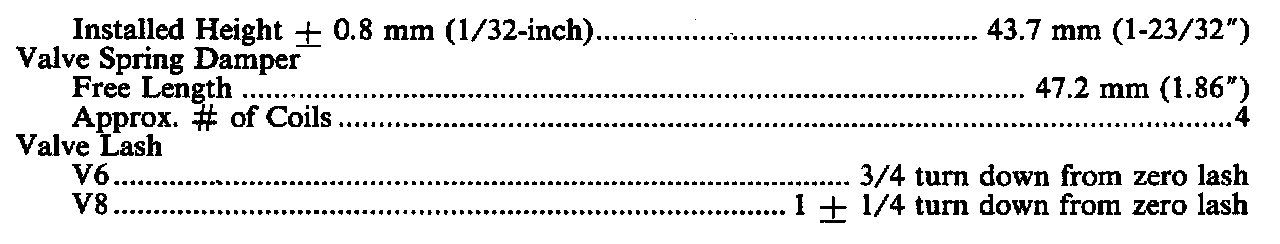

Engine Specifications 5.7L (LT5):

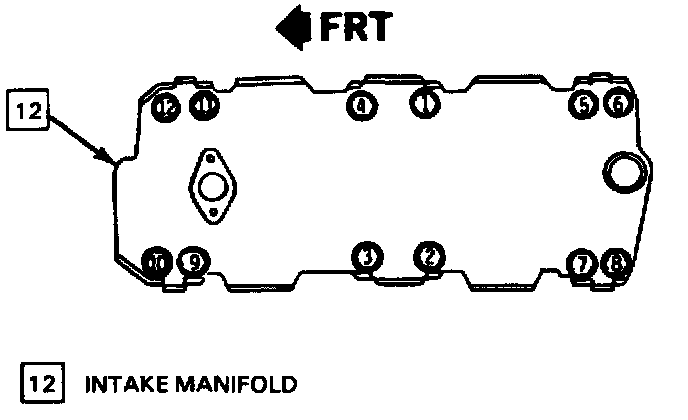

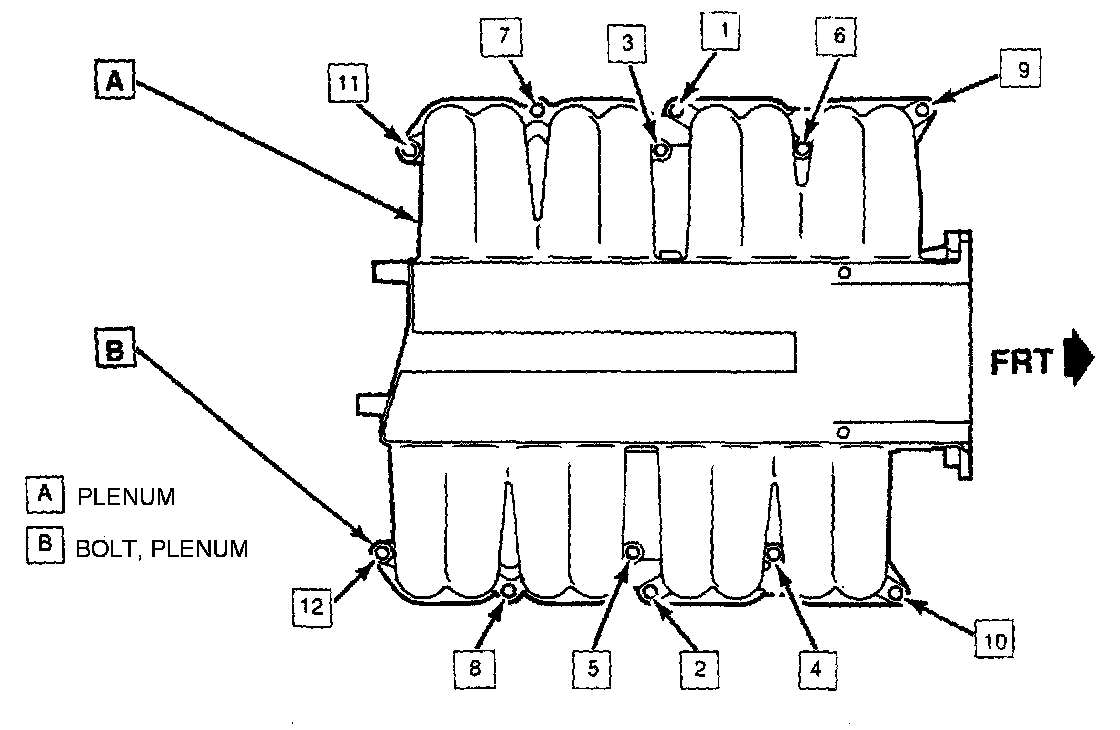

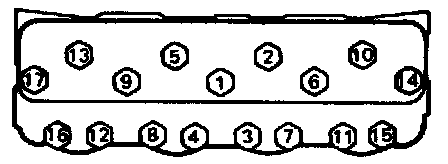

Intake Manifold Torque Sequence 5.7L (LT5):

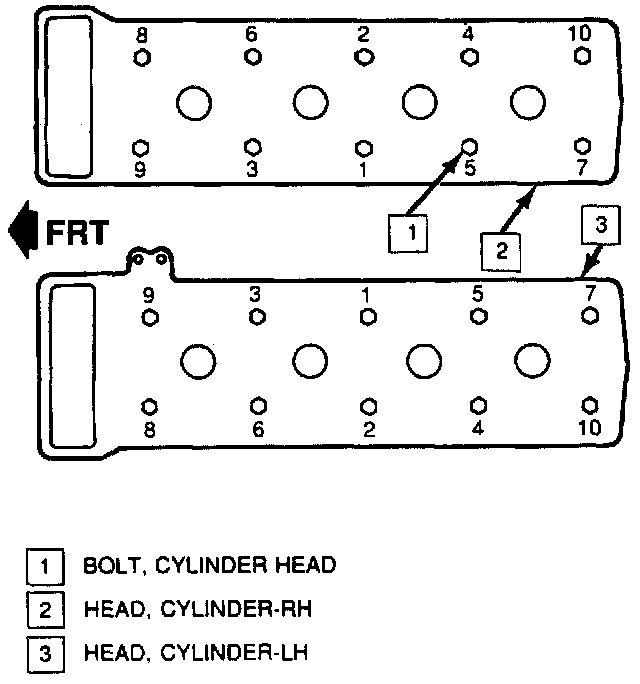

Cylinder Head Torque Sequence 5.7L (LT5):
