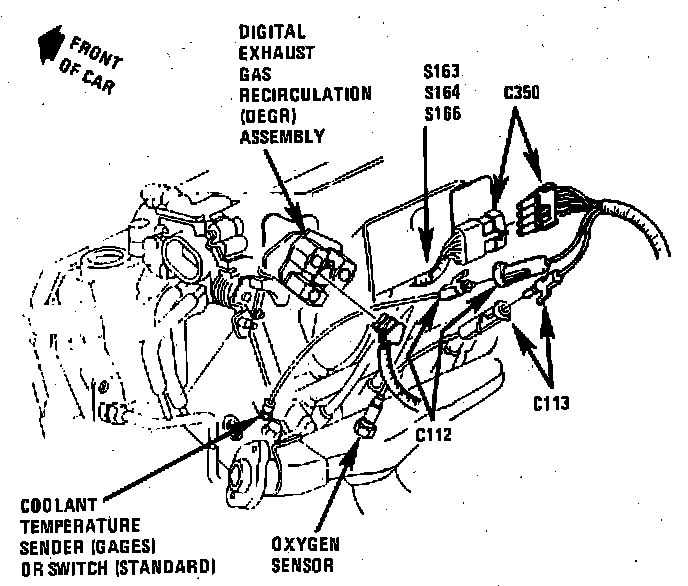

Digital Exhaust Gas Recirculation Assembly
Rear Of Engine.:
Top LH Rear Corner Of Engine
Applicable to: V6-189/3.1L
