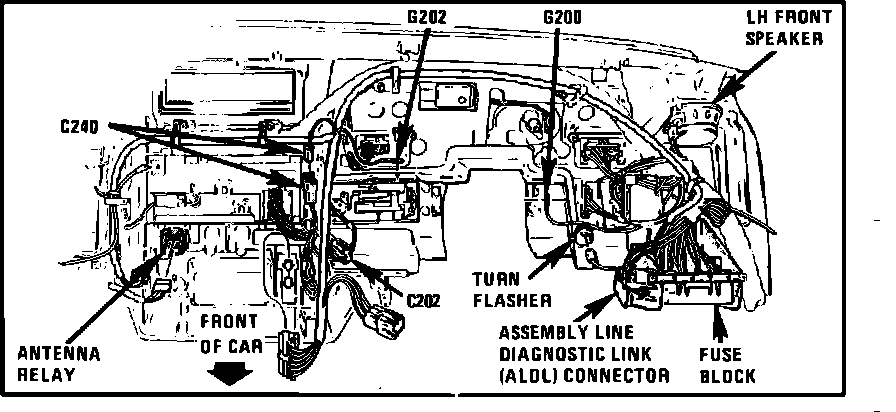

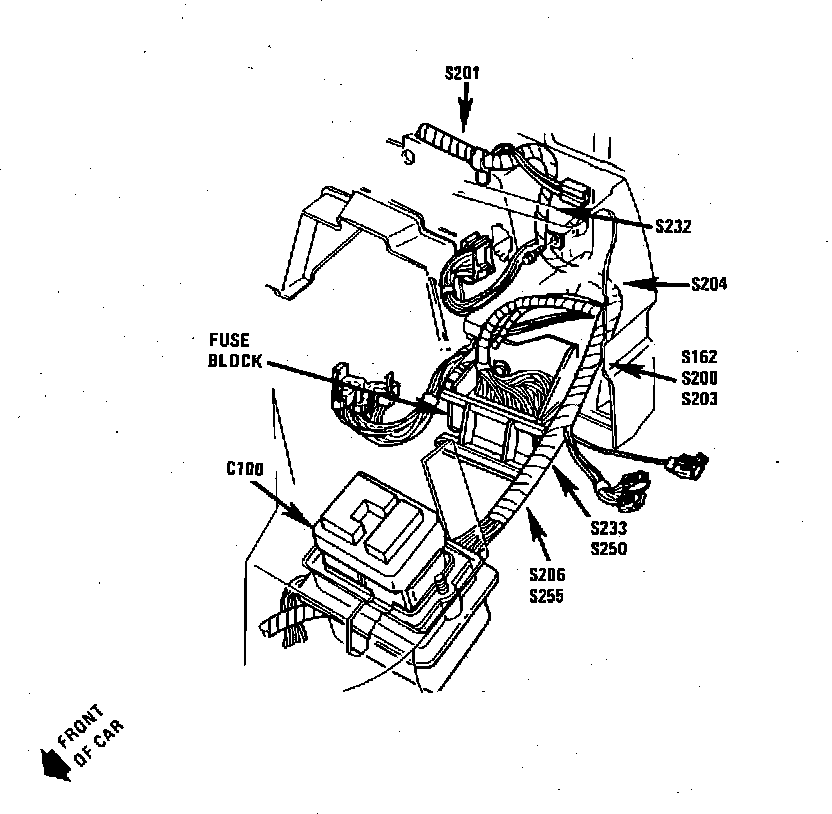

Fuse Block

Behind LH Side Of I/P.:

Behind LH Side Of I/P

Applicable to: Skyhawk

LH Corner Of I/P.:

Behind LH Side Of I/P

Applicable to: Cavalier

Behind Instrument Cluster.:

Behind LH Side Of I/P

Applicable to: Sunbird

Engine Compartment Component Locations.:

Behind LH Side Of I/P

Applicable to: Cavalier w/4-134/2.2L Engine

Engine Compartment Component Locations.:

Behind LH Side Of I/P

Applicable to: Cavalier w/V6-189/3.1L Engine

Engine Compartment Component Locations.:

Behind LH Side Of I/P

Applicable to: Skyhawk w/4-121/2.0L Engines

Engine Compartment Component Locations.:

Behind LH Side Of I/P

Applicable to: Sunbird w/4-121/2.0L Engine
